Short answer

For machine-vise milling support, the listings range from 18-Piece Parallel Leveling Blocks with Wooden Case at 100x4 High to 18 Pieces Parallel-Height Steel Block at 150x4 High, so the right fit depends on your vise width and the lift you need under the work. Before ordering, measure your vise jaw width, the clear space between the jaws, and the support height needed to raise the part while keeping enough jaw contact.

How to choose the right parallel size

Parallel blocks fit a machine vise when their length suits the jaw width and their height gives enough lift without pushing the work above safe clamping support. For milling and setup work, the first check is not the set count but the size option in the listing, because that determines whether the blocks will sit well in the vise and still leave enough jaw contact on the part.

The shortest option shown is 18-Piece Parallel Leveling Blocks with Wooden Case, listed as 18 PC 100x4 High. If your vise or setup fixture has limited room, a shorter block can be easier to place and less likely to interfere with stops, clamps, or cutter access.

A mid-length option is 12-Piece Parallel Block Set, listed as 12 PC 125x4 High. That can make sense when you want more support length than a short set provides without stepping up to the longer format used in several other listings.

Several sets use a longer format, including 18 Pieces Parallel-Height Steel Block at 18 PC 150x4 High and 20-Piece 0.005 mm Precision Parallel Set at 20 PC 150x8 High. A longer block generally suits wider vises and larger workpieces because it gives support over more of the jaw span, but you still need to confirm that the block length does not crowd the setup.

Height matters just as much as length. The listings show choices such as 18 Pieces Parallel-Height Steel Block at 150x4 High, 20-Piece 0.005 mm Precision Parallel Set at 150x8 High, and Parallel Gauge Block Set 24 Pieces at 24-pc 150x10, so choose the range that supports the work above the vise floor while keeping enough material gripped by the jaws.

Fit and size check

12-Piece Parallel Block Set: option listed as 12 PC 125x4 High; material is quenched and hardened alloy steel; intended for bench vises, milling machine vises, and machining setups; includes engraved size markings and a wooden storage case.
18-Piece Parallel Leveling Blocks with Wooden Case: option listed as 18 PC 100x4 High; material is alloy steel with quenched and hardened finish; intended for bench vises, milling machines, and similar fixtures; includes engraved markings and a wooden storage case.
18 Pieces Parallel-Height Steel Block: option listed as 18 PC 150x4 High; material is quenched and hardened alloy steel; intended for machine vises, milling machines, and precision workholding setups; includes clear identification markings and a wooden storage case.
20-Piece 0.005 mm Precision Parallel Set: option listed as 20 PC 150x8 High; material is hardened alloy steel; intended for milling machines, bench vises, and workholding setups; includes flat support faces and markings, case not listed.

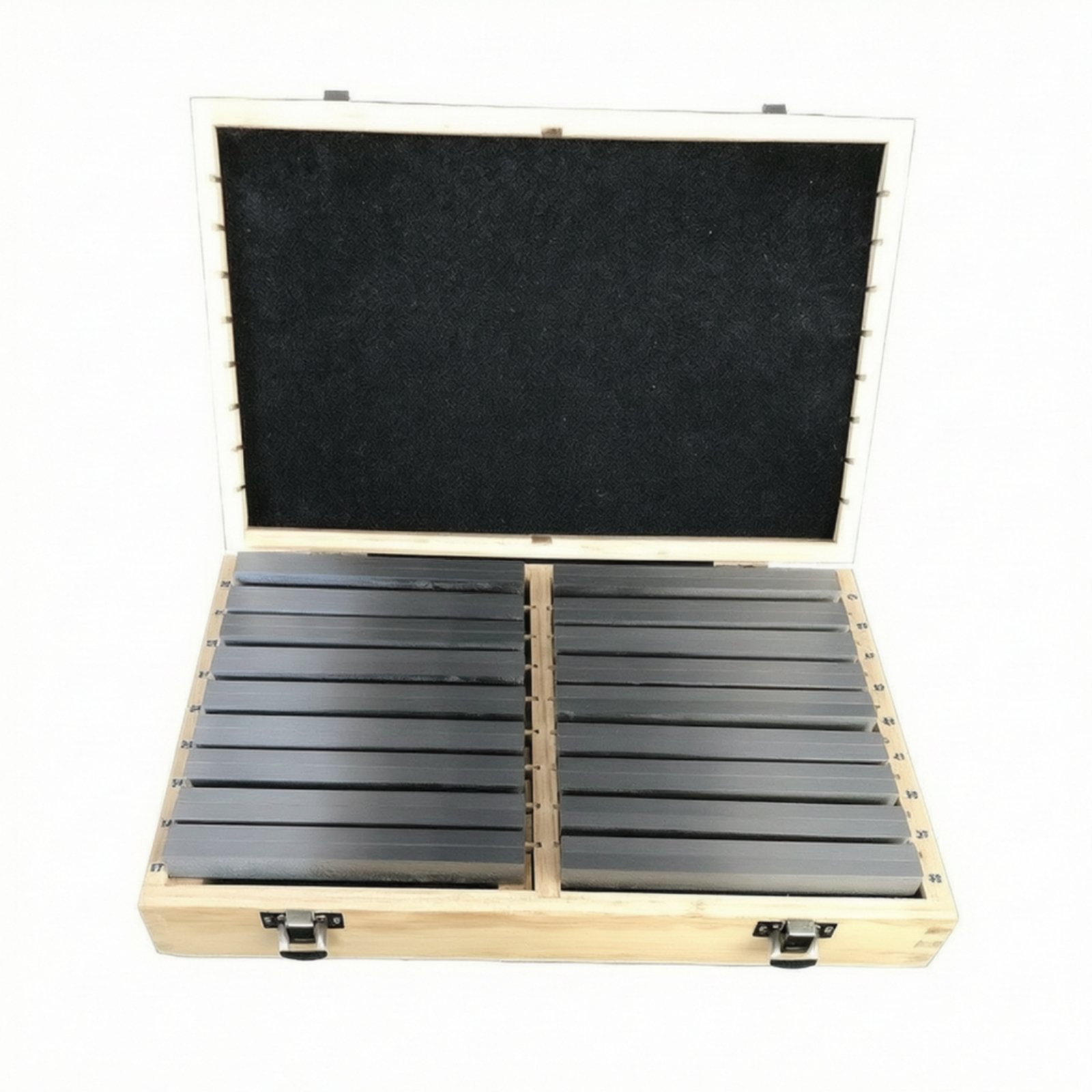

36 Pieces Precision Parallel Block Ground: option listed as 36-pc 150x8 Even; hardened construction is listed, with HRC52 and ground working surfaces; intended for milling and vise setup work; includes engraved markings and a wooden case.

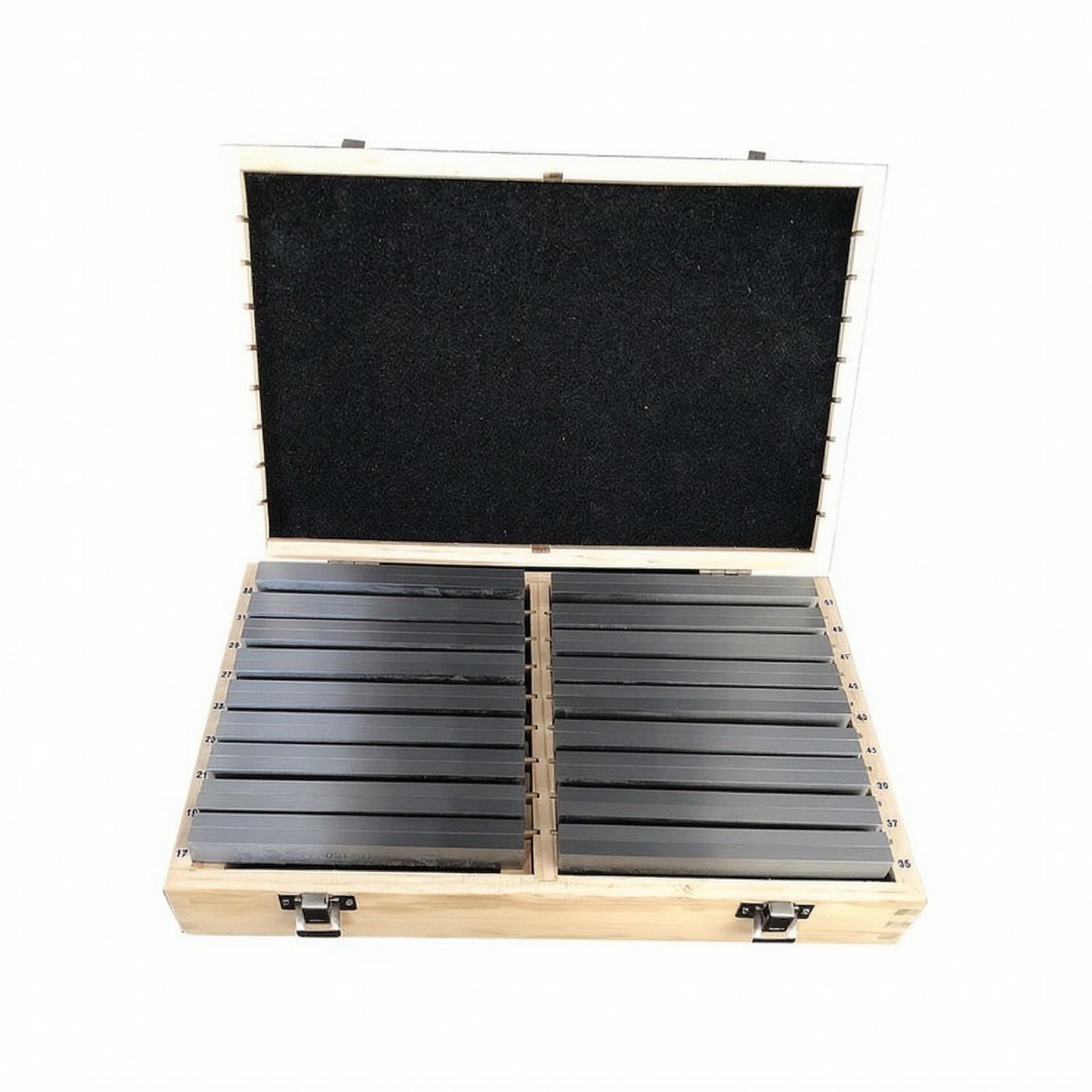

36 Pieces Parallel Block Wooden Case: option listed as 36 PC 150x8 Even; material is alloy steel with quenched and hardened finish; intended for machine vises and milling work; includes engraved markings and a wooden storage case.
Parallel Gauge Block Set 24 Pieces: option listed as 24-pc 150x10; hardened metal construction is listed, with HRC52; intended for setup, layout, inspection, calibration, and bench work rather than specifically vise support; includes a wooden case.
24 Pairs Parallel Block Set 50-60 Hardness: option listed as 24 PAIR 150 Long; material is hardened alloy steel with claimed hardness 50-60; intended for machine vises and milling machine setups; includes engraved size markings, but the listing does not state the height.

The main fit question is whether you need 18-Piece Parallel Leveling Blocks with Wooden Case at 100x4 High, 12-Piece Parallel Block Set at 125x4 High, or one of the 150-long listings such as 18 Pieces Parallel-Height Steel Block. 24 Pairs Parallel Block Set 50-60 Hardness is a 24 PAIR 150 Long set and can be useful when you want matched supports, but because its height is not stated in the listing, it is not the safest choice if you need an exact quoted height before ordering.

How the pieces work together in a vise setup

Parallel blocks are used in matched support positions so the work sits level and raised above the vise bed. That lets you clamp on the sides of the part while keeping the bottom clear for cutter travel, chips, and repeatable positioning.

For routine milling, a basic support set such as 18 Pieces Parallel-Height Steel Block or 18-Piece Parallel Leveling Blocks with Wooden Case is usually selected by matching block length to the vise and matching height to the amount of lift you need. If you run many part sizes, a broader assortment like 20-Piece 0.005 mm Precision Parallel Set or 36 Pieces Parallel Block Wooden Case gives more choices without changing your setup method.

Accuracy matters because both blocks need equal height and good parallelism to prevent rocking. Listings such as 12-Piece Parallel Block Set, 20-Piece 0.005 mm Precision Parallel Set, and 36 Pieces Parallel Block Wooden Case state precision below 0.005 mm, which is the kind of information you want for repeatable setup work.

Common mistakes to avoid

Do not choose only by set count. 36 Pieces Precision Parallel Block Ground is listed as 36-pc 150x8 Even, 12-Piece Parallel Block Set is listed as 12 PC 125x4 High, and 18-Piece Parallel Leveling Blocks with Wooden Case is listed as 18 PC 100x4 High, but the fit still comes down to length and height for your vise and work.

Do not assume every set is aimed at vise support. Parallel Gauge Block Set 24 Pieces is described more as a gauge block set for setup, layout, inspection, and calibration, so while it may be useful in a shop, it is not the clearest pick when your goal is routine machine-vise workholding.

Do not assume pairs and pieces mean the same thing. 24 Pairs Parallel Block Set 50-60 Hardness is sold as 24 PAIR 150 Long, which suggests matched supports, while other listings are counted as pieces.

Do not ignore missing dimensions. The listing for 24 Pairs Parallel Block Set 50-60 Hardness gives 150 Long but does not state the height, so you should verify that detail before buying if your setup depends on a specific support height.

A typical kit

18-Piece Parallel Leveling Blocks with Wooden CaseShorter 100x4 High parallels for smaller vises or setups where a long block would take up too much room.
12-Piece Parallel Block SetA 12 PC 125x4 High set for shoppers who want a mid-length option for general vise support.
18 Pieces Parallel-Height Steel BlockA straightforward 18 PC 150x4 High machine-vise set for longer jaw spans and general milling support.
20-Piece 0.005 mm Precision Parallel SetA 20 PC 150x8 High set for jobs that need more lift above the vise floor while staying in a vise-focused product type.
36 Pieces Parallel Block Wooden CaseA larger 36 PC 150x8 Even assortment for shops that want more size options and a wooden case for regular setup work.
24 Pairs Parallel Block Set 50-60 HardnessA 24 PAIR 150 Long set for users who specifically want paired supports, but the listing should be checked for the missing height detail.

Questions people ask

Which set size is the safest default for a typical milling vise?

A common starting point is one of the longer vise-oriented sets, because several listings target machine vises directly, such as 18 Pieces Parallel-Height Steel Block and 20-Piece 0.005 mm Precision Parallel Set. But the safest default is still the set whose listed length fits your jaw width and whose height leaves enough clamping depth on your part.

What is the difference between [[DCD-10001504378]] and a pieces-count set?

24 Pairs Parallel Block Set 50-60 Hardness is counted as 24 PAIR 150 Long, which is useful when you want matched left-right supports. A pieces-count listing gives the total number of individual blocks instead, so you should read the count style carefully and also verify any missing height detail before ordering.

Can I use gauge blocks instead of vise parallels?

Only with care. Parallel Gauge Block Set 24 Pieces is described mainly for setup, layout, inspection, calibration, and bench work, so it is not the clearest choice for routine machine-vise support compared with the listings that explicitly say machine vise or milling setup.

How do I know whether I need 4 High, 8 High, or 10?

Measure how far you need to lift the work above the vise bed, then check how much of the work will still remain inside the jaws for secure clamping. Listings such as 18 Pieces Parallel-Height Steel Block at 150x4 High, 20-Piece 0.005 mm Precision Parallel Set at 150x8 High, and Parallel Gauge Block Set 24 Pieces at 24-pc 150x10 show how the options differ.

Do more pieces mean better accuracy?

No. Accuracy comes from the listed precision and the quality of the working faces, not from having more blocks in the box. For example, 12-Piece Parallel Block Set, 20-Piece 0.005 mm Precision Parallel Set, and 36 Pieces Parallel Block Wooden Case all state precision below 0.005 mm, while the larger count mainly gives you more setup choices.
