How to set up a safer soldering bench with fume extraction

Start with source capture and a stable work zone

The biggest safety upgrade is local fume capture. Instead of letting smoke rise through your breathing zone, place an extractor inlet close to the joint so it pulls fumes away as they are created. A flexible arm such as Flexible Fume Extractor Arm High Temperature Resistant is useful because the hose is listed as 1 m with a 100 mm inside diameter, and its 360-degree positioning helps you aim suction exactly where solder smoke appears.

If you already have a ventilation setup and mainly need a movable pickup point, Bamboo-Joint Fume Extractor is the simpler piece to look at. Its articulated bamboo-joint design is meant to stay in position and collect contaminants at the point of origin, which is what matters most on a soldering bench.

Once fumes are addressed, build the bench around a non-slip, heat-tolerant work surface. Heat-Resistant Soldering Mat is a practical choice for electronics because it is a silicone mat with compartments and numbered recesses that help keep screws, tips, and small parts from wandering into the hot area. For work that concentrates heat in one small spot, especially around metal parts, Heat-Resistant Soldering Board gives you a separate non-flammable board you can place under the job.

Choose holders that match what you actually solder

A safer bench is not just about extraction; it is also about reducing the need to hold parts by hand. For circuit boards and small assemblies, Adjustable Circuit Board Holder gives you a weighted base and gooseneck arms listed at 20 cm long, with insulated clip tips that are better for delicate parts than bare jaws. That lets you set the angle once and keep fingers away from hot joints.

If your projects vary between boards, connectors, and loose leads, a broader helping-hand fixture can be more useful. Soldering Fixture with Articulated Arms has four articulated arms on a perforated base, so you can secure a board with one arm, a wire with another, and still leave room to route the extractor nozzle close to the work.

For wire splicing, tinning, or connector repairs, use a holder made for wire rather than forcing a board clamp to do everything. Wire Soldering Fixture has adjustable clamps that slide along a track, which makes it easier to support two wire ends in line and avoid sudden movement when solder wets the joint.

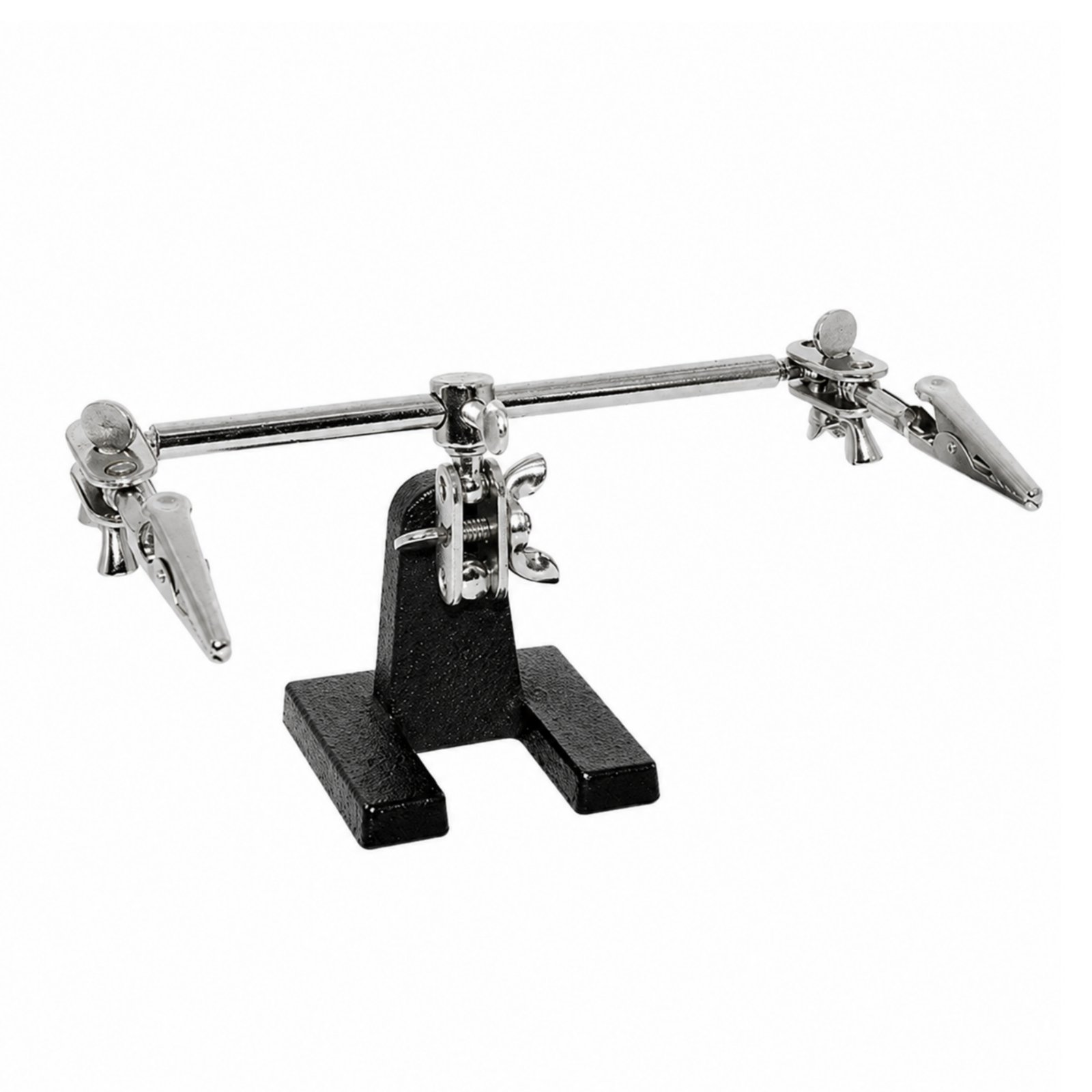

If you mainly repair small boards and want a compact dedicated PCB stand, PCB Holder Clamp is built for that job. Its rotating, multidirectional adjustment helps you tip the board to a comfortable angle so the iron, solder, and extractor can all approach the joint without fighting each other.

How the pieces work together on the bench

Think of the setup as a small triangle around the joint: the holder fixes the work, the heat-safe surface protects the bench, and the extractor captures the smoke. Put the workpiece near the front half of the bench where your forearms can rest comfortably, then place the suction inlet just off to the side of the solder joint so it draws fumes away without blocking your view.

A practical electronics layout is Heat-Resistant Soldering Mat as the main mat, Soldering Fixture with Articulated Arms or Adjustable Circuit Board Holder on top of it for positioning, and Flexible Fume Extractor Arm High Temperature Resistant aimed at the exact solder point. That combination keeps hot debris off the table, stabilizes the work, and moves smoke away before it spreads.

For wire-heavy jobs, swap in Wire Soldering Fixture as the primary holder and keep the extractor close to the stripped ends being soldered. For tiny PCB touch-up, PCB Holder Clamp can replace a larger helping-hand fixture because its rotating clamp arrangement is easier to position around a small board footprint.

When your project includes parts that retain heat or you are doing more torch-like or metal-focused work, add Heat-Resistant Soldering Board as a dedicated hot zone inside the larger bench area. The separate board helps isolate the hottest work from tools, sleeves, and parts trays.

Common mistakes to avoid

Do not put the extractor too far away. If the inlet is only clearing the room in a general sense, you will still breathe the plume that rises past your face before it is captured. The whole point of Flexible Fume Extractor Arm High Temperature Resistant and Bamboo-Joint Fume Extractor is close source capture, not distant room ventilation.

Do not rely on one holder for every task. Board clips can twist wire, and wire holders may not support a populated board well enough to keep it level. Matching the job to Wire Soldering Fixture, Adjustable Circuit Board Holder, or PCB Holder Clamp reduces slipping, which is a common cause of accidental iron contact.

Do not leave hot work directly on an unprotected tabletop. Even when the bench seems sturdy, flux residue, solder splashes, and incidental contact are easier to manage on Heat-Resistant Soldering Mat or Heat-Resistant Soldering Board, which are meant to be sacrificial work surfaces.

Finally, do not let the extractor hose or helping hands crowd the iron path. Arrange the arms first, then rehearse the iron movement before heating anything. If your wrist or sleeve catches on a clip or hose during a dry run, reposition the fixture before you start.

A typical kit

1. Flexible Fume Extractor Arm High Temperature ResistantProvides a flexible source-capture arm so solder smoke is pulled away right where it forms.
2. Heat-Resistant Soldering MatCreates a heat-resistant, non-slip main work surface and keeps small parts organized.
3. Soldering Fixture with Articulated ArmsHolds boards, wires, and small parts with multiple articulated arms so both hands stay free.
4. Wire Soldering FixtureSupports wire-to-wire and connector repairs by keeping leads aligned during soldering.
5. Heat-Resistant Soldering BoardAdds a dedicated non-flammable hot zone for tasks that concentrate heat in one spot.
6. PCB Holder ClampGives small PCB work a compact rotating clamp that is easy to angle for access and visibility.
