Tools to set up a guitar at home

Start with measuring tools, because setup is really controlled adjustment

A good home setup starts with measurement, not guesswork. The first thing to look for is a tool that lets you read string height clearly and repeat the same check after each adjustment. A digital gauge such as Digital String Height Gauge is useful because it is made for guitar setup work, has a clear readout, can switch between mm and inches, and can reset to zero for consistent checks.

Another option is String Action Gauge, which is a digital string action gauge with a listed specification of 0.01mm. That kind of fine reading helps when you are making very small saddle or truss rod changes and want to confirm that the action actually moved.

When choosing a measuring tool, favor readability, repeatability, and a base or head shape that is easy to position under the strings. If you cannot measure the result the same way each time, it is hard to tell whether a buzz or stiff feel comes from the setup or from inconsistent checking.

For most home users, one action gauge is enough. If you want a simpler kit, choose either Digital String Height Gauge or String Action Gauge rather than buying both at once unless you know you want a backup or prefer one display style over the other.

Add specialty tools only for the part you are actually changing

A routine setup often leads to nut or bridge adjustments, but those jobs need more control than a general measuring tool can provide. If you are shaping or refining a nut by hand, Wooden Guitar Nut Sander is designed to hold a nut stable while you sand it, and the listing says it includes a sanding sheet. The listed size for Wooden Guitar Nut Sander is about 15 cm long and 3 cm wide, which gives you a compact hand tool for controlled bench work.

If your work involves bridge pin holes on an acoustic instrument, 2-Piece Guitar Bridge Pin Reaming Tool is made for manual reaming and chamfering of those holes. The listing says 2-Piece Guitar Bridge Pin Reaming Tool is a 2-piece set with 3-degree and 5-degree tapers, which matters because bridge pin holes are not all prepared the same way.

For endpin or pickup jack installation, use a dedicated reamer instead of forcing hardware into the body. Tailpin Connector Boring Tool is meant to enlarge endpin jack holes and the listing specifically says it is for 12mm or 12.7mm jacks, while Tailpiece Jack Reaming Tool is a hand reaming tool for enlarging and finishing holes in the body. If you do not know which size your hardware needs, check the jack specification first and then pick the reamer that matches the job.

These tools are not required for every setup. They are worth buying when your guitar already needs that exact correction, not just because they appear in repair videos.

Know which tools are repair or build tools, not normal setup tools

Many guitar tools are meant for advanced repair or instrument construction, and buying them for a first home setup often causes confusion. Guitar Neck Removal Tool Kit and Acoustic Guitar Neck Removal Kit are neck removal tools for neck reset and related repair work, so they are not standard setup items for adjusting relief, action, and playability.

Alignment tools also matter mostly when geometry has become a repair problem. Adjustable Guitar Centerline Ruler is a centerline ruler intended for measuring and aligning the body and neck during construction, neck resetting, and setup work, and 35° Guitar Neck Jig is a neck jig that supports controlled filing and shaping tasks. Those can help on a bench when you are correcting deeper structural issues, but they are beyond what most players need for routine maintenance.

The same goes for bridge and body work. Guitar Bridge Clamp Screw-Adjustable is specifically for bridge gluing and repair, Guitar Binding Router Jig is a router jig for binding channels, and Guitar Body Template 40inch is a body template for making or laying out a guitar body. Those are useful workshop tools, but they are not part of a normal home setup kit.

A simple rule helps: if the tool removes a neck, glues a bridge, routes the body, or lays out a new build, it is probably a repair or making tool rather than a basic setup tool.

How the pieces work together and common mistakes to avoid

The usual flow is to measure first, make one small adjustment, and remeasure. A string action gauge such as Digital String Height Gauge or String Action Gauge tells you whether the change you made at the truss rod, saddle, or nut moved the strings in the direction you wanted.

If the nut is the problem, stabilize the part before shaping it. Wooden Guitar Nut Sander helps keep the nut steady during sanding so you can work more evenly and avoid tilting the piece by hand.

If the bridge area or jack area needs work, use the tool made for that material removal instead of improvising with unrelated hardware tools. 2-Piece Guitar Bridge Pin Reaming Tool, Tailpin Connector Boring Tool, and Tailpiece Jack Reaming Tool each target a specific kind of hole work, which reduces the chance of rough cutting or a poor fit.

Common mistakes include buying advanced repair fixtures before learning to measure action, trying to solve every playability issue by sanding parts first, and using construction tools for maintenance. Another frequent mistake is picking a specialty tool without confirming whether your guitar actually has that problem. If you start with careful measurement and only add task-specific tools when needed, you can handle many home setup jobs more safely and with less waste.

A typical kit

1. Digital String Height GaugeUse this as the main setup gauge to read string action consistently before and after adjustments.
2. String Action GaugeChoose this when you want a digital action gauge with a very fine listed specification for close checks.

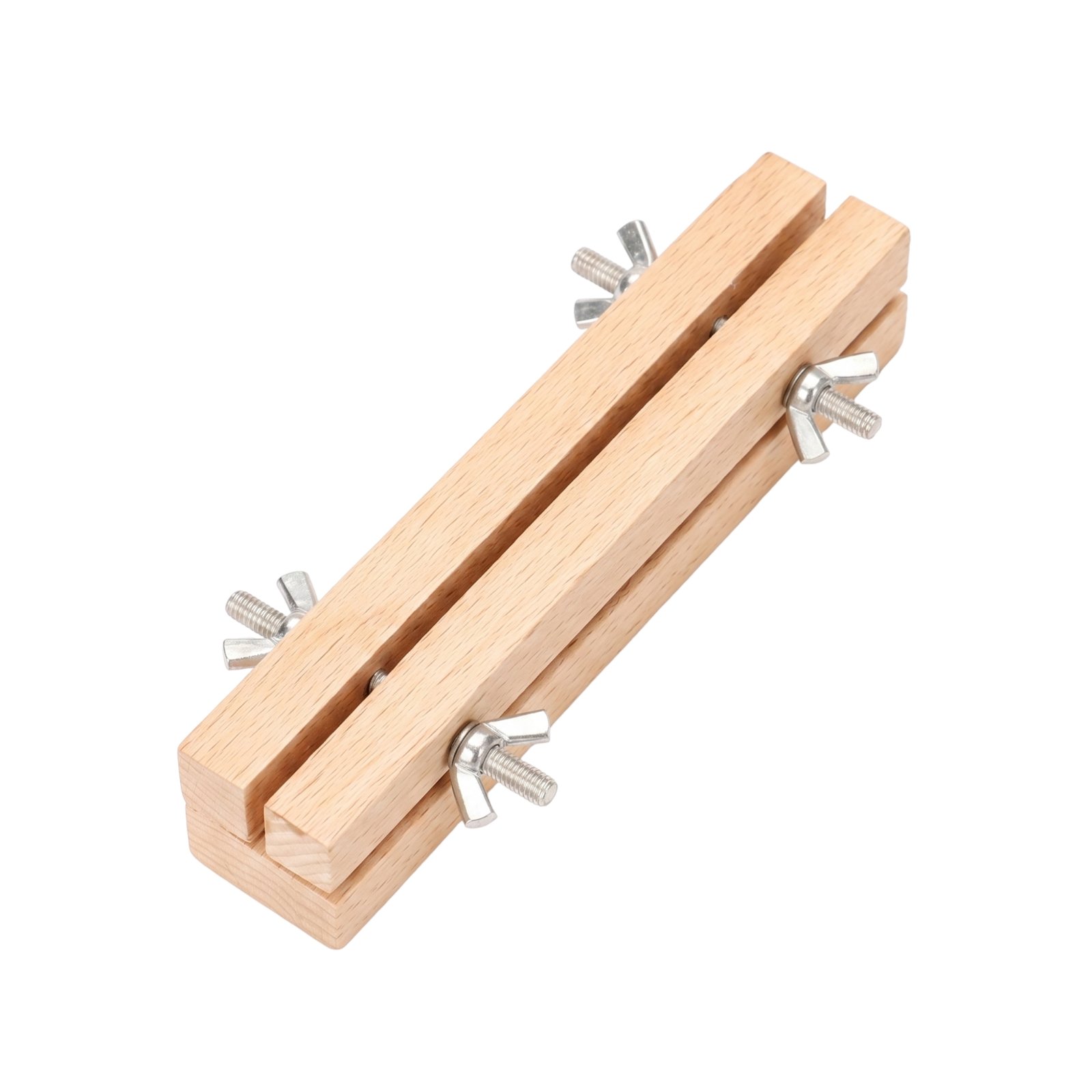

3. Wooden Guitar Nut SanderThis holds a guitar nut steady during hand sanding so nut work is more controlled.
4. 2-Piece Guitar Bridge Pin Reaming ToolKeep this for acoustic bridge pin hole work when the holes need careful reaming or chamfering.
5. Tailpin Connector Boring ToolUse this when installing or enlarging an endpin jack hole for a pickup system.

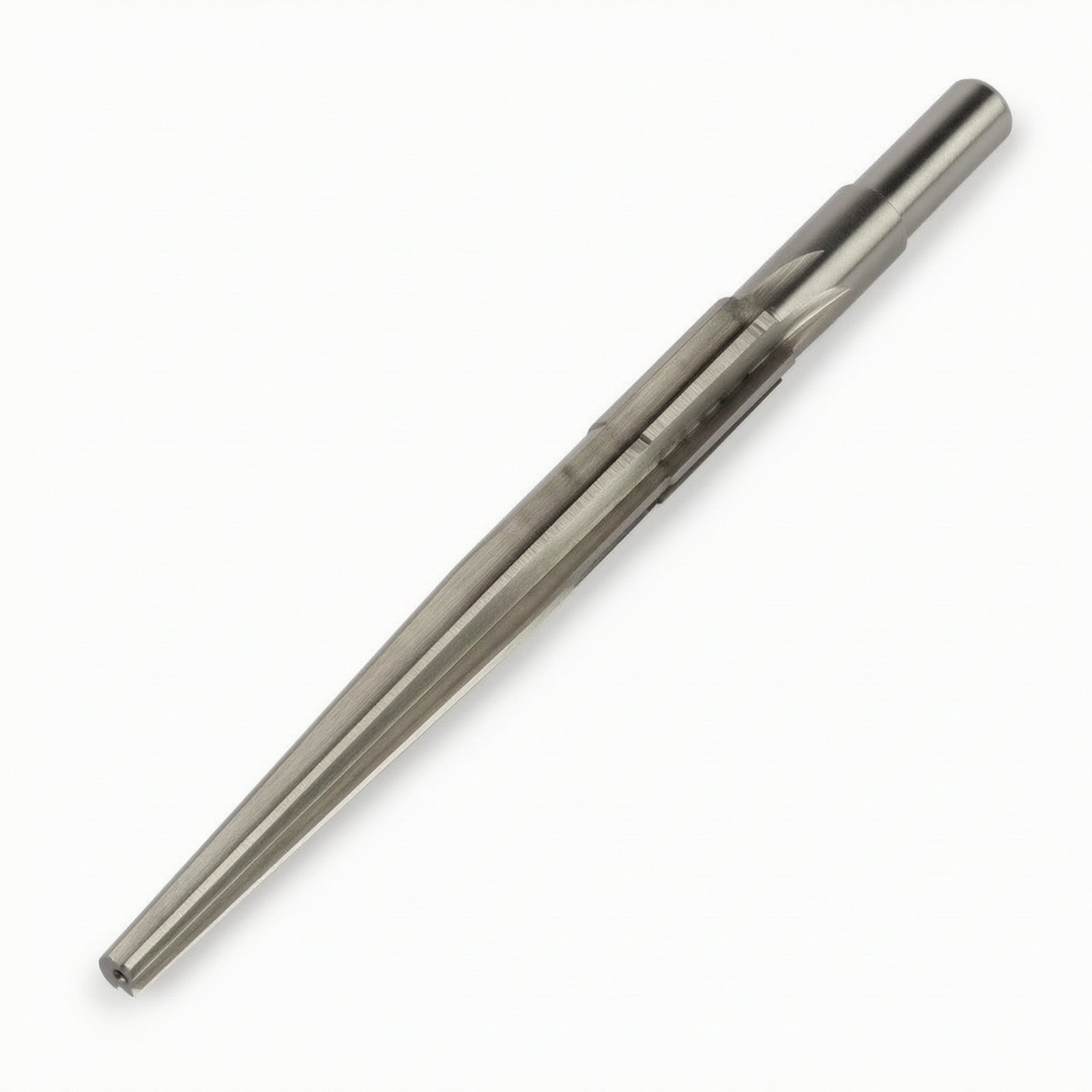

6. Tailpiece Jack Reaming ToolThis is a hand reamer for controlled body-hole enlargement and finishing during jack installation.
