Replacement parts that help repair common home gym machines

How to choose the right replacement part

The right repair part depends on what has actually failed. Home gym machines usually stop working well in a few predictable ways: a pin no longer locks securely, a wheel develops drag or noise, a pedal gets slick or cracked, a rope frays, a spring loses consistent feel, or a stop control becomes unreliable. Before ordering, compare how the old part mounts, how it locks, and what job it does in the machine.

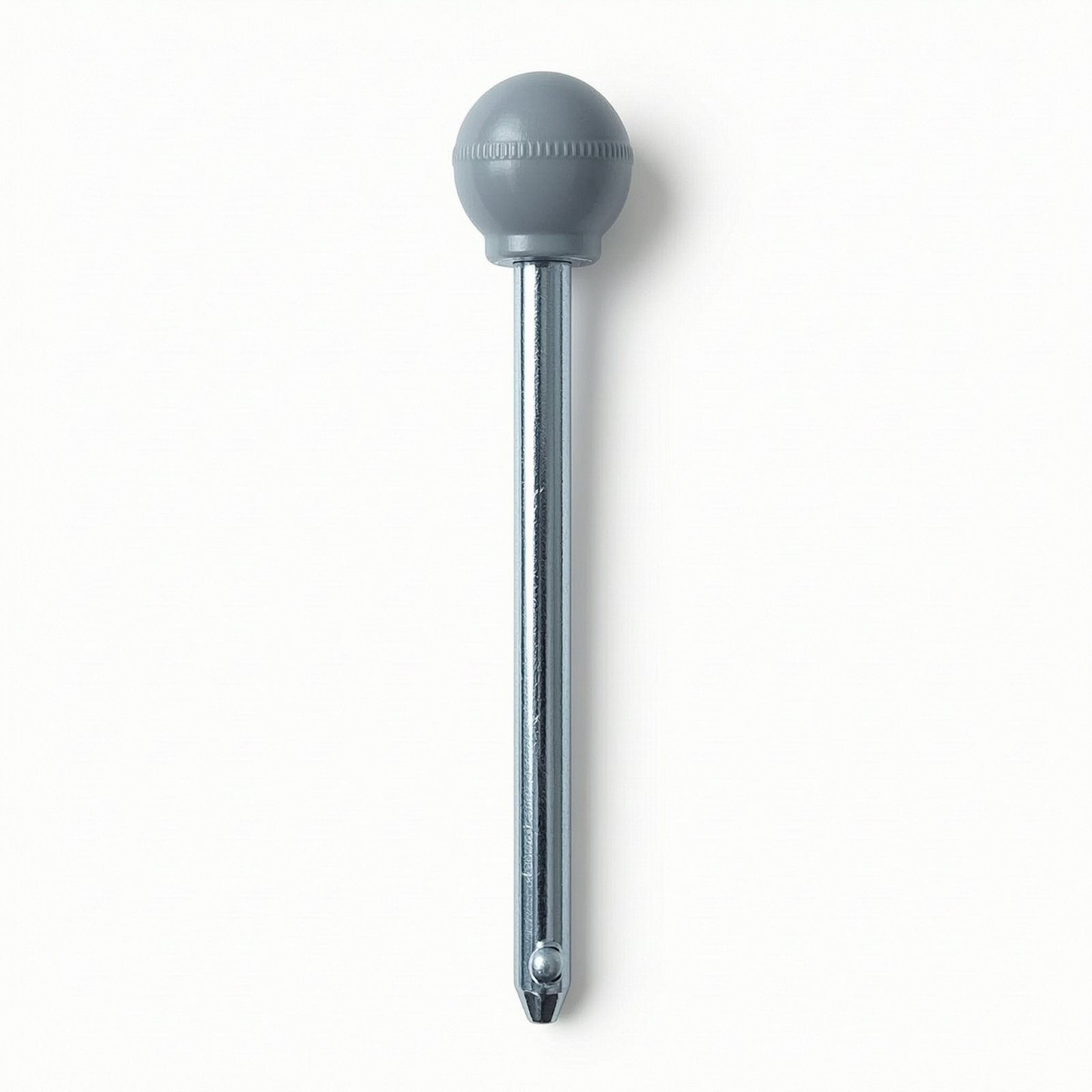

For selector systems on strength machines, focus first on pin style and shaft size. A selector pin such as Red Weight Selector Pin is meant for weight stack adjustment, while Weight Pin with Wire Clip serves the same basic job with a wire retaining clip style. If your machine uses a pull-and-lock arrangement rather than a simple insert pin, a locking part like Adjustable Spring Pin may be the correct type for an adjustable section on a stair machine or similar apparatus.

For moving seats and carriages, wheels need the correct outer diameter, bore, and width so they track properly and do not wobble. Rowing Machine Seat Wheel has a 45 mm outer diameter and 8 mm bore for compatible rowing seat setups, while Rubber Coated Roller Wheel uses a 42 mm outer diameter, 10 mm inner bore, and 24 mm width for track-style rolling applications on some home gym and Pilates equipment. If you are replacing several rollers on a reformer-style unit, Pilates Reformer Wheels supplies 4 pieces, but you should still compare the old wheel layout and axle fit before ordering.

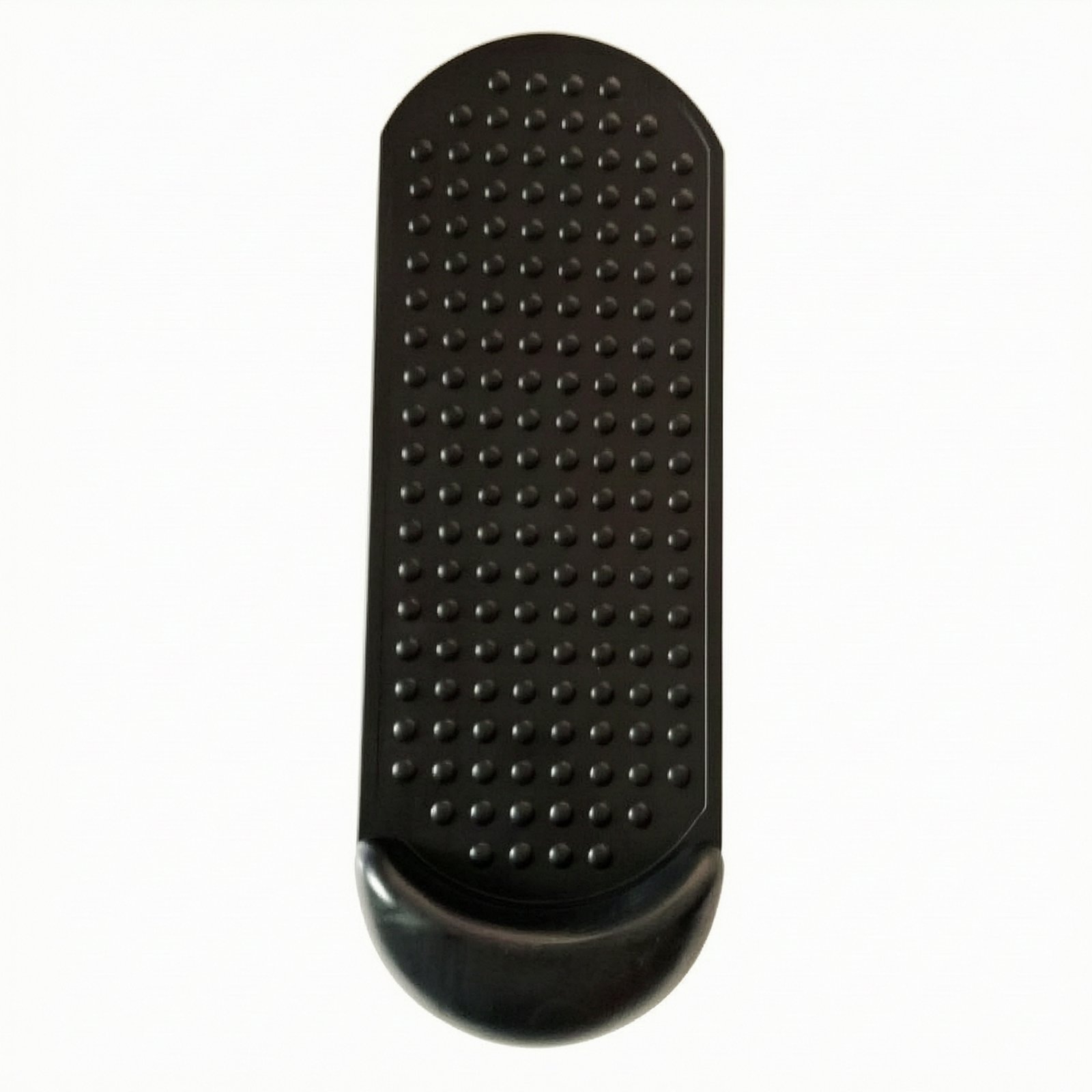

For contact parts where your body meets the machine, surface shape matters as much as fit. Replacement Stepper Pedal is a replacement stepper pedal with screws, raised anti-slip bumps, and a reinforced underside for machines that use that pedal style. Oval Exercise Machine Pedal is a different pedal format with 2 mounting holes and M8 hex screw compatibility, so it only makes sense when those mounting details match your machine exactly.

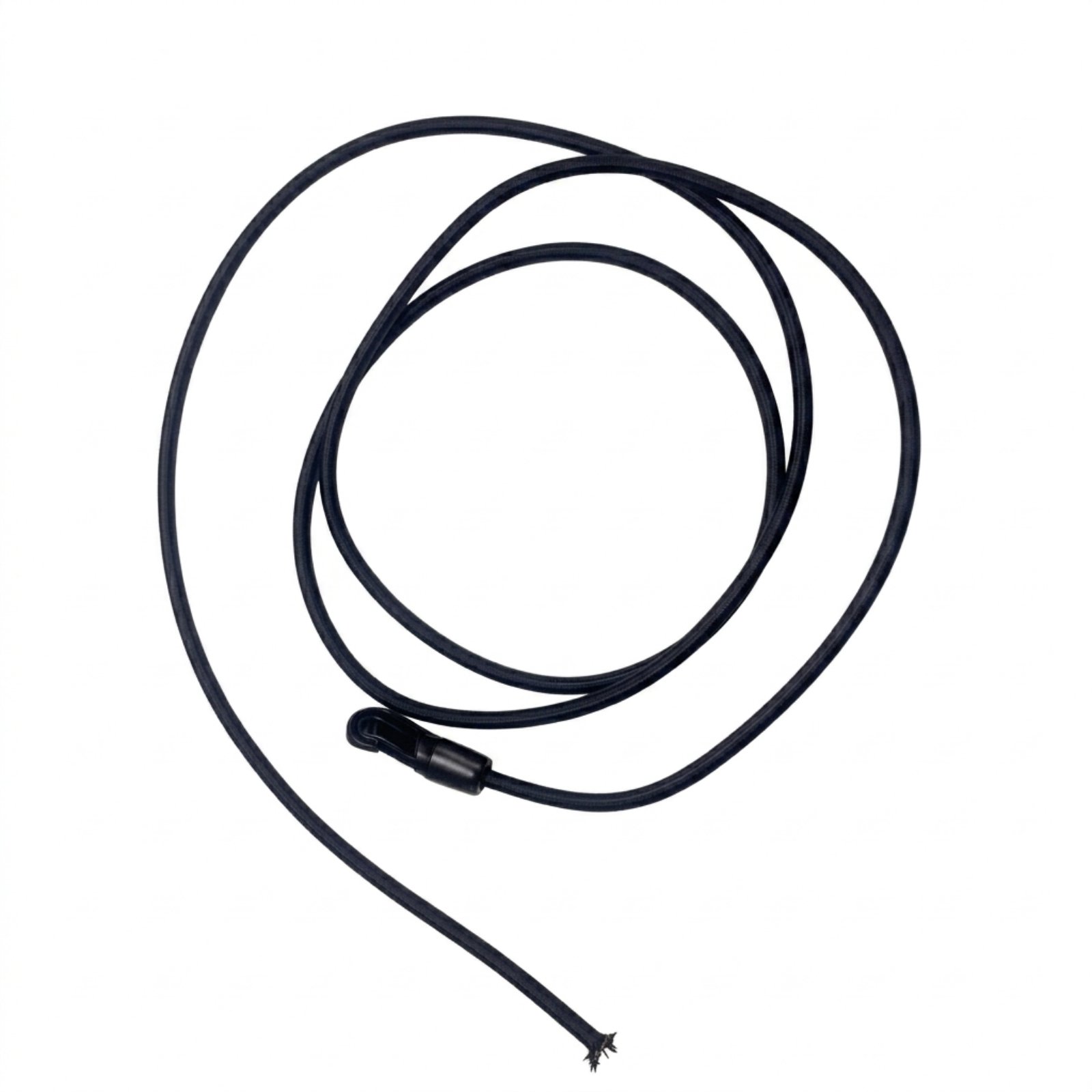

Cable-and-resistance parts also need close matching. Braided Rowing Rope Replacement provides a braided rowing rope with loop in a 3 meter length and 8 mm thickness for compatible pulley-based rowers or fitness setups, while Pilates Reformer Spring is a reformer spring with eyelets and an overall length of 470 mm with a 360 mm spring body for matching spring-driven equipment. If your machine is a treadmill, the repair may be electrical or control related instead of mechanical, and Treadmill Emergency Stop Button is an example of a dedicated emergency stop switch to compare against your existing mounted stop control.

How the pieces work together in a machine

Most home gym machines are simple systems made from a frame, a moving path, a resistance source, and a user contact point. A failure in one small part can make the whole machine feel unsafe or rough even when the frame itself is still fine. Understanding that chain helps you buy the one part that fixes the actual fault instead of replacing unrelated pieces.

On strength machines, the selector pin and the weight stack work as a pair. The pin sets the chosen resistance by locking into the stack, so if the pin is bent, loose, or missing, the machine cannot be adjusted with confidence. That is where parts like Red Weight Selector Pin or Weight Pin with Wire Clip come in, and on some machines an added locking part like Adjustable Spring Pin controls a separate adjustable section.

On rowers, reformers, and other glide-based machines, the wheel or roller supports smooth travel while the rope or spring manages resistance or pull direction. Rowing Machine Seat Wheel helps a rowing seat glide on a compatible rail, and Braided Rowing Rope Replacement transfers your pull through the pulley path on compatible rowers. On spring-based exercise beds, Pilates Reformer Spring provides the controlled resistance while guide and rolling parts such as Pilates Reformer Wheels or Rubber Coated Roller Wheel help the carriage move more evenly on the track.

Pedals and stop controls are the user-facing safety layer. A worn pedal can reduce footing and comfort, while a damaged stop switch can delay shutdown when you need it. Replacing a foot platform with Replacement Stepper Pedal or Oval Exercise Machine Pedal can restore a more secure stepping surface on compatible machines, and Treadmill Emergency Stop Button is the kind of dedicated stop control you would compare when a treadmill’s visible manual stop input is damaged or missing.

Common mistakes to avoid

The most common mistake is buying by appearance alone. Many parts look similar online, but small differences in bore size, hole spacing, shaft thickness, or connector style decide whether the replacement will fit. Always compare the old part directly, and if the listing does not include a detail you need, check your machine manual or measure the removed part before ordering.

Another mistake is treating all weight pins as interchangeable. A selector pin, an adapter pin, and a spring-loaded locking pin do different jobs. Red Weight Selector Pin is for selecting weight on compatible stacks, Weight Pin with Wire Clip uses a wire clip retention style, and Adjustable Spring Pin is intended as a stair machine spring pin, so you should match the mechanism instead of picking whichever pin looks strongest.

Buyers also sometimes replace only the visibly broken part when surrounding wear is the real cause. A new wheel will not roll well on a damaged track, and a new rope will not solve a seized pulley. If a rower seat feels rough, inspect the rail, axle hardware, and adjacent rollers along with considering Rowing Machine Seat Wheel. If a glide machine binds, check the wheel count and track condition before assuming Pilates Reformer Wheels or Rubber Coated Roller Wheel alone will cure it.

Do not guess on handed or side-specific parts. Oval Exercise Machine Pedal is listed as left only, so it should be chosen only when your failed pedal is on that side and the mounting style matches. For treadmill controls, do not assume any stop button will fit your panel or wiring layout; compare the mounting base and visible control format of Treadmill Emergency Stop Button to your existing assembly first.

A typical kit

1. Red Weight Selector PinA weight selector pin restores normal resistance changes on compatible home strength machines with a weight stack.
2. Adjustable Spring PinA spring-loaded locking pin helps secure adjustable sections on compatible stair and similar exercise equipment.
3. Rowing Machine Seat WheelA replacement seat wheel helps a compatible rowing machine seat roll more smoothly on its rail.
4. Braided Rowing Rope ReplacementA rowing rope replaces a frayed or worn pull cable on compatible rowers and pulley-based fitness setups.
5. Replacement Stepper PedalA replacement pedal renews foot grip and restores a secure stepping surface on compatible steppers.
6. Pilates Reformer SpringA reformer spring restores controlled resistance on compatible spring-driven exercise equipment.
