How to protect an outboard propeller and lower unit from damage in shallow water or around debris

Start with the kind of damage you are trying to prevent

If your main problem is rocks, sticks, rope, or weed contact near the propeller, start with a cage-style guard. A propeller guard creates a physical barrier so the prop is less likely to strike hard objects directly, and it also helps keep people and marine life farther from the moving blades. For small motors, Stainless Steel Propeller Guard is described as a stainless steel propeller cage for 4-5hp setups, while Outboard Propeller Guard Stainless Steel is a thickened 304 stainless steel guard with 9.0 mm tubing for a compatible 12HP 2-stroke setup.

If the lower unit itself gets scraped or bumped during docking, launching, or shallow approach, a gearcase cover is the more relevant piece. Gearbox Cover Impact Resistant is specifically a gearbox protection cover for a compatible 9.8HP outboard, intended to shield the lower section from everyday knocks and bumps.

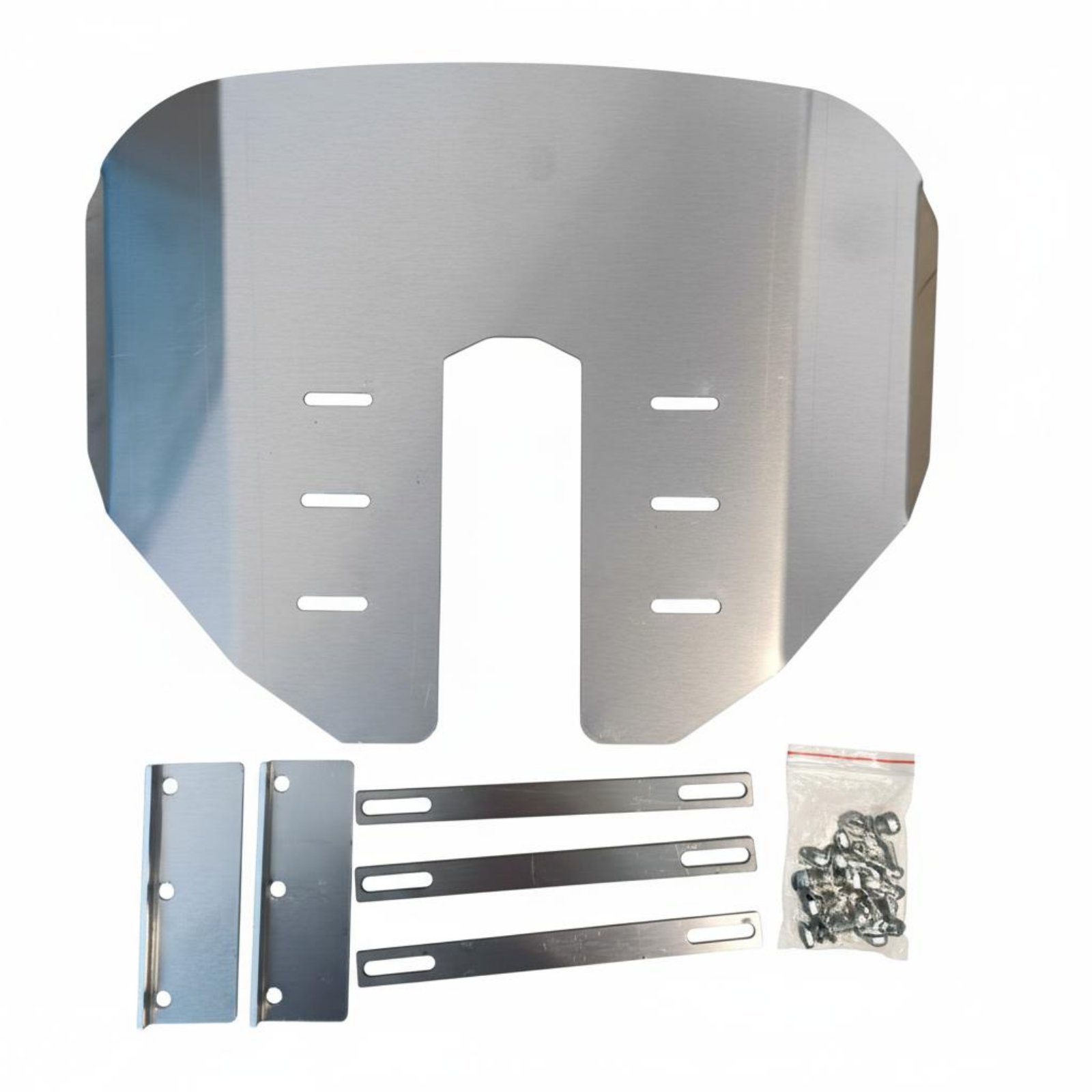

If your issue is not direct impact but stern squat, unstable takeoff, spray, or a boat that feels less settled in changing water, then a hydrofoil-style plate may help. Stainless Steel Cavitation Plate is a stainless steel cavitation plate accessory for 40-350hp outboards, and Outboard Hydrofoil Stainless Steel is an outboard hydrofoil intended to improve stability on compatible 9-30 Hp motors. These parts work at the lower unit, but they are not a cage around the propeller, so they address handling support more than strike protection.

Which features matter most when choosing

Fit comes first. The product has to match your motor range and mounting style, because a guard or cover that does not align correctly can be harder to install and may not protect the right area. Check your engine power range, stroke type if listed, and whether the listing says it is universal or sized for a specific setup. For example, Wire Cage Propeller Guard is a wire-cage propeller guard for a 2-stroke 12HP blade setup, while Stainless Propeller Guard with Mounting Tabs is another 12HP-class guard that specifically mentions mounting tabs for attachment stability.

Material matters because these parts live in wet, abrasive conditions. Stainless steel is useful for guards and plates because it resists rust and handles scraping in marine environments. Stainless Steel Propeller Guard, Wire Cage Propeller Guard, and Stainless Propeller Guard with Mounting Tabs all call out stainless construction, which is worth prioritizing if you use the boat in saltwater or leave gear exposed between trips.

Look at the guard shape and attachment details. A cage with a design that surrounds the prop area is what you want for strike protection, while welded joints or mounting tabs can matter for keeping the guard secure once installed. Stainless Propeller Guard with Mounting Tabs specifically notes built-in attachment points at the top and lower edges, and Wire Cage Propeller Guard describes a circular lower base with a tapered upper frame intended to fit around the motor area without severely restricting water current.

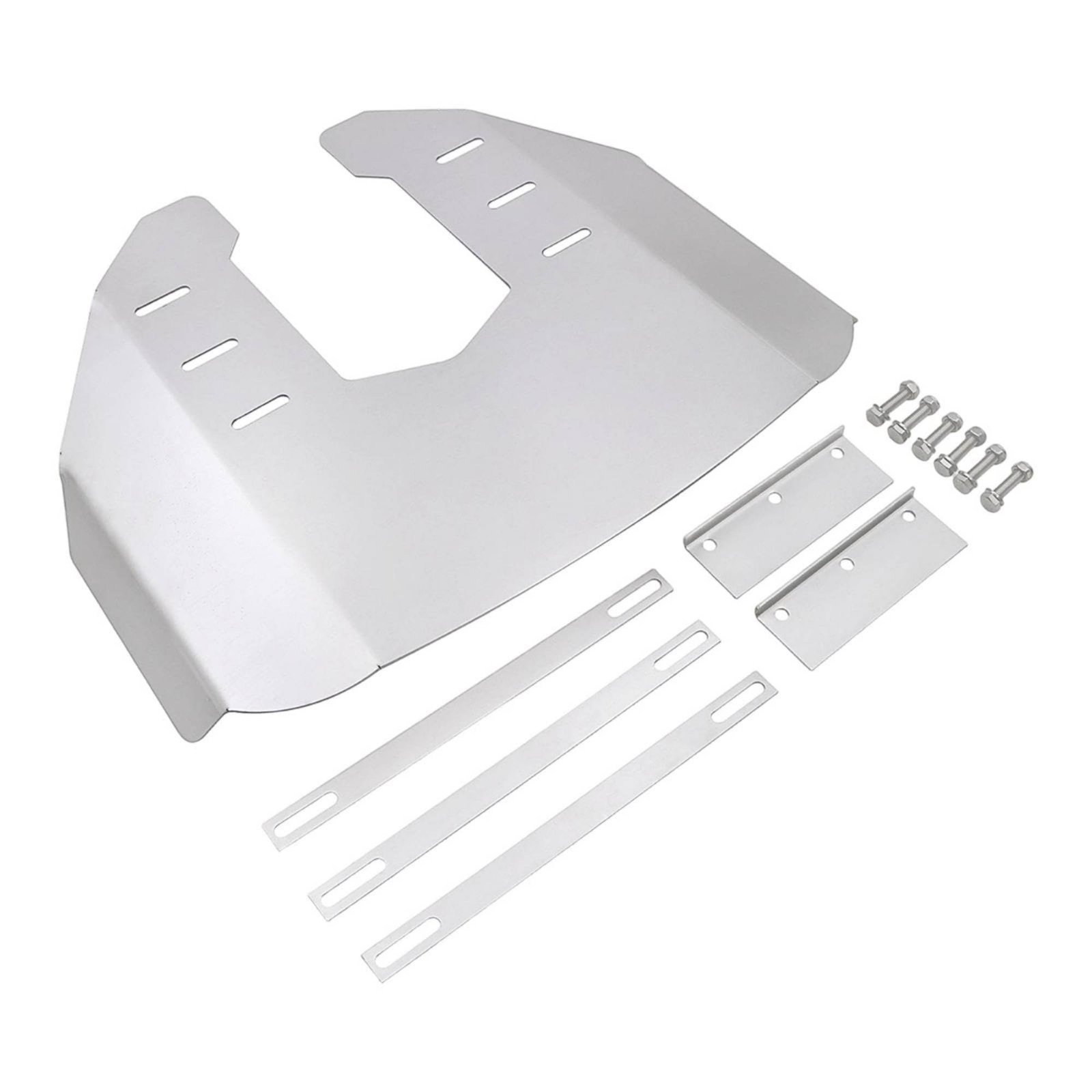

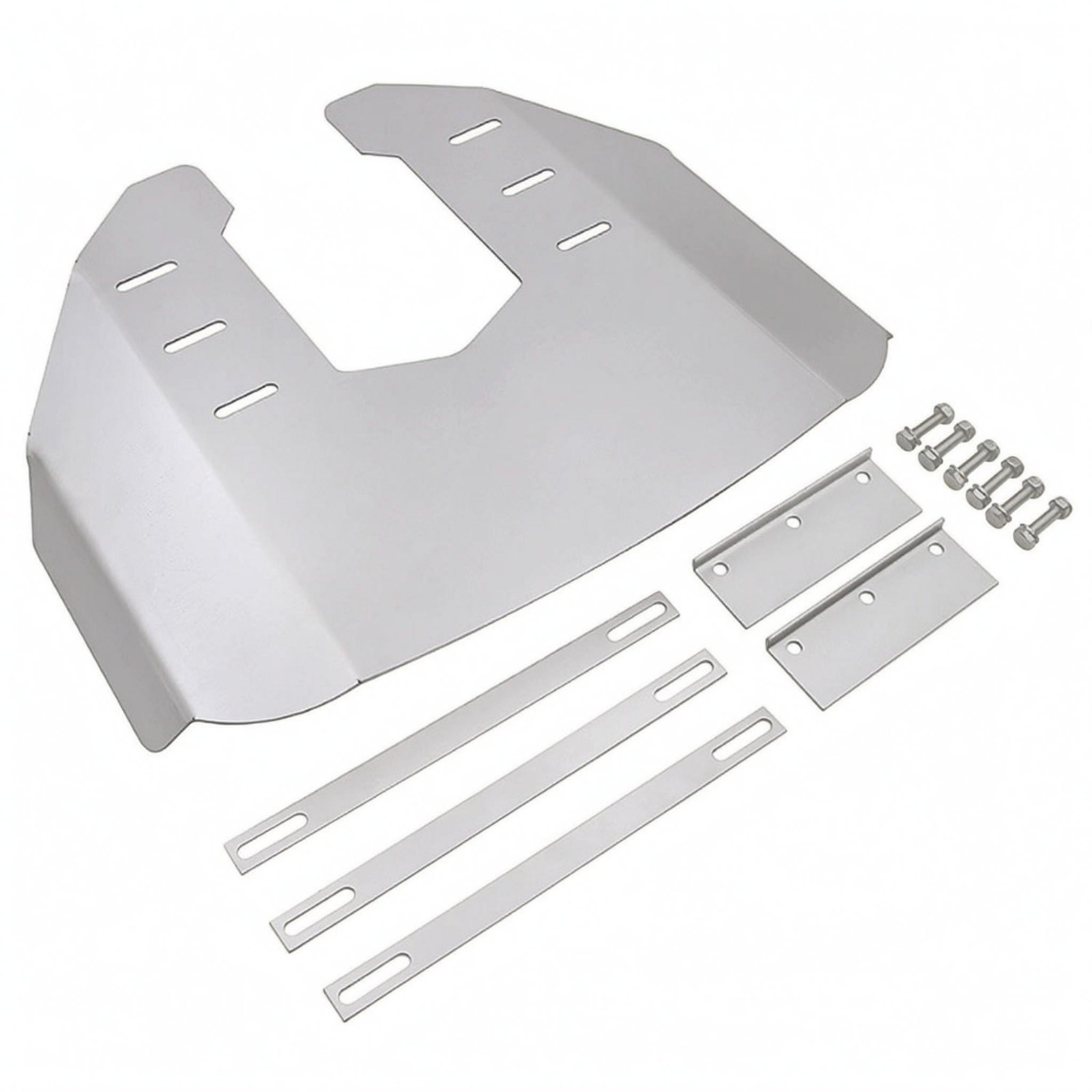

For hydrofoils and cavitation plates, slotted mounting points are useful because they allow adjustment during installation. Stainless Steel Cavitation Plate includes slotted mounting points and hardware, and Stainless Steel Outboard Hydrofoil Plate uses slotted mounting holes and included fasteners for setup and adjustment on 40-350 Hp outboards. That kind of adjustability can make it easier to get a close fit on the lower unit, but you should still confirm your motor has the right surface and clearance before buying.

How the pieces work together on the boat

Think of the system in layers. The propeller guard protects the rotating area from direct contact with rocks, ropes, and floating debris. The gearcase cover protects the lower housing from scrapes and bumps. A hydrofoil or cavitation plate changes how water flows at the lower unit to support smoother running and steadier takeoff.

A practical shallow-water setup for a small compatible outboard might combine a prop guard such as Outboard Propeller Guard Stainless Steel with a gearcase protector like Gearbox Cover Impact Resistant. That pairing covers both the prop zone and the lower-unit housing, which are often damaged in different ways.

On larger outboards where a hydrofoil-style accessory is appropriate, a plate such as Stainless Steel Cavitation Plate or Stainless Steel Outboard Hydrofoil Plate can be added for balance and running support, but it should not be expected to stop a direct prop strike. Its job is to guide water current and support control, not to cage the blades.

If you need both a replacement right-hand prop and a guard for a very small compatible setup, Stainless Steel Propeller Guard + Right Hand Propeller bundles a 2S 4-5hp guard with a 48V 3.6-5.0hp nylon right-hand propeller. That can simplify a repair when the existing prop is already damaged, but you still need to verify that both bundled pieces match your motor before ordering.

Common mistakes to avoid

Do not assume every lower-unit accessory protects against impact in the same way. A hydrofoil plate and a propeller cage both mount near the lower unit, but they solve different problems. If debris strike protection is your priority, buy the guard first and treat the foil plate as optional support.

Do not buy by appearance alone. Many guards look similar, but the listing may be for a very specific motor size or type. A guard made for a small outboard may not fit a larger gearcase, and a specific cover like Gearbox Cover Impact Resistant should only be chosen when your motor matches the stated application.

Do not ignore installation details. Mounting tabs, included hardware, and slotted holes can make setup easier, but you still need enough clearance around the propeller and lower unit after installation. Before buying, check for interference with steering movement, trailer supports, and any existing fins or plates.

Do not expect any accessory to make shallow running risk-free. These parts reduce the chance of damage and can lower the severity of minor contact, but they do not replace careful speed control, trimming for conditions, and watching water depth and floating hazards.

A typical kit

1. Stainless Steel Propeller GuardUse this as a basic stainless cage around a compatible 4-5hp propeller to reduce direct contact with rocks, debris, and ropes.
2. Outboard Propeller Guard Stainless SteelChoose this heavy-duty guard when you need a sturdier prop-area barrier on a compatible 12HP 2-stroke setup.
3. Gearbox Cover Impact ResistantAdd this lower-unit cover when your main concern is bumps and scrapes to the gearcase during shallow approaches, docking, or loading.
4. Stainless Steel Cavitation PlateUse this cavitation plate on a compatible 40-350hp outboard to improve running balance and lower-unit water flow support.
5. Wire Cage Propeller GuardConsider this wire-cage guard for shallow-water navigation on a compatible 2-stroke 12HP setup where strike protection is the main goal.
6. Stainless Propeller Guard with Mounting TabsPick this guard when you want a cage with built-in mounting tabs for a stable fit on a compatible 12HP-class application.
