How to fix or replace latches, handles, and hinges on a boat hatch or compartment door

Choose the right hardware first

A good repair starts with identifying which part is actually failing. The hinge carries the load and controls how the hatch or compartment door moves. The handle gives you a safe grip to lift or pull it. The latch or lock keeps it shut while the boat moves. If one piece is worn, look closely at the others too, because misalignment often shows up as rattling, uneven gaps, or a hatch that needs extra force to close.

For hinges, first match the mounting style. A basic exposed hinge such as 316 Stainless Steel Hinge is useful for many lockers, cabinets, and deck hatches when you want a straightforward marine hinge in 316 stainless steel. If you need a compact hinge and want to match an existing footprint, 316 Stainless Steel Boat Hinge is an example with a listed size of 38 x 38 x 4 mm and a listed thickness range of 4 mm to 4.5 mm, which can matter when trying to avoid new holes or panel interference.

If you want a cleaner visible surface, Stainless Steel Oval Hinge uses threaded rods from the underside instead of a typical top-fastened look. That can be helpful on a hatch top where you want a neat appearance and do not want bolt heads showing. If you are replacing several matching hinges on one project, Set of 5 Stainless Steel Oval Hinge gives you the same oval style in a set so the hardware stays consistent across multiple lids.

For the pull point, think about whether the hardware should sit proud of the surface or stay flush. Recessed Boat Door Handle is a recessed pull made for a flush installation, which is useful when you want to reduce snagging on a deck or locker lid. For security, choose a latch based on the panel and the cutout you already have. Stainless Steel T-Handle Lock works as a T-handle lock for access panels and hatches, while Push Button Door Lock is a push-button style lock with a listed opening of 23 mm, so it makes sense only if your panel matches that requirement.

How the pieces work together

A hatch works smoothly only when the hinge, handle, and closing hardware all suit the way the panel moves. The hinge sets the path. The handle gives you a balanced place to lift or pull. The latch keeps the panel closed without needing to twist or bend it into place. When one of those parts is off-center or poorly matched, the panel may bind, leak, or loosen over time.

On a top-opening hatch, place the pull where you can lift the panel evenly. That is why Recessed Boat Door Handle is often useful on deck lids and covers: it gives you a direct lift point while keeping the top surface flush. Pair it with a hinge that fits the hatch edge and mounting area, such as 316 Stainless Steel Hinge for a conventional setup or Stainless Steel Oval Hinge if you prefer an oval hinge with underside studs.

On a side-hinged compartment door, think beyond just the lock. Stainless Steel T-Handle Lock or Push Button Door Lock can keep the door shut, but an open door may still need control once unlatched. Stainless Steel Door Holder is a simple door holder that helps keep a door from swinging open or closed unexpectedly. If you need the door held at a right angle, 90 Degree Door Holder is designed as a 90 degree retainer, which can be useful in narrow passages or near trim where door movement needs to stay controlled.

If you remove a hatch for service on a regular basis, a detachable hinge can simplify the job. Mirror Polished Deck Hinge uses a quick-release pin so the two hinge halves can separate without tools, which is handy for access panels or removable covers.

Common mistakes to avoid

The most common mistake is replacing only the obvious broken part without checking alignment. If the hatch edge rubs, the panel rocks, or the gaps are uneven, the hinge side may already be worn. Replacing the latch alone may make the hatch feel tighter for a short time, but it can also hide the real problem and put extra strain on the new part.

Another mistake is choosing parts by appearance alone. Stainless hardware can look similar, but the jobs are very different. Recessed Boat Door Handle is a pull handle, not a latch. Stainless Steel T-Handle Lock and Push Button Door Lock are for closing and locking. Stainless Steel Door Holder and 90 Degree Door Holder help manage an open door, but they do not replace the main hinge or the main closing hardware.

Do not assume every hinge swaps into the old holes. 316 Stainless Steel Boat Hinge has a listed footprint of 38 x 38 x 4 mm, while 316 Stainless Steel Hinge is listed in a 38-76 mm option, so the overall shape and hole spacing may not match even though both are marine hinges. Check the hole pattern, panel edge clearance, and whether the original hardware fastened from above or below.

It is also easy to overtighten hardware on a thin panel. Tighten evenly, test the movement, and stop once the hinge or latch is secure and the panel closes naturally. If the panel surface flexes or the hatch no longer lands flat, loosen it and realign before tightening again.

A simple repair plan

Remove the old part carefully and keep it nearby until the new hardware is installed. Clean the mounting area and inspect for cracks, soft spots, or enlarged holes. If the panel is weak around the fasteners, correct that first so the replacement hardware has a solid base.

When replacing hinges, loosely mount both sides before fully tightening. This lets you shift the hatch slightly so the reveal looks even and the panel lands flat. Once the hinge side moves smoothly, fit the handle and then the latch so the closing hardware meets the strike point without side pressure.

For the final setup, decide whether you need only secure closing or also open-door control. Stainless Steel T-Handle Lock is a practical choice for a hatch that needs a clear locking point, while Push Button Door Lock suits a compact cabinet-style installation with the proper cutout. Add Stainless Steel Door Holder or 90 Degree Door Holder if the open door needs to stay controlled instead of swinging freely.

After installation, cycle the hatch or door several times. A proper repair should feel smooth, with no scraping, no sideways push needed to latch, and no looseness at the hinge line.

A typical kit

1. 316 Stainless Steel HingeUse this as a general replacement hinge for many boat hatches, lockers, and compartment doors.
2. Stainless Steel Oval HingeChoose this when you want an oval hinge with threaded rods underneath for a cleaner top surface.

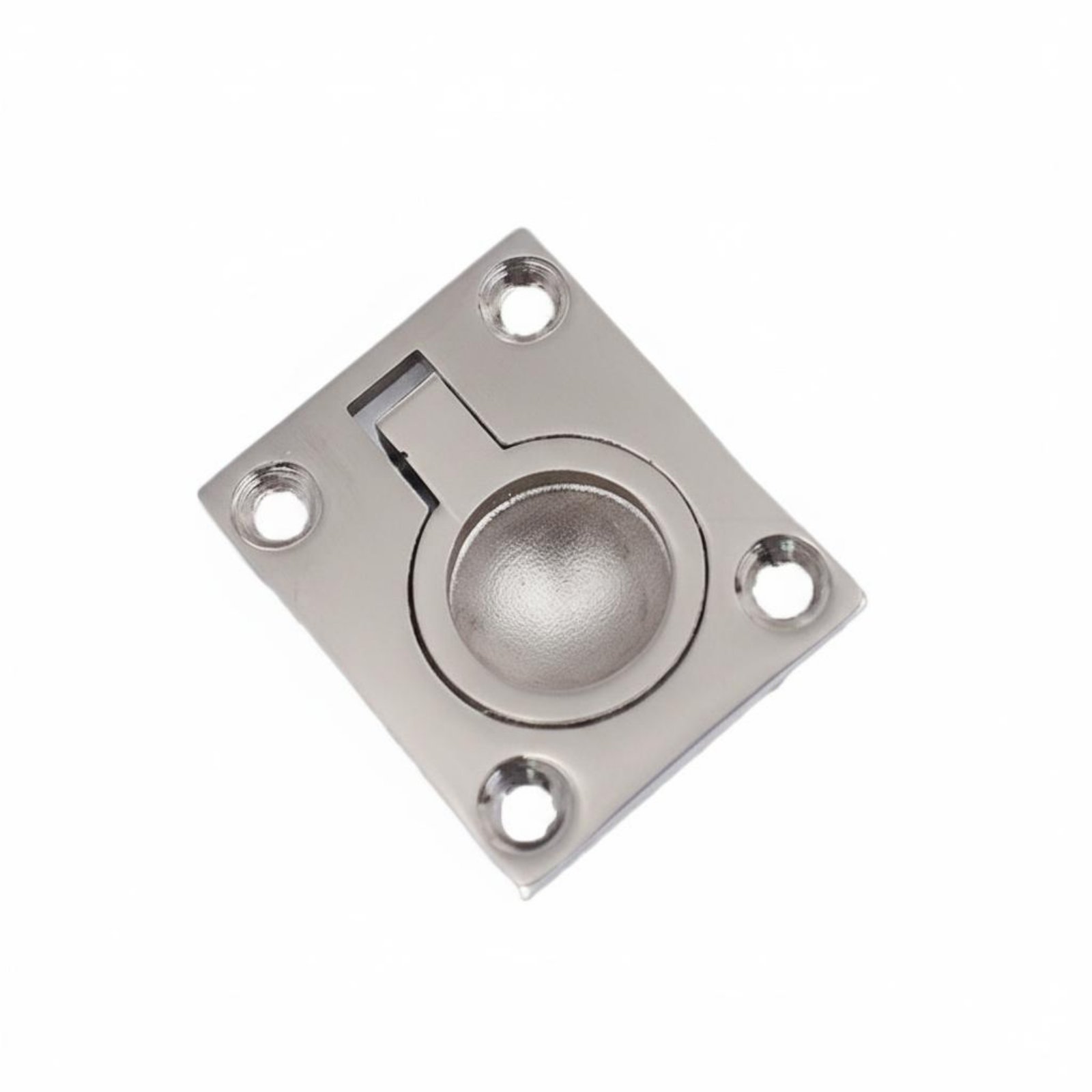

3. Recessed Boat Door HandleThis recessed pull gives you a flush grip point for lifting a hatch or locker lid.
4. Stainless Steel T-Handle LockUse this T-handle lock when the hatch or access panel needs a secure closing point.

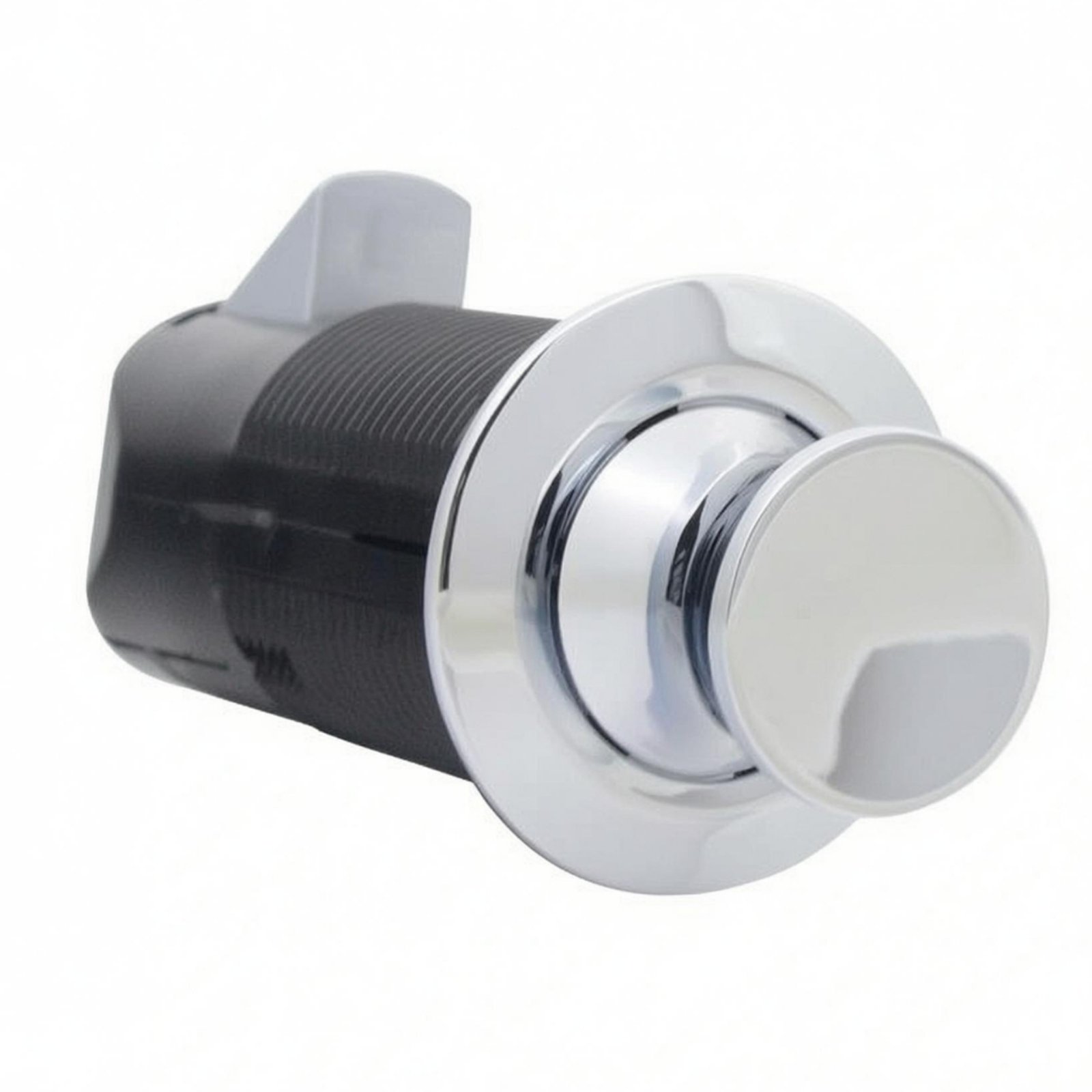

5. Push Button Door LockPick this push-button lock for a compact cabinet-style panel with a compatible opening.
6. Stainless Steel Door HolderAdd this door holder to keep an open compartment door from swinging around.
