How to service an outboard water pump and replace the impeller parts

Choose parts by application first, then by kit completeness

Start with fit, not appearance. Outboard water pump parts can look similar while having different hubs, keys, gaskets, housings, and small hardware. The safest approach is to match the replacement to the exact part number or engine application listed for your motor, and if your old pump has obvious wear in the housing or sealing surfaces, choose a full rebuild kit instead of only the rubber wheel.

A full kit such as Impeller Repair Kit is useful when you want the main service parts together, because its contents include an impeller, pump housing, stainless steel cup, stainless steel plate, key, O-ring, paper gaskets, and mounting screws. If your pump design uses a housing-style rebuild, 68V-W0078 Impeller Kit with Housing is another example that includes a molded pump housing, impeller, metal cover plate, gasket, sealing rings, screws, washers, and small fitting pieces.

If you already know the hard parts are still in good shape, an impeller-only replacement can make sense, but only when the application is a confirmed match. Rubber Impeller Repair Kit is an example of a simple impeller replacement that also includes the metal key for installation, while Outboard Motor Impeller OEM Specification is an impeller option intended for 115-225 power output applications.

For smaller motors, application-specific kits can narrow the guesswork. Marine Pump Impeller Kit is listed for 8, 9.9, and 15HP outboards, and Impeller Repair Kit with Housing is listed as a direct replacement for 9.9 kW, 15 kW, and 18 kW outboards motors. If your motor falls outside those listings, stop and verify the part number before ordering rather than assuming the vane count or diameter will be close enough.

What to inspect during service and why each piece matters

A water pump service is more than swapping the rubber impeller. The impeller moves water, but the cup or housing forms the chamber, the plate gives the vanes a smooth running surface, the key locks the impeller to the shaft, and the gaskets and sealing rings keep the pump from losing prime or leaking internally. When one piece is worn, the whole pump can lose efficiency even if the old impeller still looks usable at a glance.

That is why complete kits are often the practical choice for routine service. Water Pump Repair Kit with Housing includes a metal pump housing, impeller, rubber impeller cup, flat gaskets, molded sealing rings, and a key, which covers the usual wear points in a rebuild. Marine Pump Repair Kit also gives you a black molded pump housing, impeller, metal sleeve, and two flat gaskets, which is a good example of the parts you want when the old housing is scuffed or the sealing faces are tired.

When the old impeller has bonded itself to the shaft or pump cavity, use a dedicated puller instead of prying against the housing. Adjustable Impeller Puller uses two hooked puller arms, a central threaded screw, and a T-handle for controlled extraction, while Marine Pump Impeller Puller uses adjustable gripping arms and a central screw drive for the same basic job. A proper puller helps avoid cracking the housing or gouging the surfaces that the new seals must sit against.

Before reassembly, clean the pump cavity and inspect for grooves, heat marks, hardened seals, or damaged screw holes. If your chosen kit does not clearly include every gasket or hardware piece you removed, check the contents list before you begin so the motor is not left apart waiting for a tiny missing seal.

How the pieces work together in the pump

The impeller is a flexible rotor that spins inside a close-fitting chamber. As the vanes bend and recover, they create the pumping action that moves cooling water through the engine. That action depends on a snug fit between the impeller and the surrounding cup or housing, plus a smooth plate surface and intact seals.

A housing-style rebuild such as 68V-W0078 Impeller Kit with Housing restores the chamber around the impeller, while a kit like Impeller Repair Kit refreshes the chamber, wear surface, keying parts, and seals together. If you replace only the impeller but leave a scored cup, warped plate, or flattened gasket in place, the pump may still move less water than it should.

The key matters more than many first-time buyers realize. It transfers shaft rotation into the impeller hub, so if the old key is worn, missing, or damaged during removal, the impeller may not drive correctly even after a careful install. That is one reason kits that include the key and sealing parts are often easier for a complete service than mixing old and new pieces.

After assembly, the pump should turn smoothly by hand during setup, with the impeller seated correctly and the housing drawn down evenly. If anything binds, feels crooked, or leaves extra parts on the bench, pause and compare every removed part with the replacements before finishing the job.

Common mistakes to avoid

The most common mistake is buying by looks alone. Similar impellers can have different hub shapes, keys, plates, or seal layouts, so always match the application or replacement number shown for the kit you choose.

Another mistake is replacing only the impeller when the rest of the pump is worn. If the housing, cup, plate, sleeve, or seals are damaged, a more complete rebuild such as Water Pump Repair Kit with Housing or Marine Pump Repair Kit is usually the smarter route because it addresses the sealing and wear surfaces, not just the flexible rotor.

Do not pry out a stuck impeller with screwdrivers if you can avoid it. A puller like Adjustable Impeller Puller or Marine Pump Impeller Puller applies force more evenly and reduces the chance of damaging the pump body.

Finally, do not assume every kit includes the same contents. Some products are impeller-only, some add the key, and some include housing, plate, sleeve, gaskets, O-rings, screws, and washers. Read the contents list closely and compare it with what is coming off your motor before you start the service.

A typical kit

1. Adjustable Impeller PullerUse this puller to remove a stuck old impeller without prying against the pump housing.
2. Impeller Repair KitChoose this when you want a broad rebuild kit with housing, cup, plate, key, gaskets, and screws.
3. 68V-W0078 Impeller Kit with HousingThis is a housing-style rebuild kit for a listed outboard application where you want the main pump hard parts together.
4. Water Pump Repair Kit with HousingPick this for a more complete rebuild when you need housing, cup, gaskets, sealing rings, impeller, and key in one package.
5. Marine Pump Repair KitThis kit fits a smaller listed outboard application and replaces housing, impeller, sleeve, and gaskets as a set.

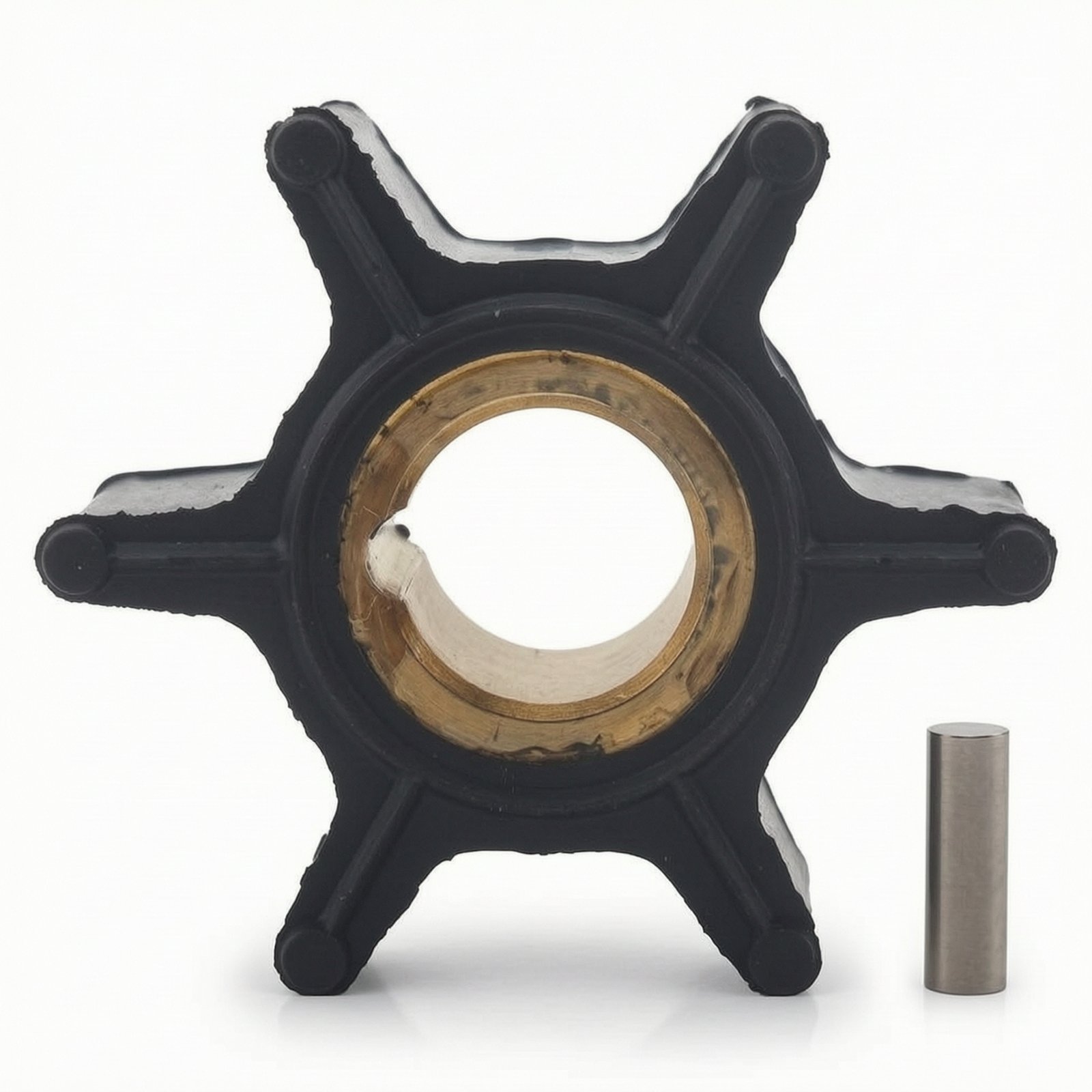

6. Rubber Impeller Repair KitUse this as an impeller-and-key replacement when the rest of the pump hardware is still serviceable.
