Which handlebars fit standard mini bike clamp sizes for mini bikes, kids bikes, or utility builds

Fit and size check

• Chrome Handlebars 22.2mm: handlebar for small mini motorcycles and custom mini bike builds; outer diameter 22.2 mm; inner diameter 17.8 mm; length 1 m; low-height bent shape; material listed as metal; what is included: handlebars only.
• Motorcycle Handlebar with Cross Brace: handlebar with cross brace; standard 22 mm diameter; classic bent shape; material listed as aluminum alloy; package weight Motorcycle Handlebar with Cross Brace is 480 g; what is included: not listed.

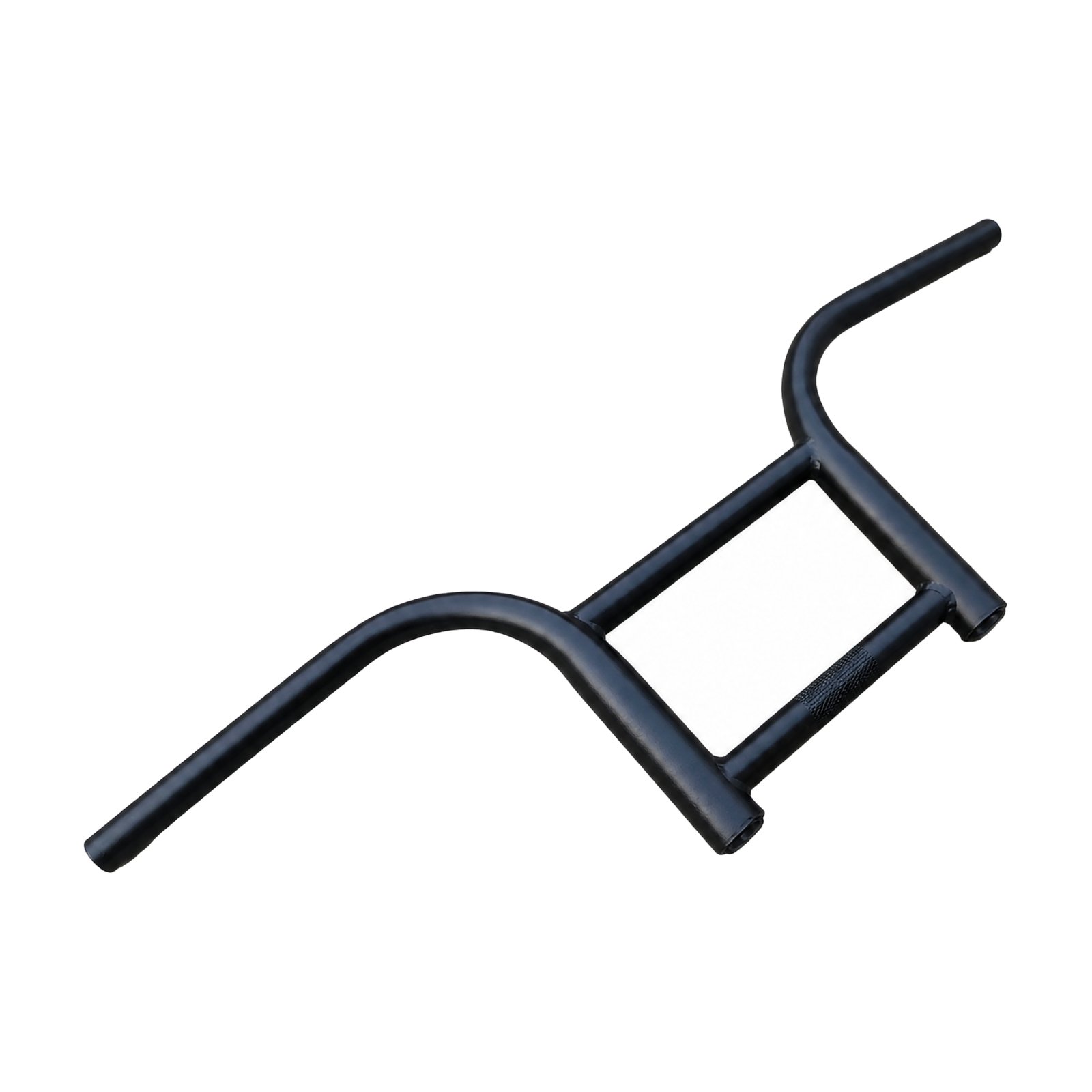

• 22.2mm Raised Curved Handlebar: raised curved handlebar for bike-style builds and trail use; installation diameter 22.2 mm; approximately 700 mm wide and 230 mm high, with 170 mm grip extension per side; black finish; what is included: not listed.
• Steel Handlebar Tube 22mm: elevated handlebar tube for standard 22 mm clamp use; total length 70 cm; material listed as steel; cylindrical mounting ends; intended for motorcycles using a standard 22 mm clamp; what is included: not listed.
• Mountain Bike Handlebar Ends 22.2mm: not a handlebar; it is a pair of bicycle bar ends sized 22.2 mm; quantity 2x.
• Throttle Control Handlebar Grip 22Mm: not a handlebar; it is a throttle control grip sized 0.87 in / 22 mm.
• Handlebar Grips: not a handlebar; it is a pair of hand grips sized 22 mm, with the title also stating 7/8 in.
• Kids Bike Handlebar Grips: not a handlebar; it is a set of 2 kids bike grips sized 22 mm.

How to choose the right handlebar

The first filter is simple: match the clamp diameter. If your stem, riser, or mini bike bar clamps are made for the same standard named in Chrome Handlebars 22.2mm, 22.2mm Raised Curved Handlebar, Motorcycle Handlebar with Cross Brace, or Steel Handlebar Tube 22mm, then those are the relevant handlebar listings to compare.

After clamp size, think about bar shape. A low-height bent bar such as Chrome Handlebars 22.2mm suits compact mini bike and utility builds when you want a lower hand position and long straight grip sections for controls. A raised curved bar such as 22.2mm Raised Curved Handlebar makes more sense when the build needs extra rise and a wider, more upright stance.

Width and rise matter because they change steering feel, rider posture, and control placement. 22.2mm Raised Curved Handlebar gives you a quoted width and height, while Chrome Handlebars 22.2mm gives a quoted overall length. If a listing does not state sweep or center clamping width, measure your current bar and make sure your clamps, levers, throttle, and switch gear all have enough straight section to mount securely.

Material is a practical choice, not just a style choice. Steel Handlebar Tube 22mm is listed as steel, which many builders choose for a traditional utility setup, while Motorcycle Handlebar with Cross Brace is listed as aluminum alloy and also has a cross brace, which can appeal if you want a lighter front-end feel and the look of a braced bar. The right pick depends on your preferred shape and whether your build uses motorcycle-style controls or bicycle-style controls.

How the pieces work together

A handlebar is only one part of the control setup. The clamp or stem holds the center of the bar, then grips, throttle tubes, brake levers, and switches mount on the straight outer sections. That is why diameter alone is not enough; you also need enough usable straight area for the controls already on your mini bike, kids bike conversion, or utility build.

If you are building around motorcycle-style controls, the grip and throttle side usually expect a bar diameter that matches those parts. Throttle Control Handlebar Grip 22Mm and Handlebar Grips show the common control and grip size used on many builds, but they are not handlebars themselves. They only tell you what size grip area those accessories are made for.

For smaller pedal-bike or kids-bike projects, Kids Bike Handlebar Grips and Mountain Bike Handlebar Ends 22.2mm also use the same nominal size, but again they are accessories, not bars. Grips slide onto the outside of the handlebar, and bar ends mount at the ends of an open bicycle handlebar. They do not replace the main bar and they do not tell you the clamp area shape in the center.

A practical way to shop is to choose the handlebar first, then confirm that your grips and controls are intended for that same outside diameter. If you already own the controls, remove one grip and measure the bare bar and the clamp area before ordering a replacement bar.

Common mistakes to avoid

The most common mistake is buying grips or bar ends when you actually need a full handlebar. Kids Bike Handlebar Grips, Throttle Control Handlebar Grip 22Mm, Handlebar Grips, and Mountain Bike Handlebar Ends 22.2mm all mention the same handlebar accessory size family, but none of them are handlebars. They fit onto a bar of that size rather than serving as the bar itself.

Another mistake is assuming every listing in this size family has the same shape and control room. It does not. Chrome Handlebars 22.2mm is described as a low-height bent bar for mini bikes, while 22.2mm Raised Curved Handlebar is a raised curved style with a very different riding position and accessory layout. Pick the shape that matches the build, not just the diameter.

Also avoid guessing based on the word bike alone. Some listings are aimed at motorcycle-style projects, some at electric bike style builds, and some at pedal-bike accessories. The safer approach is to verify clamp diameter, center section fit, grip area diameter, and whether you need a cross brace, extra rise, or a lower profile.

Finally, do not rely on package size as a fit measurement. Use the actual handlebar dimensions stated in the product description, and if the listing leaves out a dimension you need, measure your current bar and compare before ordering.

A typical kit

1. Chrome Handlebars 22.2mmLow-height handlebar for mini bike and compact utility builds that need the standard control diameter stated in the listing.
2. 22.2mm Raised Curved HandlebarRaised handlebar for more upright bike-style or trail-oriented builds that need extra height and width.
3. Motorcycle Handlebar with Cross BraceBent handlebar with a cross brace for builds that want a braced motorcycle-style setup.
4. Steel Handlebar Tube 22mmSteel elevated handlebar for standard clamp mounts when you want a simple replacement bar with a classic utility shape.
5. Handlebar GripsHand grips that fit the outer grip area of a matching handlebar after you have chosen the correct bar.
6. Kids Bike Handlebar GripsKids bike grips for small-bike projects using a matching handlebar, not a replacement for the bar itself.
