When you need an engine timing tool kit and how to pick one

When a timing tool kit is necessary

A timing tool kit becomes important any time you are opening a timing drive and the engine must go back together in exact sync. Typical jobs include timing belt replacement, timing chain replacement, camshaft service, engine rebuild work, and some cylinder head repairs where the rotating parts can move out of position.

The main reason to use these tools is repeatable alignment. A locking kit such as Engine Timing Tool Set is meant to hold the camshaft and crank mechanism in place during belt or chain service, while a more application-specific set such as Automotive Timing Tool Kit supports camshaft alignment on its listed engines.

Sometimes you do not need a full kit, but you still need one dedicated tool for a critical step. Wear-Resistant Camshaft Timing Tool is for locking the flywheel at Top Dead Center during timing chain work on its listed engines, and Timing Chain Tensioner Tool is used to hold the timing chain tensioner in position so tension can be controlled during service.

If your repair procedure calls for locking plates, alignment pins, or a way to hold a shaft at a fixed reference point, do not try to substitute hand tools. Timing work depends on exact positioning, and the correct tool reduces the chance of reassembly errors.

How to choose the right kit

Start with fitment, not appearance. Many timing tools look similar, but they are often shaped for one engine family only. Timing Gear Locking Tool is specifically described for M276 engines, 6-Piece EA211 Timing Tool Kit is a 6-piece kit for its listed engine timing work, and 10-Piece Engine Timing Tool Set is a 10-piece set intended for its listed applications. If the listing does not clearly match your engine code or application, stop and verify before buying.

Next, choose by the kind of operation you are doing. For basic locking and alignment, a compact set like Engine Timing Tool Set may be enough. For more involved jobs, Camshaft Locking Timing Tool Kit includes camshaft alignment and locking tools, timing pins, a drive shaft locking tool, and an injector removal tool, which makes sense when the repair procedure includes more than just belt indexing.

Think about whether you need a complete kit or a single-purpose tool. Steel Camshaft Timing Tool is a steel camshaft rotating tool meant for controlled rotation and fine adjustment during belt or chain replacement, so it complements a locking kit rather than replacing one. Timing Chain Tensioner Tool is similarly specialized because it manages the chain tensioner, not the whole timing system.

Storage matters more than it seems. Timing tools often include small pins, brackets, and fasteners that are easy to mix up. Kits like Automotive Timing Tool Kit, Camshaft Locking Timing Tool Kit, and 6-Piece EA211 Timing Tool Kit all come in fitted cases, which helps keep the pieces sorted so you can follow the service order without hunting for parts.

How the pieces work together during the job

A timing job usually follows a sequence. First, the engine is turned to its reference position. Then one or more parts are locked so they cannot move. After that, belt, chain, sprocket, or tensioner work is carried out, and finally the engine is checked again before final assembly.

Different tool types handle different parts of that sequence. A camshaft locking tool such as Timing Gear Locking Tool or Engine Timing Tool with Handle holds the camshaft in the correct position. A flywheel lock like Wear-Resistant Camshaft Timing Tool keeps the rotating shaft from moving away from Top Dead Center. A tensioner tool like Timing Chain Tensioner Tool controls the chain tensioner so slack and preload are managed during service.

Some jobs also require careful movement rather than only locking. Steel Camshaft Timing Tool is useful when the procedure calls for controlled camshaft rotation to line up marks or relieve load before installation. In a broader kit such as Camshaft Locking Timing Tool Kit, locking plates, pins, and adapters are intended to be used in combination so several engine components stay synchronized while parts are removed and reinstalled.

The key idea is that no single tool does everything. A complete timing setup usually combines a reference lock, a camshaft locator or holder, and sometimes a tensioner or rotating tool, depending on the engine design and the repair steps in the manual.

Common mistakes to avoid

The biggest mistake is buying a kit that only looks close. Engine timing tools are application-specific, and even a well-made set will not help if the plate shapes, pin sizes, or fixture layout do not match your engine. If the listing gives an engine family, displacement range, or dedicated application like Automotive Timing Tool Kit or Timing Gear Locking Tool, match that information exactly to your vehicle identification details and service information.

Another mistake is assuming a larger kit is automatically better. Camshaft Locking Timing Tool Kit is a broad kit for complex maintenance, but if your procedure only calls for a simple locking step, a focused tool or smaller set can be more practical. Buy the pieces that match the repair steps you will actually perform.

Do not confuse holding with adjusting. Engine Timing Tool with Handle is for camshaft fixing, while Steel Camshaft Timing Tool is for controlled camshaft rotation and fine adjustment. If your procedure needs both actions, you may need both tool types.

Finally, do not rely on paint marks or improvised clamps in place of proper locks. Timing errors can come from very small movement, so check that the kit includes the specific locking, pinning, and tension-control pieces named in your repair procedure before you start.

A typical kit

1. Engine Timing Tool SetUse this as a general locking and alignment set when your service procedure needs both camshaft and crank locking pieces.
2. Automotive Timing Tool KitChoose this when your engine matches its listed applications and you want a case-organized fixture set for repeat timing work.
3. Steel Camshaft Timing ToolAdd this when the job requires controlled camshaft rotation or fine adjustment during belt or chain service.
4. Wear-Resistant Camshaft Timing ToolUse this to lock the flywheel at Top Dead Center on its listed engine applications.
5. Timing Chain Tensioner ToolPick this when the repair procedure calls for fixing the timing chain tensioner in position during service.

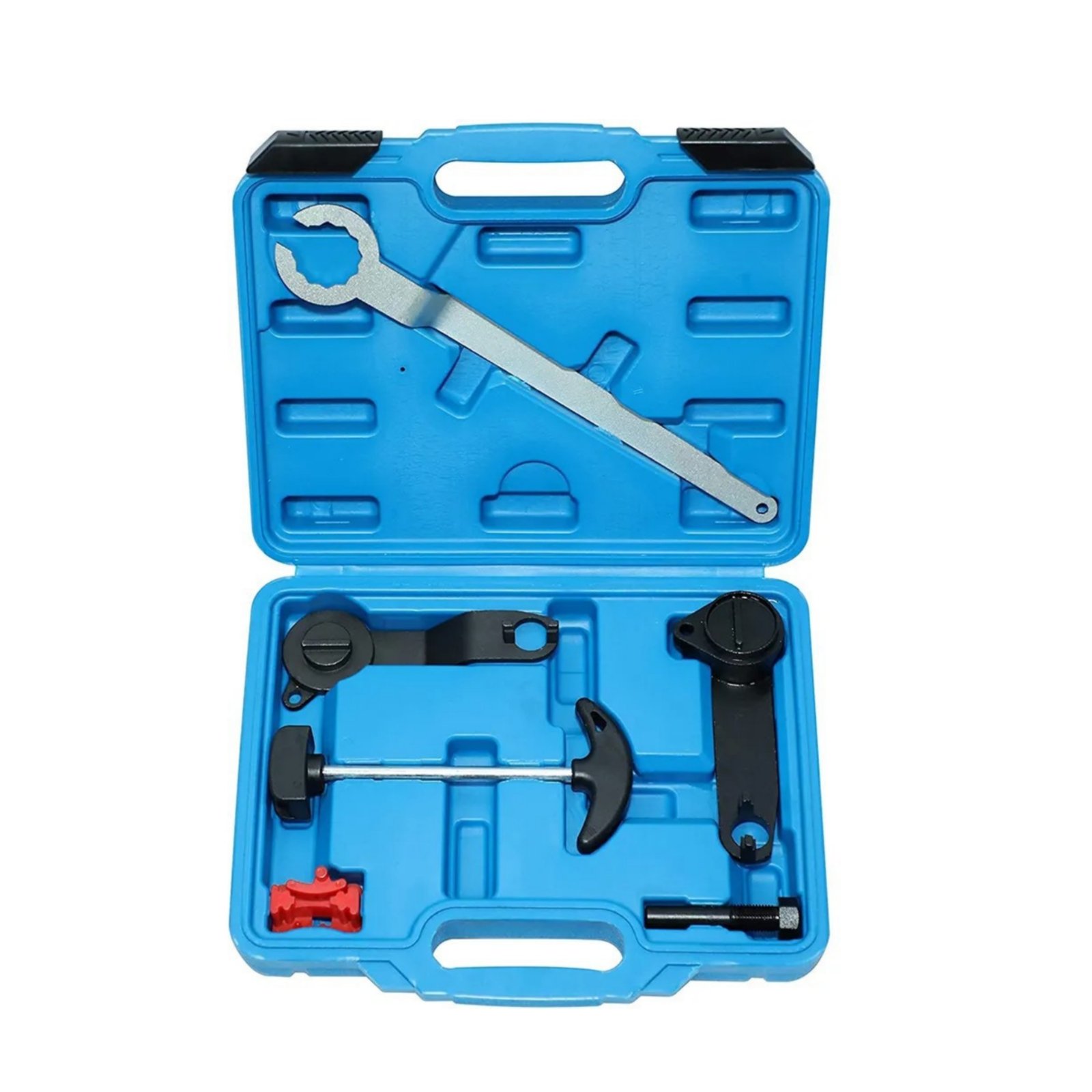

6. 6-Piece EA211 Timing Tool KitChoose this complete 6-piece kit when your engine matches its listed application and you want the main timing pieces in one case.
