What replacement parts fit an exercise or spin bike

Start by matching the attachment style

The safest way to choose a replacement part for an exercise or spin bike is to identify where the old part mounts and how it connects. Indoor bikes can look similar while using different pedal threads, saddle mounts, handlebar trim shapes, display plugs, or backrest hole spacing.

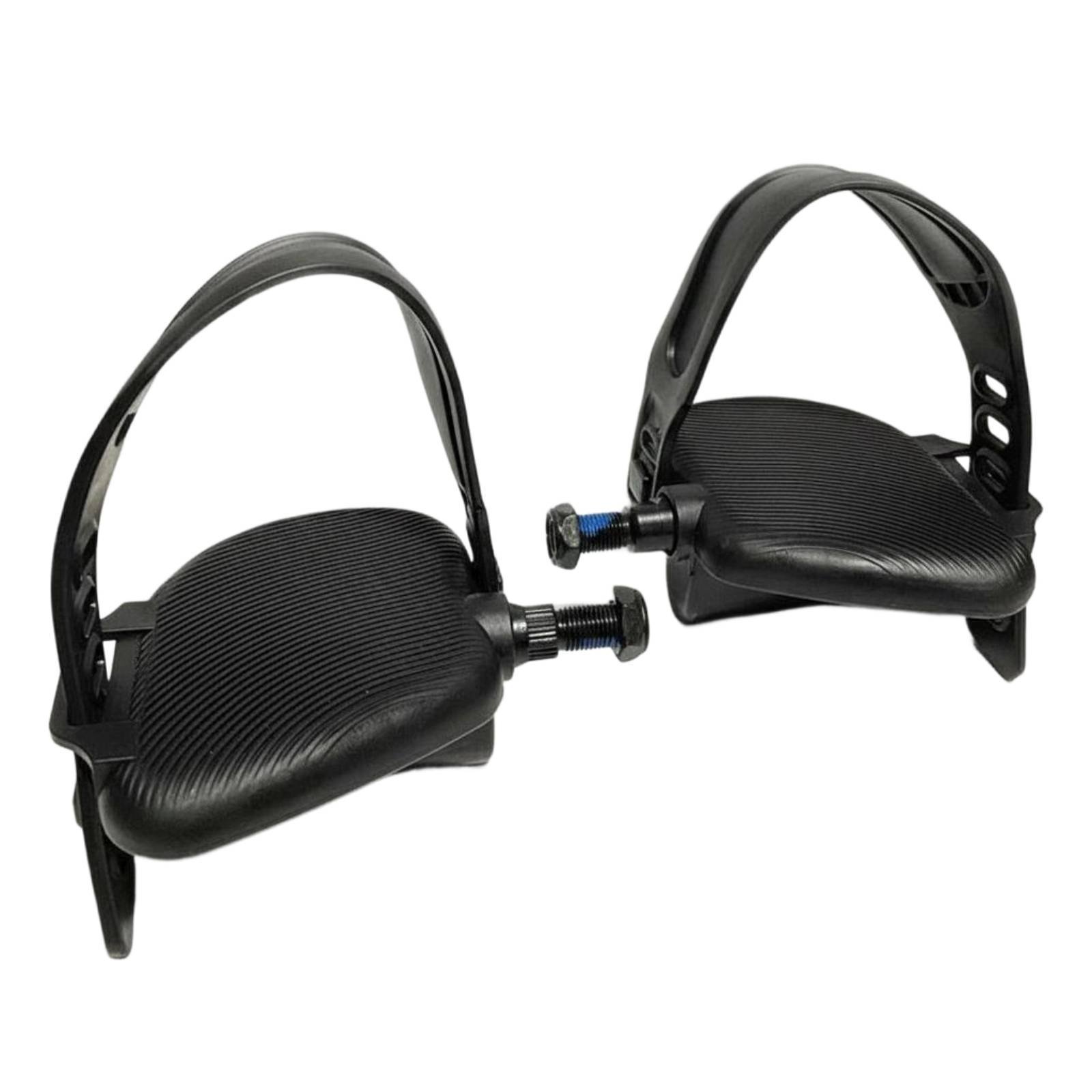

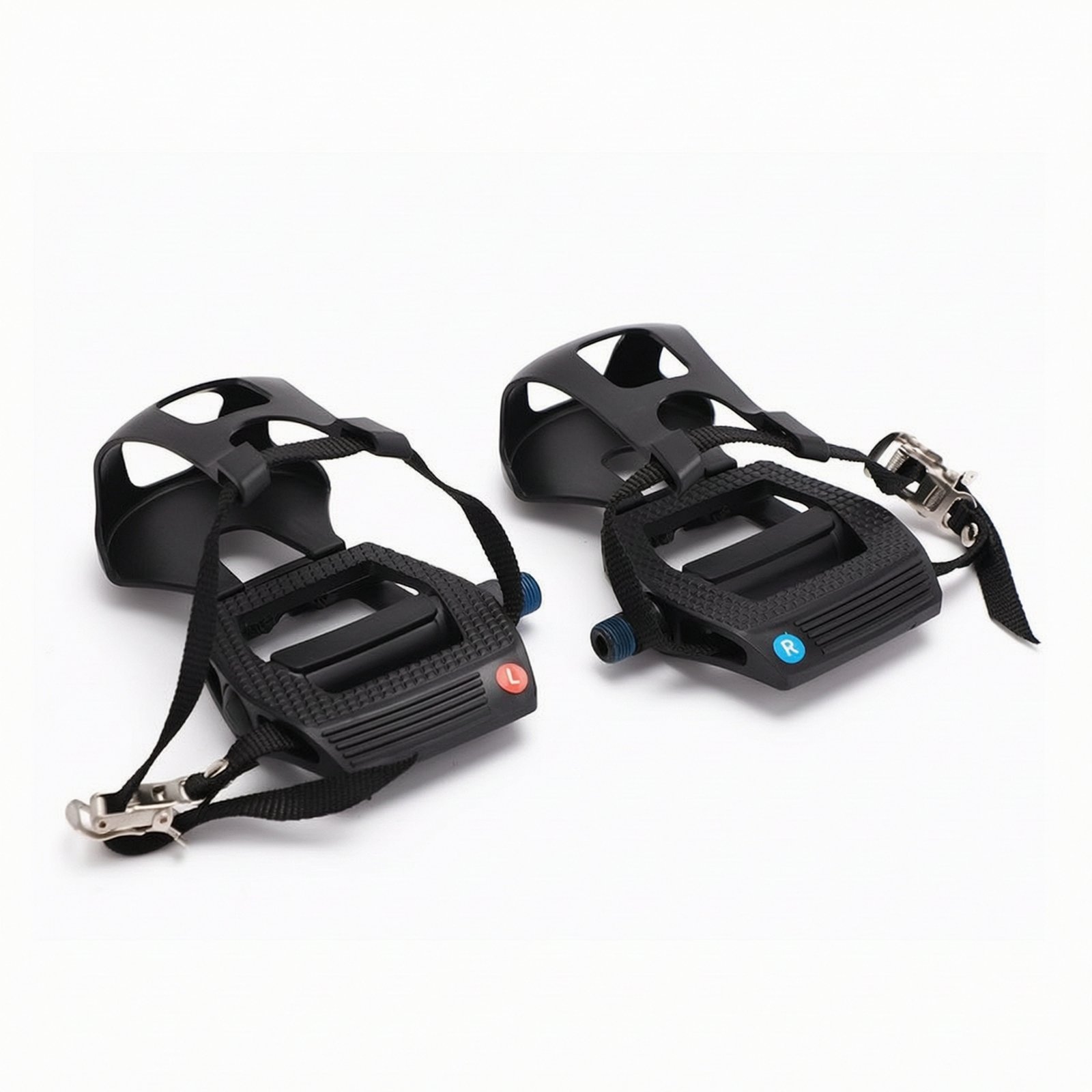

For pedals, check the spindle size and thread style on your current bike before ordering. 2-Piece Stationary Bike Pedals with Straps is useful when you already know your bike takes a standard 14 mm (9/16") or 12.7 mm (1/2") spindle diameter, while Exercise Bike Pedals with Toe Cage is a good example of a pedal set with toe cages and adjustable straps for stationary bikes, but you still need to confirm your bike’s spindle and left/right threading.

For seats, do not assume every stationary bike saddle uses the same base. Cushioned Exercise Bike Saddle is specifically described with a 109 x 134 mm hole option and includes mounting nuts, which makes the mounting pattern the key fact to compare against your current saddle base. Bike Seat Replacement Soft Wide is another exercise bike seat option, but since the description does not list the rail or bolt pattern, you should compare the underside of your old seat before choosing.

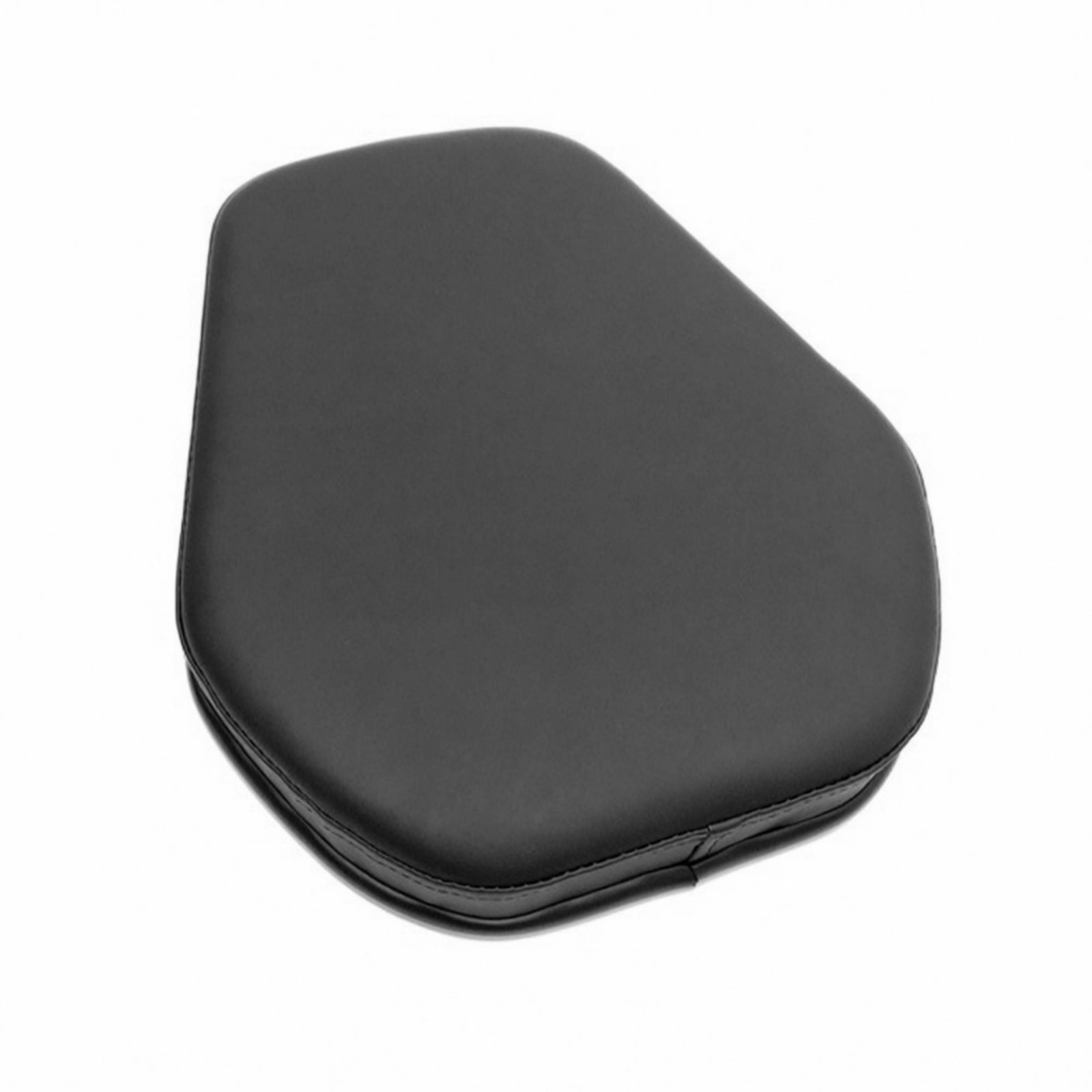

For back support parts, first confirm that your bike is a recumbent model. Exercise Bike Backrest Cushion gives concrete mounting information with a 295 mm by 365 mm by 55 mm profile and 125 mm horizontal plus 115 mm vertical hole spacing, so it only fits bikes with that layout, while Exercise Bike Backrest Mesh is described as a recumbent backrest attachment and should be checked the same way against your frame and bolt locations.

Choose parts by the problem you are trying to fix

A good replacement starts with the symptom. If your feet slip or the straps are worn, look at pedals first. If the bike pedals wobble at the arm or the square interface is damaged, the crank arm may be the real part that needs replacement rather than the pedal itself.

For foot security, Exercise Bike Pedal Anti Slip and 2-Piece Stationary Bike Pedals with Straps both suit indoor riding where a non-slip pedal surface matters. Exercise Bike Pedals with Toe Cage adds a toe cage and adjustable strap, which helps riders who want more foot retention during harder efforts.

If the seat feels collapsed, cracked, or unstable, replacing the saddle is usually more effective than adding a cover. Cushioned Exercise Bike Saddle is aimed at exercise bikes and rehabilitation equipment and includes mounting nuts, making it a practical fix when the original hardware is missing. Bike Seat Replacement Soft Wide fits the same general use case when you want a wider, softer replacement, but fit still depends on the mounting interface under the seat.

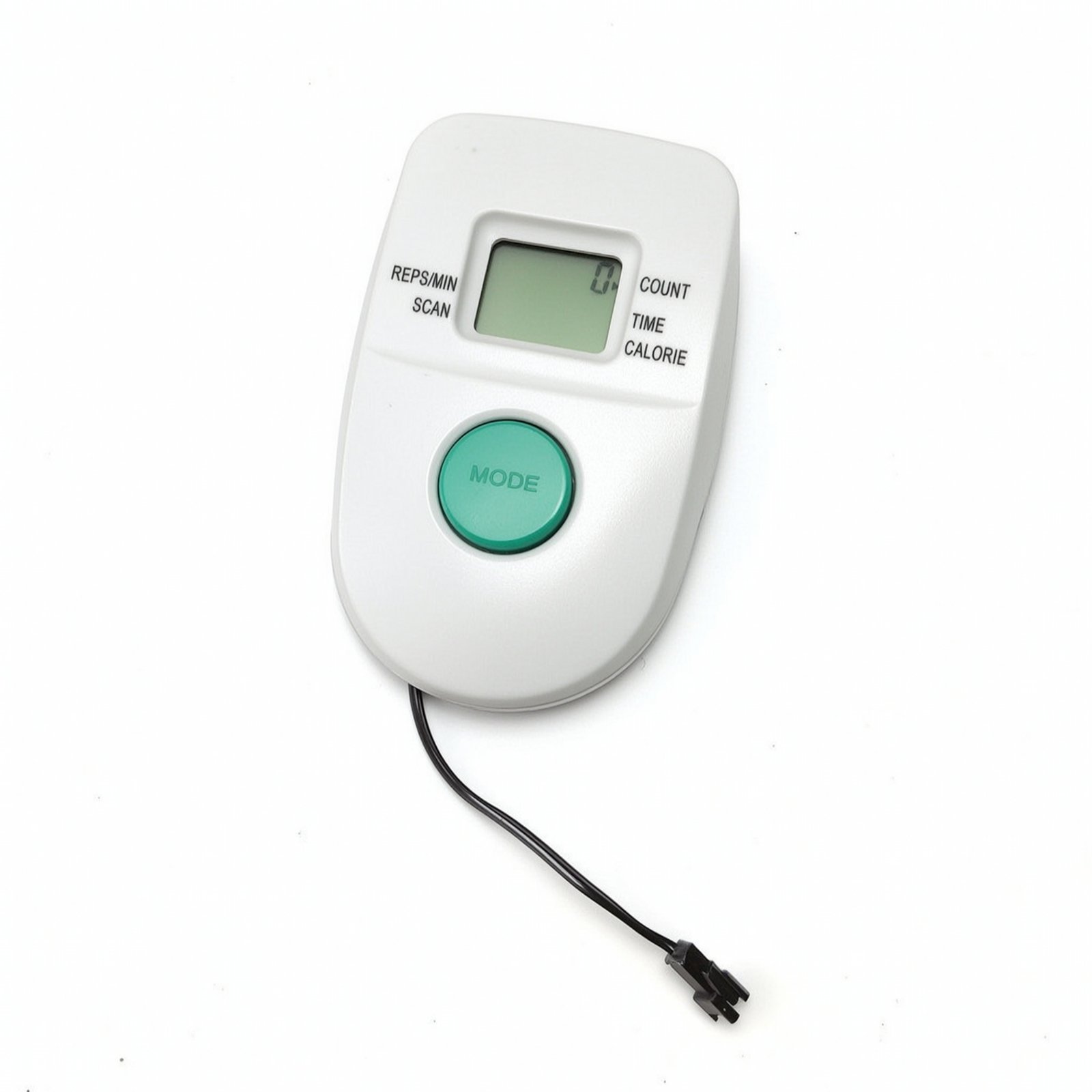

If the console no longer tracks motion, the display may be replaceable without replacing the whole bike. Stepper Display Meter is a wired replacement meter with a two-pin connector, so the important check is whether your current machine also uses a wired sensor lead and matching connector style.

If a recumbent bike has worn upper-body support points, separate the backrest from the armrest when shopping. Exercise Bike Armrest Pad is an armrest pad with two threaded screw holes for installation onto the handlebar area, while Exercise Bike Backrest Cushion is a back cushion for the rider’s back support area, so they solve different comfort problems.

How the pieces work together on the bike

Exercise and spin bikes are simple systems, and fit problems often make more sense when you think in groups. The pedal threads into the crank arm, the saddle bolts to its seat support, the display connects to the motion sensor lead, and recumbent comfort parts attach to a dedicated seat frame rather than the drive system.

A pedal choice should always be checked together with the crank arm. Stationary Bike Crank Arm uses a standard 13 mm x 13 mm square hole interface at the bottom bracket side, and it is offered in multiple lengths including 127 mm, 140 mm, 152 mm, 165 mm, and 170 mm, so the arm length and axle interface both matter before pairing it with replacement pedals such as 2-Piece Stationary Bike Pedals with Straps.

Seat parts work as a set too. A replacement saddle like Cushioned Exercise Bike Saddle may include mounting nuts, but it still has to line up with your bike’s existing seat support. If you own a recumbent bike, a seat base problem and a backrest problem are separate issues, so a part like Exercise Bike Backrest Mesh or Exercise Bike Backrest Cushion will not replace a worn saddle on an upright bike.

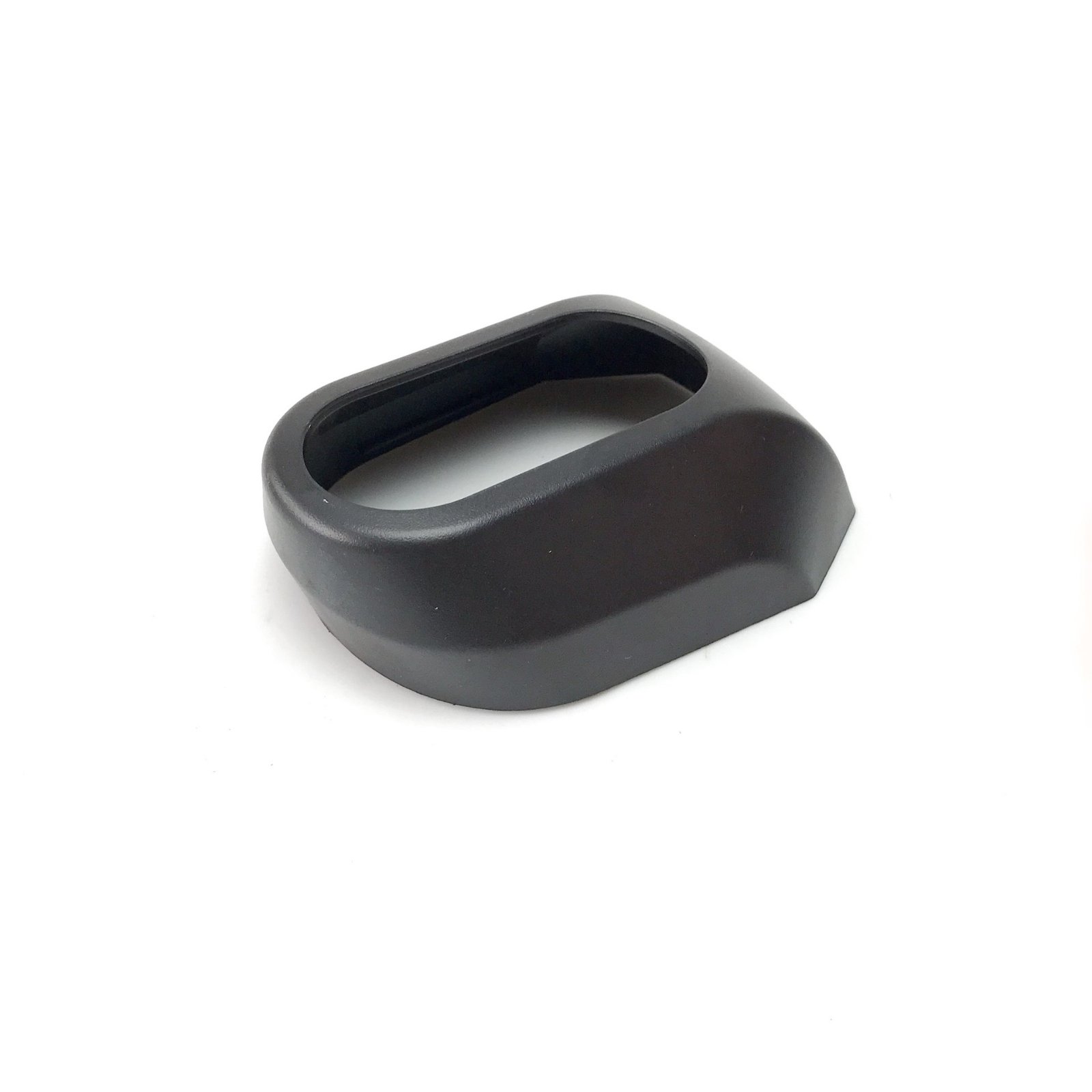

Electronic and cosmetic parts also have to match the bike’s layout. Stepper Display Meter needs the right wire and connector path to read movement, while trim pieces such as Decorative Exercise Bike Handlebar Cover only cover and protect the central handlebar mounting area rather than changing fit, comfort, or pedaling.

Common mistakes to avoid before ordering

The most common mistake is buying by appearance alone. Two pedals or two seats can look alike in photos but use different threads, bolt spacing, or frame shapes, so always remove the old part and compare the contact points first.

Another mistake is confusing upright and recumbent bike parts. Exercise Bike Backrest Mesh and Exercise Bike Backrest Cushion are for back support applications on recumbent-style setups, and they are not general replacements for standard spin bike saddles.

Do not overlook left and right orientation. Pedals and crank components often have side-specific installation, and Exercise Bike Pedals with Toe Cage specifically notes distinct L/R markings, which helps avoid cross-threading during installation.

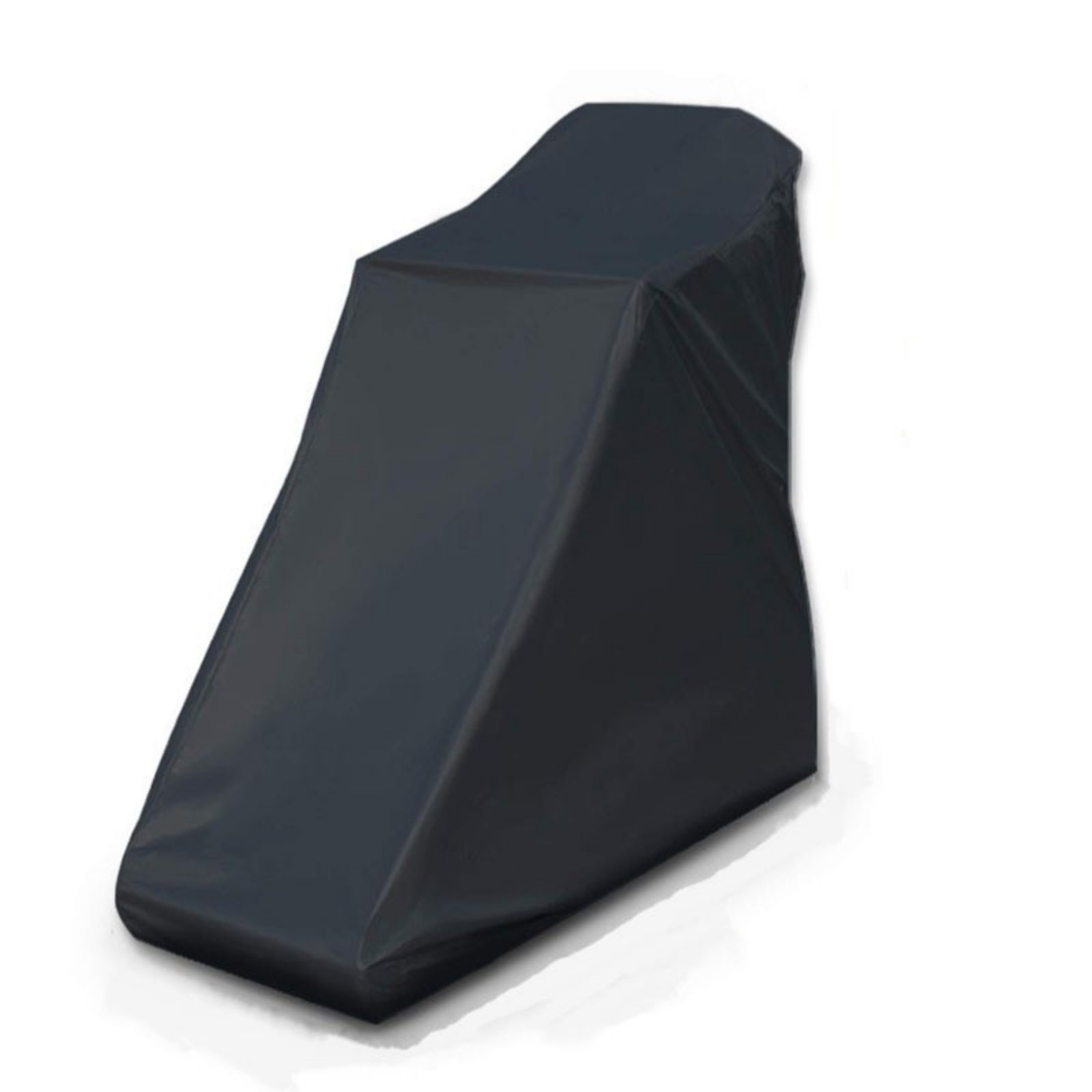

It is also easy to buy a useful accessory that does not solve the real issue. Exercise Bike Cover can help protect an upright bike with its 168 x 75 x 135 cm cover size, but it will not correct worn pedals, a damaged crank arm, or a dead display. Likewise, a trim piece like Decorative Exercise Bike Handlebar Cover can tidy the handlebar area, yet you should first confirm whether the actual problem is cosmetic or mechanical.

A typical kit

1. 2-Piece Stationary Bike Pedals with StrapsUse this when you need replacement stationary bike pedals and have already confirmed the spindle diameter your bike accepts.
2. Cushioned Exercise Bike SaddleThis is the seat option to consider when your original saddle is worn and your bike matches the listed mounting-hole pattern.
3. Stepper Display MeterChoose this when the bike still rides normally but the console display has failed and your machine uses a compatible wired connection.
4. Stationary Bike Crank ArmThis part replaces a damaged crank arm and must be matched to both the square-hole interface and the arm length used by your bike.
5. Exercise Bike Backrest CushionPick this for a recumbent bike that needs a new back cushion and matches the listed hole spacing on the support frame.
6. Exercise Bike Armrest PadThis solves worn forearm support on bikes that use separate armrest pads mounted with threaded holes.
