Caliper Head Locking Mechanism

About this item

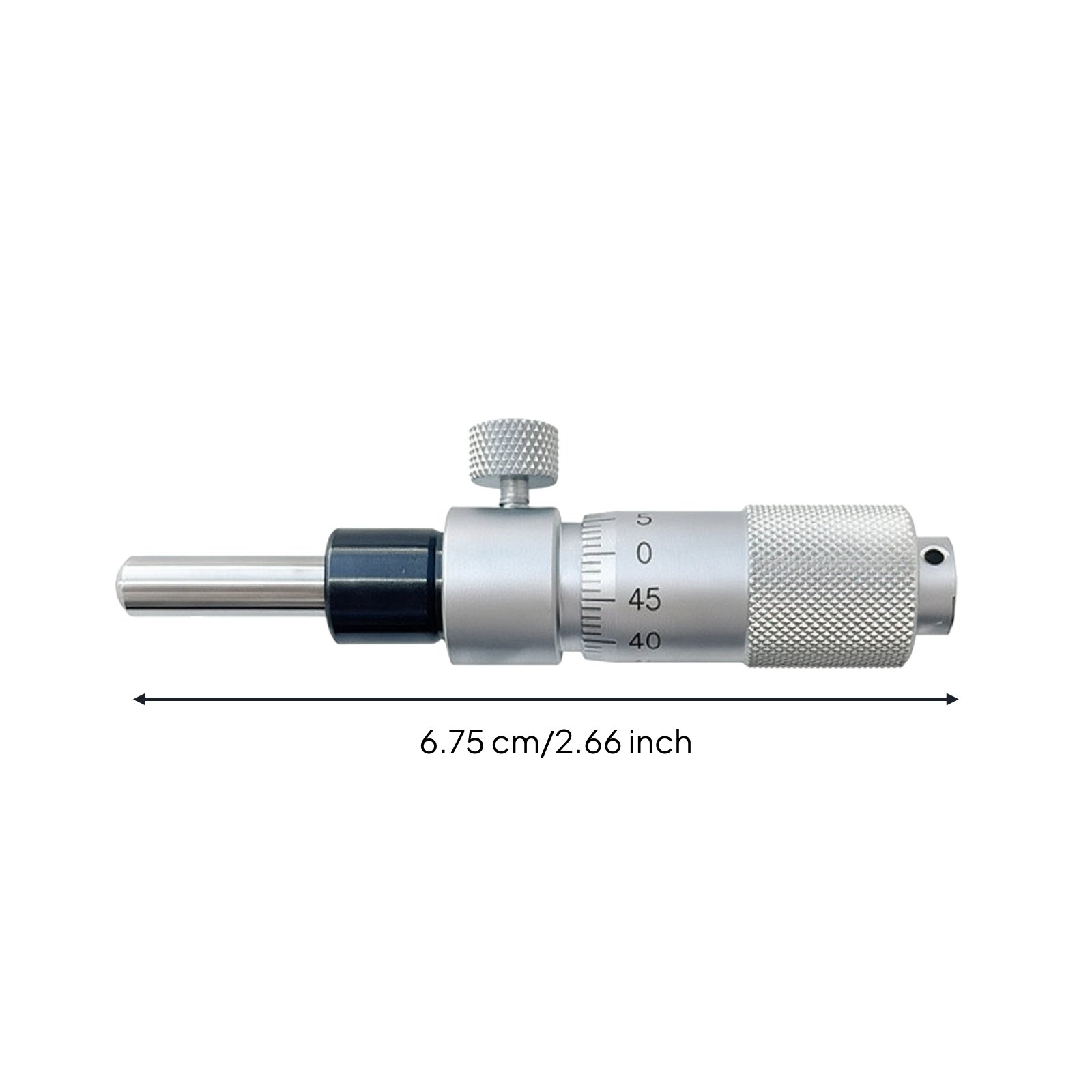

Product Type: This caliper head is a compact metal measuring tool designed for installation in compatible instruments and equipment, with a cylindrical body measuring approximately 67.5 mm long and 13 mm in diameter.
Core Function: As a precision measuring head, it delivers accurate measurements across a 0 to 13 mm range using a 5 mm diameter measuring spindle, making it suitable for fine dimensional checks in various applications.
Adjustment & Locking: This caliper head with locking mechanism features a side-mounted knurled locking screw to hold readings stable, paired with a knurled friction sleeve for smooth, controlled hand adjustment.
Readability: This caliper head with graduated scale uses a engraved marking system for clear, long measurement markings that remain legible even with regular workshop use.
Mounting & Use: The threaded mounting section allows secure installation into compatible setups, making this caliper head ideal for instrument building, equipment repair, and precision workshop projects.

This metal caliper head is a reliable measuring tool built for precision work in workshops, hobbyist projects, and instrument assembly. Its compact cylindrical body, roughly 67.5 mm in length and 13 mm in diameter, fits neatly into compatible equipment without adding unnecessary bulk, so you can integrate it into custom jigs, measuring fixtures, or repair setups with ease. As a precision measuring head, it covers a measurement range from 0 to 13 mm, with a 5 mm diameter measuring spindle that makes consistent, fine touch with workpieces. Whether you are gauging the thickness of, setting up machine components, or verifying dimensional accuracy during assembly, this tool delivers the level of control needed for detailed work. This caliper head with locking mechanism simplifies repeated measurements and setup tasks. The side-mounted knurled locking screw lets you secure the spindle at your desired reading, so you can remove the tool or reference the measurement later without losing your setting. The knurled friction sleeve provides a secure, non-slip grip for smooth, incremental hand adjustment, allowing you to face in exact positions with minimal effort. Clear, accurate readings are essential for any precision task, and this caliper head with graduated scale delivers thanks to its engraved markings. The engraved scale resists wear and fading, maintaining form and legible even through regular handling, oil exposure, and repeated use in busy workshop environments. Designed for versatility, the threaded mounting section ensures stable, secure installation in a wide range of compatible instruments and custom-built setups. From equipment repair and calibration work to hobbyist machining and instrument building, this caliper head brings level precision to your most detailed measurement tasks.

Option: Round No Nut
