Measuring Head Side Locking Knob

About this item

Fundamental Description: This metal Measuring Head head is a, workshop-ready measuring tool built with a silver metal finish and solid metal construction for long-term use in precision work environments.
Primary Function: As a precision measurement head, it delivers accurate measurements across a 0–6.5 mm measuring range, making it ideal for fine dimensional checks and small-part adjustments in engineering and machining tasks.

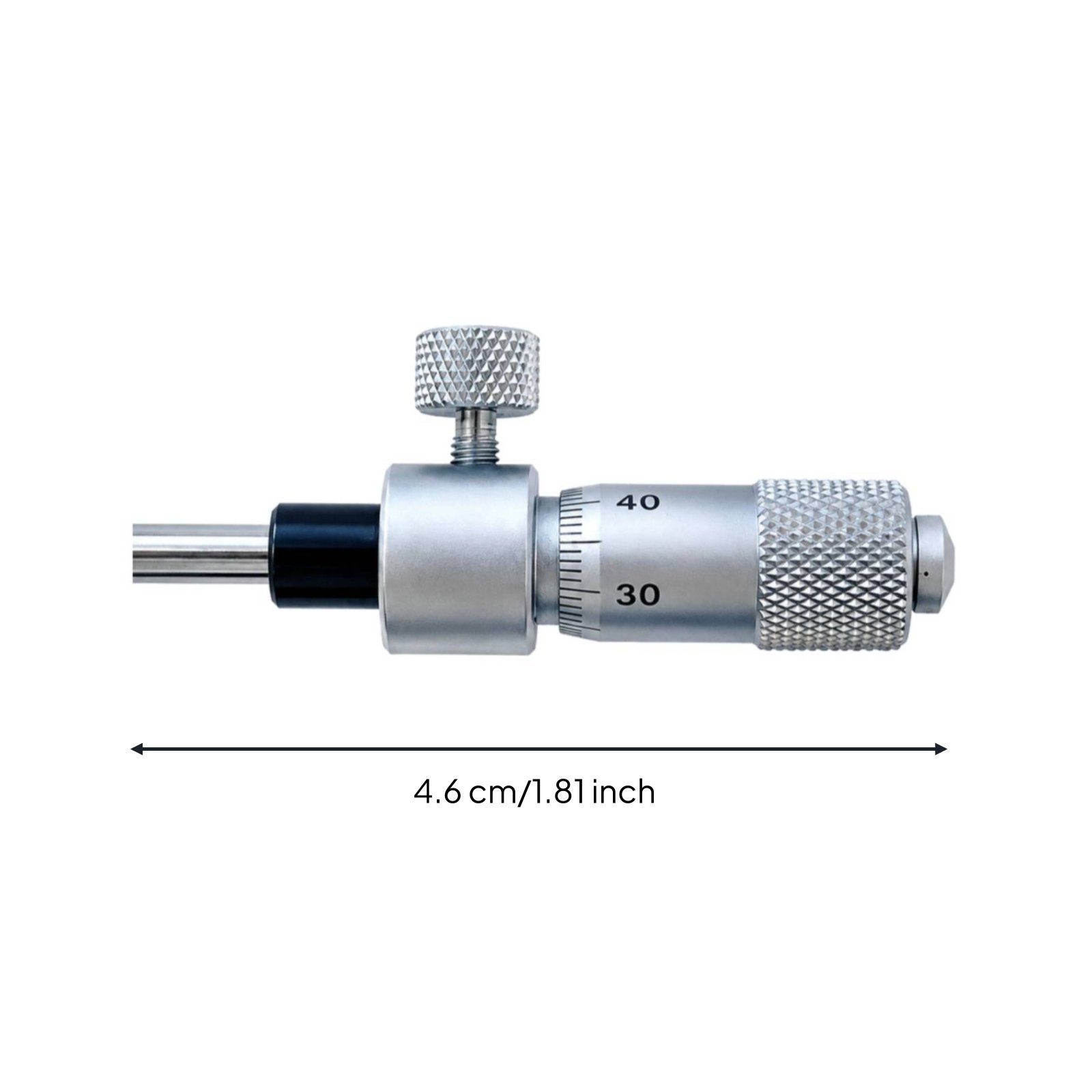

Design Features: This Measuring Head head features a cylindrical graduated sleeve with marked graduations, a knurled thimble for controlled turning, a 3.5 mm diameter spindle, and a compact 46 mm overall length for easy integration.

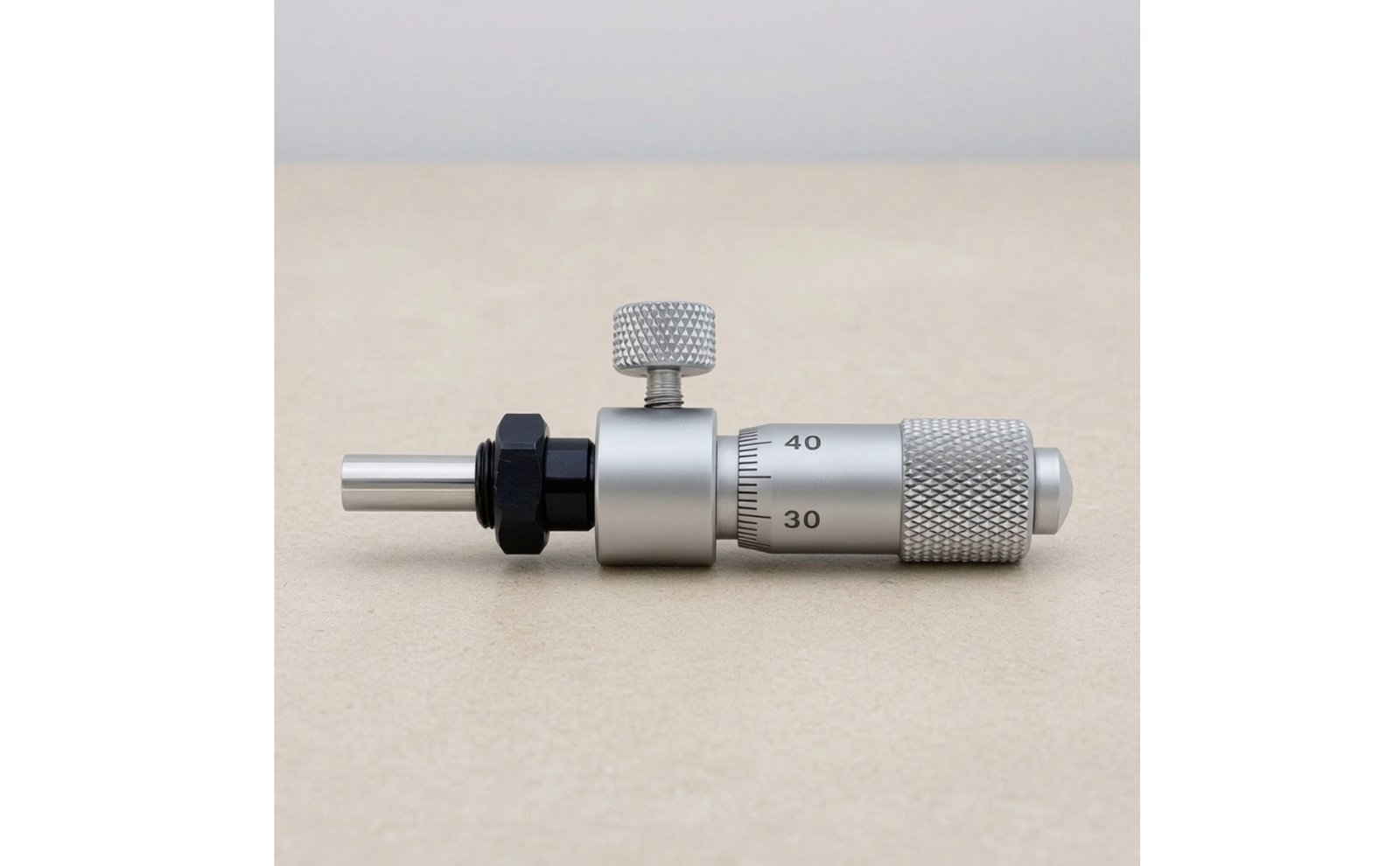

Key Feature: The Measuring Head head with side locking knob lets you secure the spindle position instantly with a 7 mm diameter side knob, ensuring stable, repeatable measurements without unwanted spindle unintended movement during setup or inspection.
Intended Use: Designed for installation in measuring instruments, inspection fixtures, and machine tools, this Measuring Head head supports machinists and engineers in achieving consistent, fine-tuned results in workshop and custom equipment builds.

Built for machinists, engineers, and workshop professionals, this metal Measuring Head head is a reliable measuring tool crafted from solid metal with a silver metal coating Its rugged construction stands up to typical workshop use, while its space-saving design fits seamlessly into custom setups and existing equipment alike. As a precision measurement head, it covers a 0–6.5 mm measuring range, giving you the fine resolution needed for small-part dimensional checks, tool positioning, and close-tolerance adjustments. Whether you are verifying part thickness, setting fixture offsets, or dialing in a machine stop, this range handles common precision tasks with confidence. This Measuring Head head is thoughtfully engineered for clear, responsive. It features a cylindrical graduated sleeve with marked measurement graduations that stay legible even with regular handling, a knurled thimble for a secure non-slip grip during fine adjustments, and a 3.5 mm diameter spindle that moves smoothly. With an overall length of 46 mm, a 6 mm middle section diameter, and a 9.5 mm thimble diameter, it equilibrium compactness with comfortable handling. The Measuring Head head with side locking knob adds a practical layer of control: once you have reached your target measurement, the 7 mm diameter side locking knob holds the spindle firmly in place. This is especially useful when you need to secure position for repeated checks, transfer a measurement, or keep a fixture setting stable during assembly or inspection work. Intended for installation in measuring instruments, machine tools, inspection fixtures, and custom-built equipment, this Measuring Head head turns everyday setups into more, repeatable systems. From machine shop workstations to engineering test benches, it helps you achieve consistent, fine-tuned results you can trust across a wide range of precision applications.

Option: Flat Head Wo Nut
