Pneumatic Positioning Fixture
Pneumatic Push-Press-Form Positioning Fixture Adjustable Positioning Fixture with Sliding Rod Rotatable for Production Workshops
$61.69 Free shipping · tax calculated at checkout
Arrives in 12–22 days · free shipping, tracked
Total $61.69 · free shipping · sales tax calculated at checkout
In stock · leaves our partner warehouse within 4 business days
- Ships from our partner warehouse in ChinaFree to the US · arrives in 12–22 days
- 30-day returnsUnused items · see policy
- Secure checkout by StripeWe never see your card number
- Questions?Contact us · reply in 1–2 business days
- Package size
- 25 × 18 × 22 cm (9.8 × 7.1 × 8.7 in)
- Weight
- 0.70 kg (1.54 lb)
- Material
- Metal, Aluminum
- Category
- Garage & Ride
- Delivery
- Free standard shipping to the US, 12–22 days from order, shipped from our partner warehouse in China
- Returns
- 30-day returns on unused items
Item DCD-10001543026
About this item

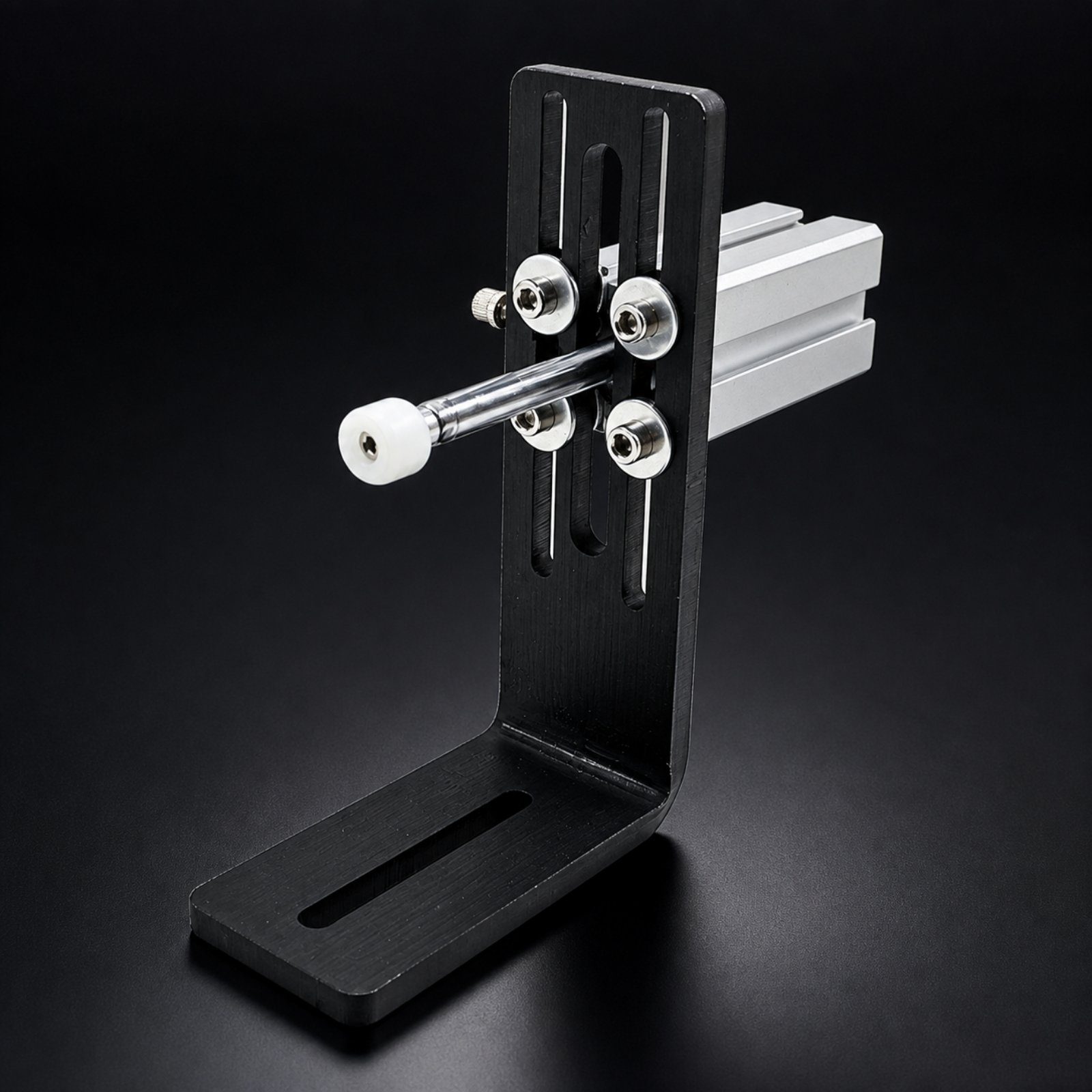

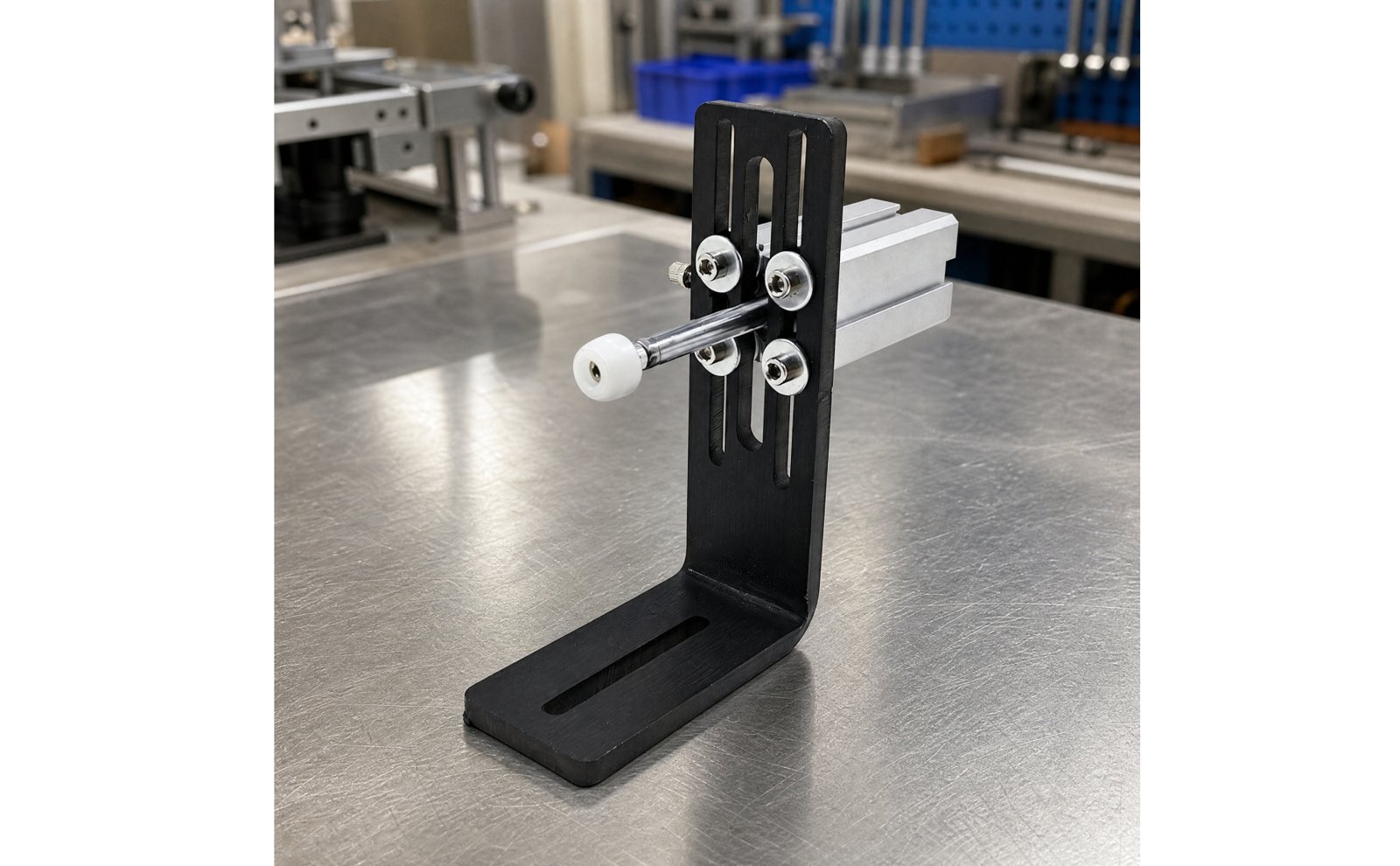

Product Identity: This pneumatic push-press-form positioning fixture is an L-shaped bracket assembly built for integration with pad-printing machinery, featuring a black vertical plate and a matching horizontal base for stable mounting.

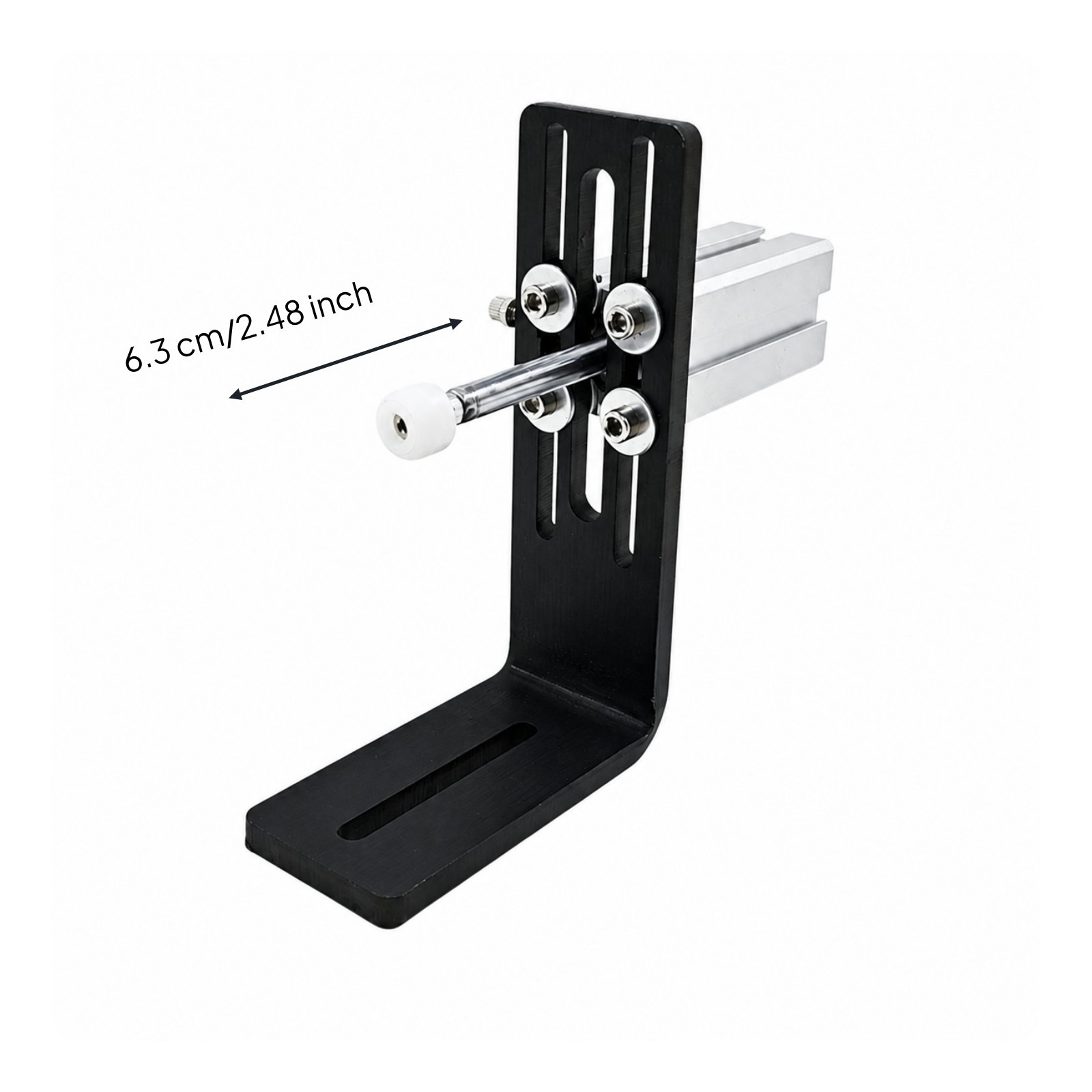

Core Function: As a pneumatic positioning fixture, it delivers controlled push-pull positioning with a 63 millimeter travel range, connecting to pneumatic systems to automate workpiece alignment during printing cycles.

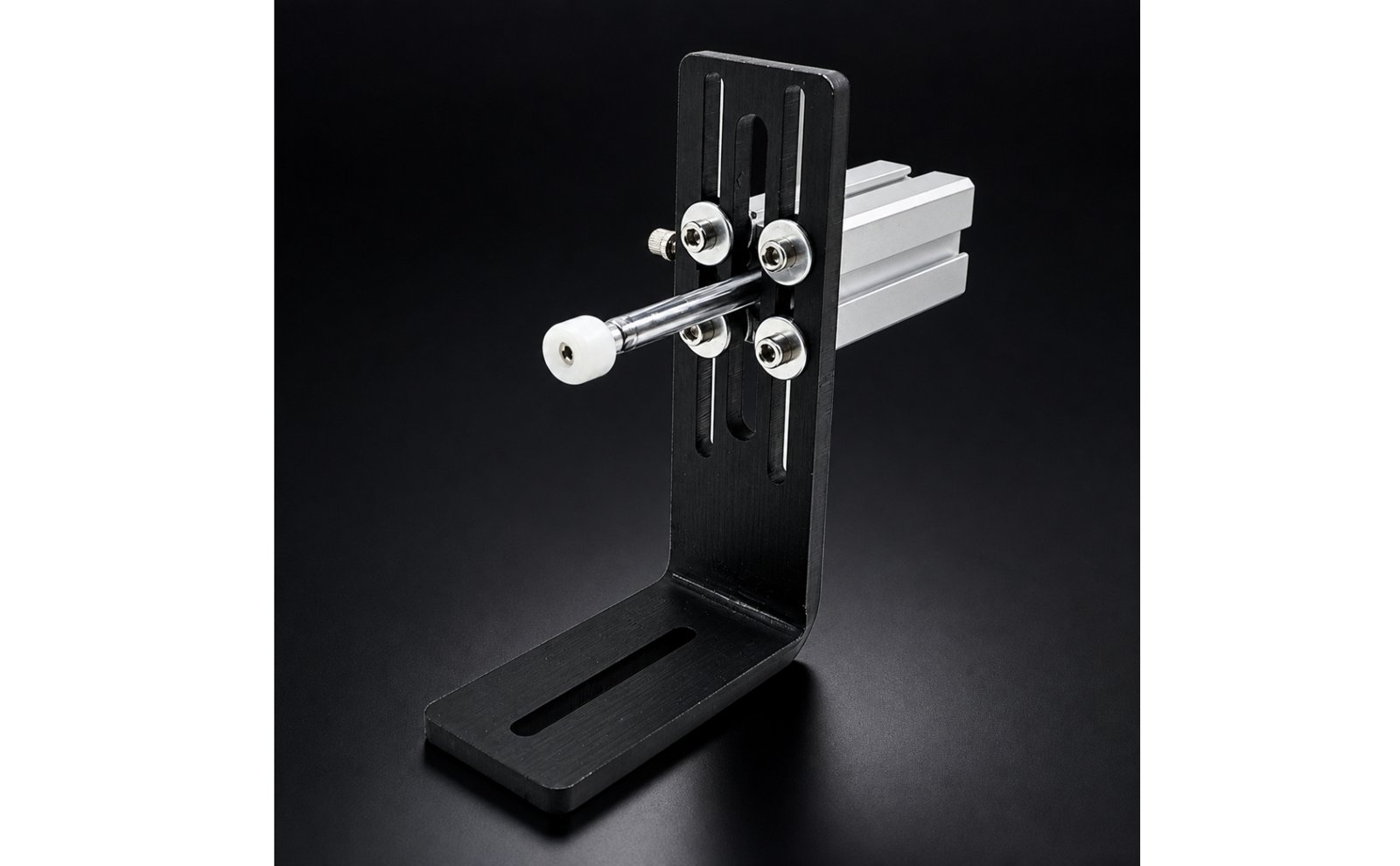

Adjustment Features: This adjustable positioning fixture incorporates elongated 6.5 mm adjustment slots, a mounted linear rail, a chrome sliding rod, and fastening hardware for fine-tuned setup and smooth linear movement.
User-Friendly Design: The pad-printing positioning fixture is equipped with a rotatable white positioning knob that lets employees make quick manual adjustments alongside its pneumatic
Intended Use: This fixture is engineered for use with metal workpieces and mechanical printing equipment, supporting repeatable clamping and positioning tasks for-production workshop environments.
If you work with pad-printing machinery and need consistent, repeatable workpiece alignment, this pneumatic push-press-form positioning fixture is built to support your daily production workflow. It takes the form of a sturdy L-shaped bracket with a black vertical plate and horizontal base, giving it a low-profile format that fits neatly onto printing equipment without taking up excess work surface. As a pneumatic positioning fixture, its primary role is automated push-pull positioning driven by a connected pneumatic system. With a 63 millimeter travel range, it delivers controlled, repeatable movement that helps manual setup time and keeps each print cycle aligned to the same reference point, cycle after cycle. This adjustable positioning fixture offers multiple ways to fine-set setup. The elongated 6.5 mm adjustment slots let you reposition the bracket on your machine base, while the mounted linear rail and chrome sliding rod ensure smooth, low-friction linear motion. All necessary fastening hardware is included, so you can secure the assembly firmly once adjustments are fullFor on-the-fly manual tweaks, the pad-printing positioning fixture features a rotatable white positioning knob that is easy to grip and twist This allows employees to make small precision adjustments quickly, without needing tools or interrupting the production stream for long. Weighing approximately 500 g, this fixture is designed specifically for use with metal workpieces and mechanical printing equipment. Whether you are running short batch jobs or high-volume production runs in a workshop setting, it helps standardize clamping and positioning steps so you can focus on print quality and output efficiency.
