Rotary Pad-Printing Fixture

About this item

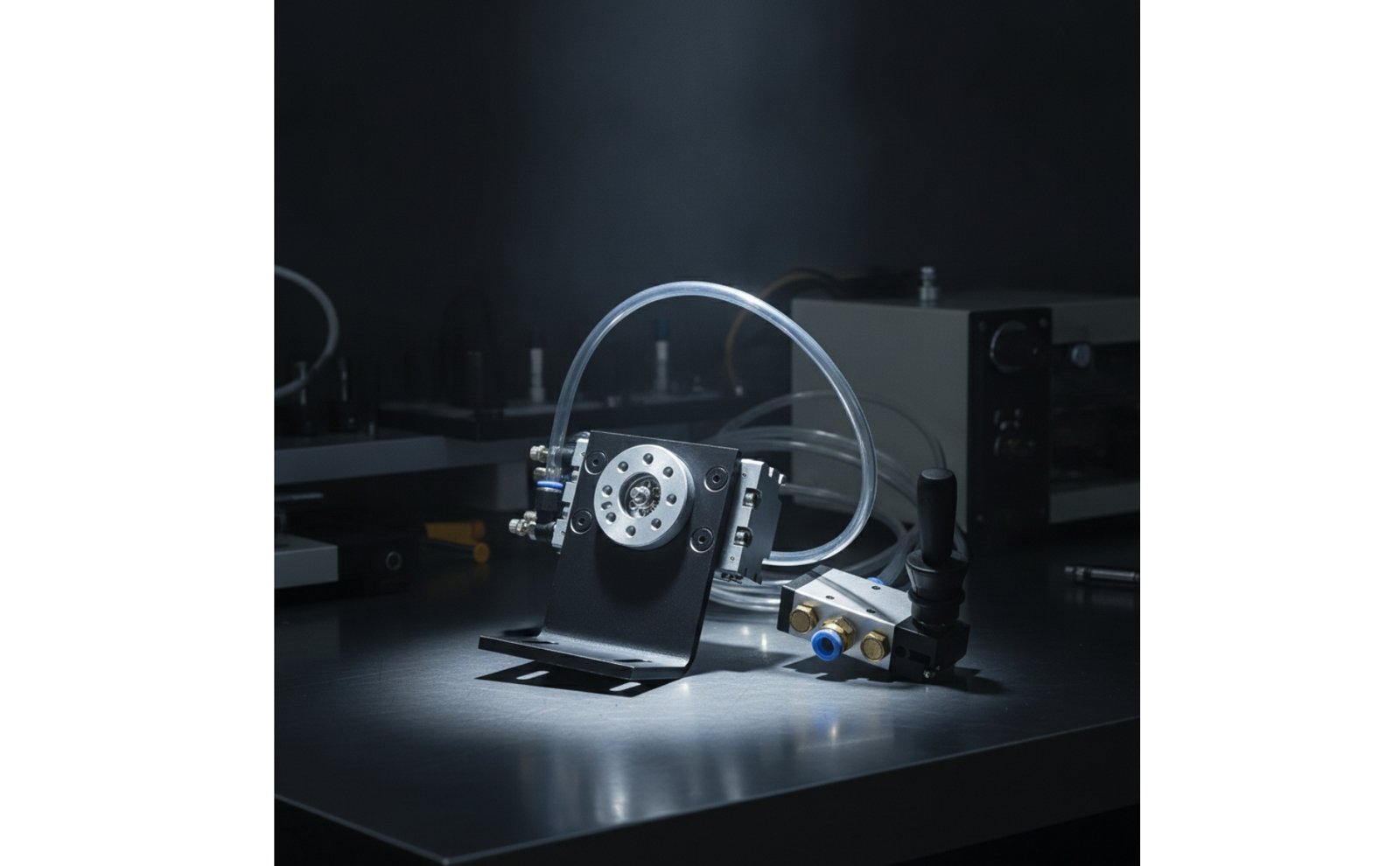

Product Identity: This rotary double-sided pad-printing fixture is a metal mechanical assembly designed for integration with special printing equipment and industrial machinery, serving as a dedicated work-holding solution for precision printing tasks.
Core Function: As a rotary printing fixture, it supports adjustable angle positioning from 0 to 180 degrees, enabling controlled rotary movement to present multiple workpiece faces to the printing head during

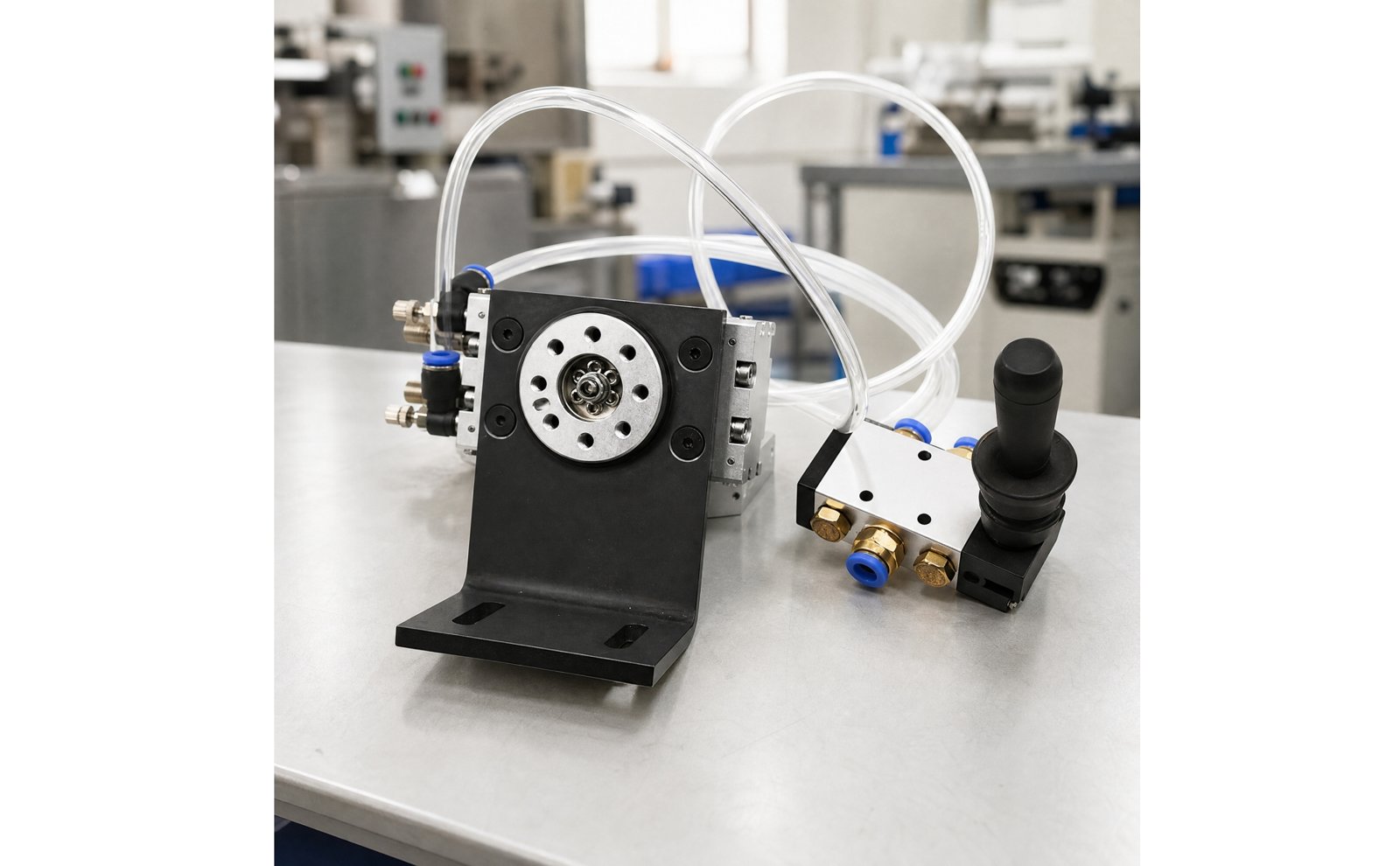

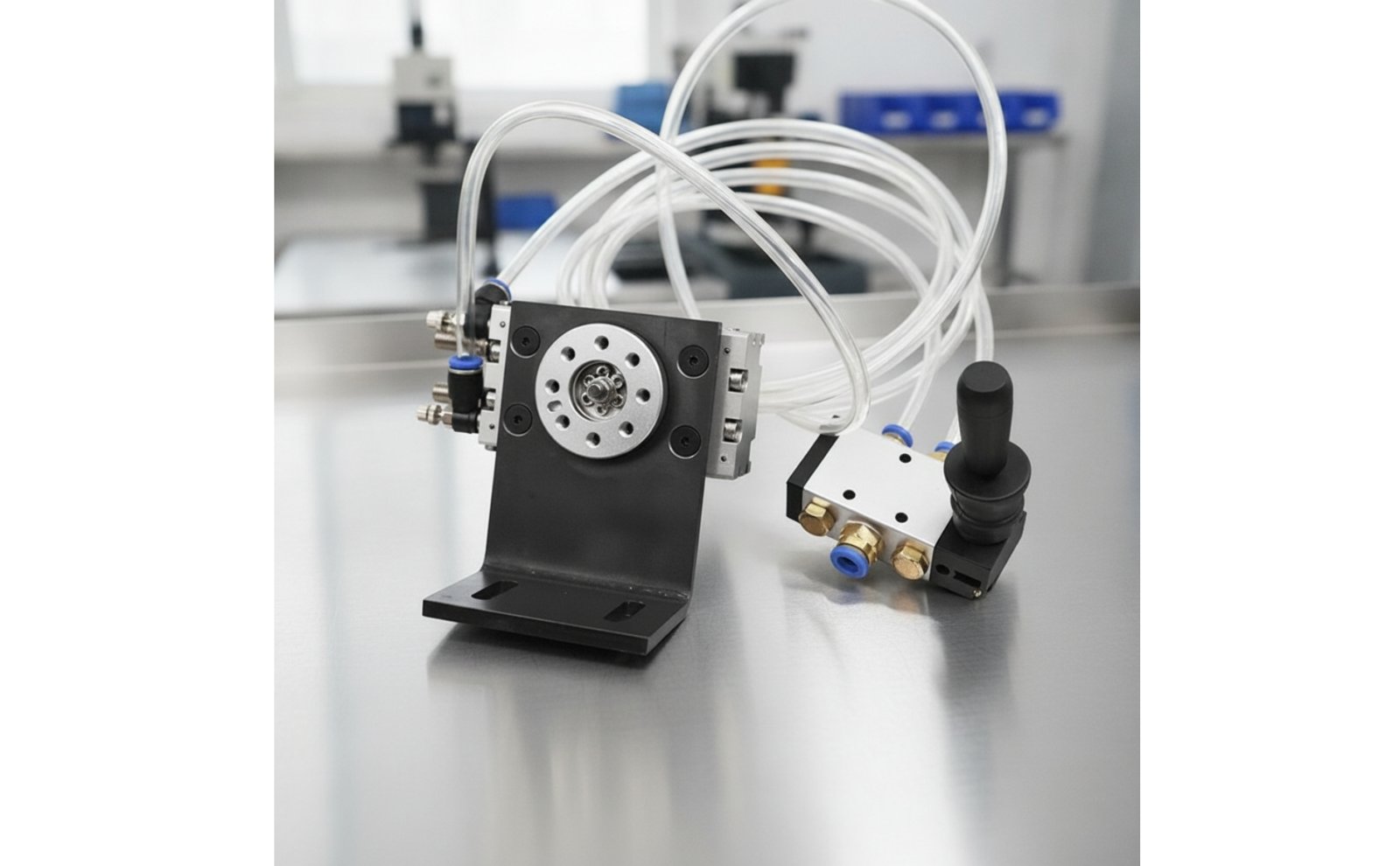

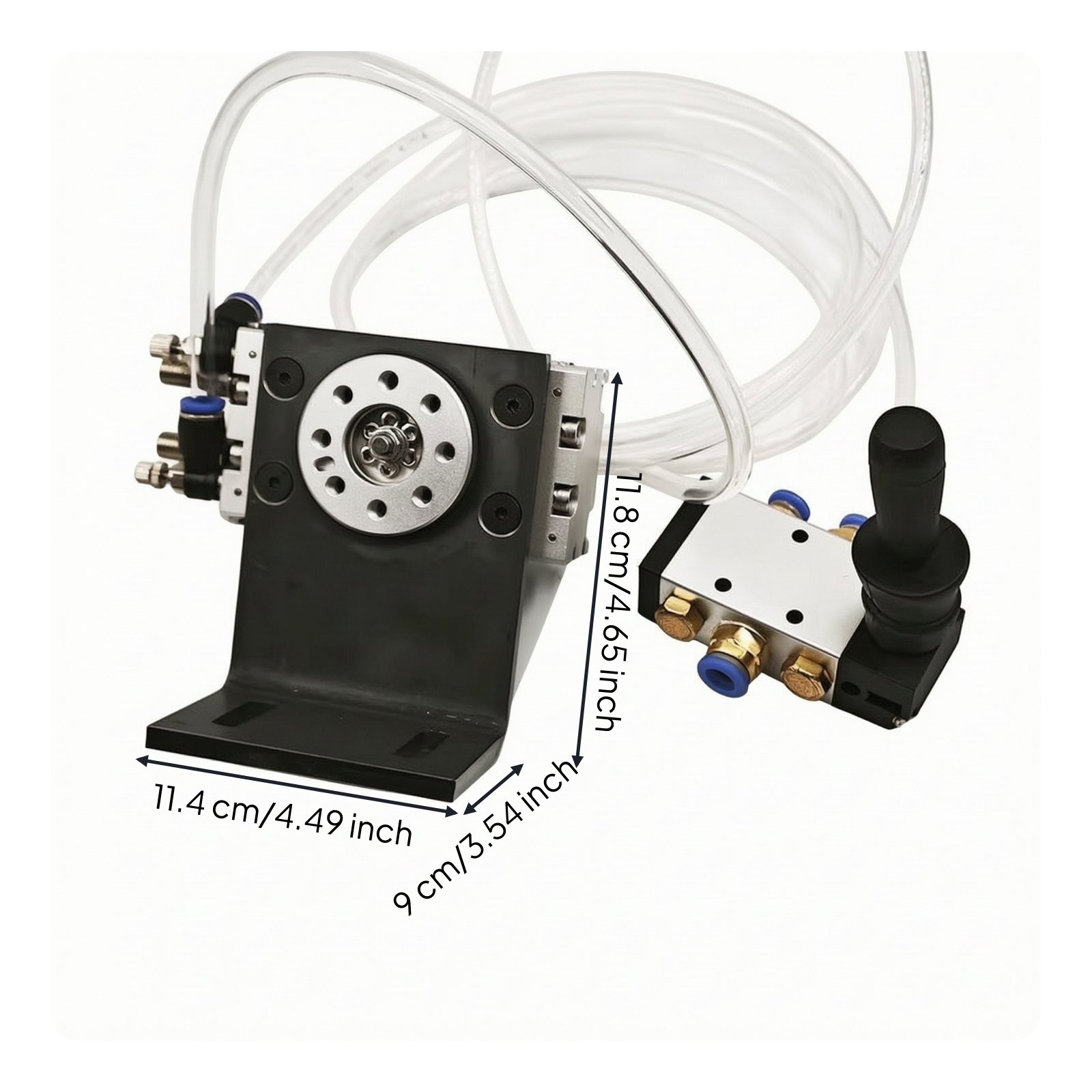

Construction Features: This double-sided pad printing fixture with rotary mechanism includes a sturdy mounting base, circular work-holding plate, threaded fastening components, and pneumatic adjustment fittings for reliable, repeatable setup.
Operational Upsides: This pad-printing fixture offers flexible rotary positioning and pneumatic adjustment, allowing technicians to quickly reorient workpieces and access multiple printing faces without -fixturing, supporting efficient workflow.
Intended Application: This printing fixture is engineered for use with two-color printing equipment on ceramic objects, making it suitable for production lines, print shops, and workshop machinery setups.

This rotary double-sided pad-printing fixture is a sturdy metal mechanical assembly built to integrate seamlessly with printing equipment and industrial machinery. Designed as a dedicated work-holding solution for precision printing tasks, it provides a stable work surface for securing workpieces during the printing process. As a rotary printing fixture, it supports fully adjustable angle positioning ranging from 0 to 180 degrees, enabling controlled rotary movement that presents multiple workpiece faces to the printing head in. This range of motion allows machine handlers to print on different sides of a part without manual repositioning, optimizing multi-surface printing processes. The double-sided pad printing fixture with rotary mechanism is constructed with a heavy-duty mounting base for secure installation, a circular work-holding plate to accommodate various workpiece shapes, threaded fastening components for tight, repeatable clamping, and pneumatic adjustment fittings for smooth, consistent. Every component is engineered for durability in continuous production environments. This pad-printing fixture delivers clear operational upsides, including flexible rotary positioning and responsive pneumatic adjustment that let machinery technicians quickly reorient workpieces and access multiple printing faces without time-consuming -fixturing. The result is more efficient workflow, reduced setup time between print cycles, and greater consistency across production runs. Intended specifically as a printing fixture for use with two-color printing equipment on ceramic objects, it is well suited for production lines print shops, and workshop machinery applications. Whether used for high-volume manufacturing or small work, it delivers the positioning accuracy and mechanical reliability that printing operations.

Option: Basic Rotary Base
