Manual X Positioning Stage
Manual X Positioning Stage Precision Positioning Stage with Rack and Pinion Compact for Researchers, Optical Alignment, Lab Jigs, Hobby Machining
$37.19 Free shipping · tax calculated at checkout
Arrives in 12–22 days · free shipping, tracked
Total $37.19 · free shipping · sales tax calculated at checkout
In stock · leaves our partner warehouse within 4 business days
- Ships from our partner warehouse in ChinaFree to the US · arrives in 12–22 days
- 30-day returnsUnused items · see policy
- Secure checkout by StripeWe never see your card number
- Questions?Contact us · reply in 1–2 business days
- Package size
- 10 × 10 × 9 cm (3.9 × 3.9 × 3.5 in)
- Weight
- 0.27 kg (0.58 lb)
- Product size

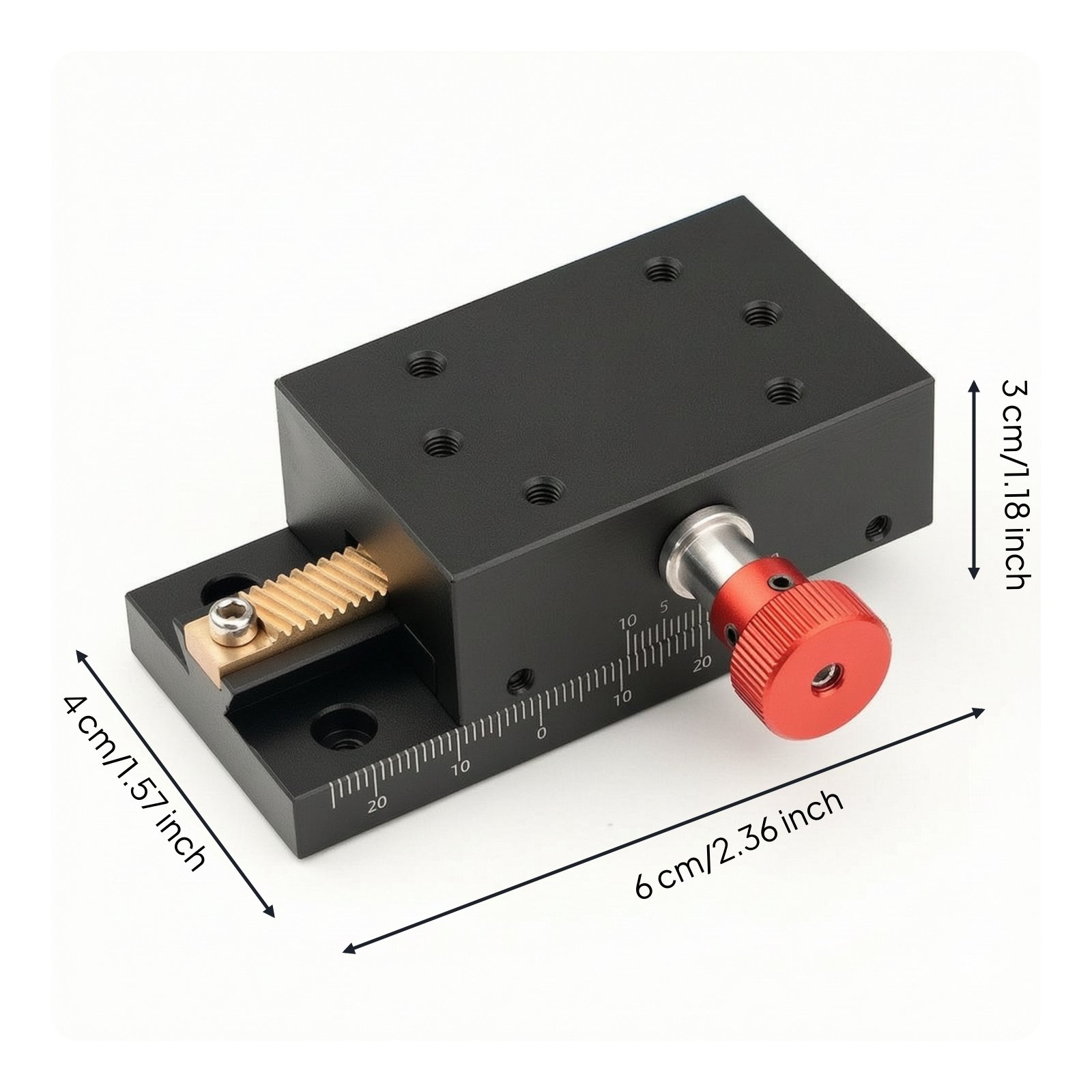

- 6 × 4 × 3 cm (2.4 × 1.6 × 1.2 in)
- Material
- Aluminum Alloy, Brass
- Color
- Black
- Drive Type
- Rack and pinion
- Adjustment Wheel
- Red knurled wheel on silver shaft
- Features
- Multiple threaded mounting holes, engraved measurement scale, dovetail-guided movable carriage
- In the box
- Dovetail displacement sliding stage ×1
- Category
- Fitness & Sports
- Delivery
- Free standard shipping to the US, 12–22 days from order, shipped from our partner warehouse in China
- Returns
- 30-day returns on unused items
Item DCD-10001356166
About this item

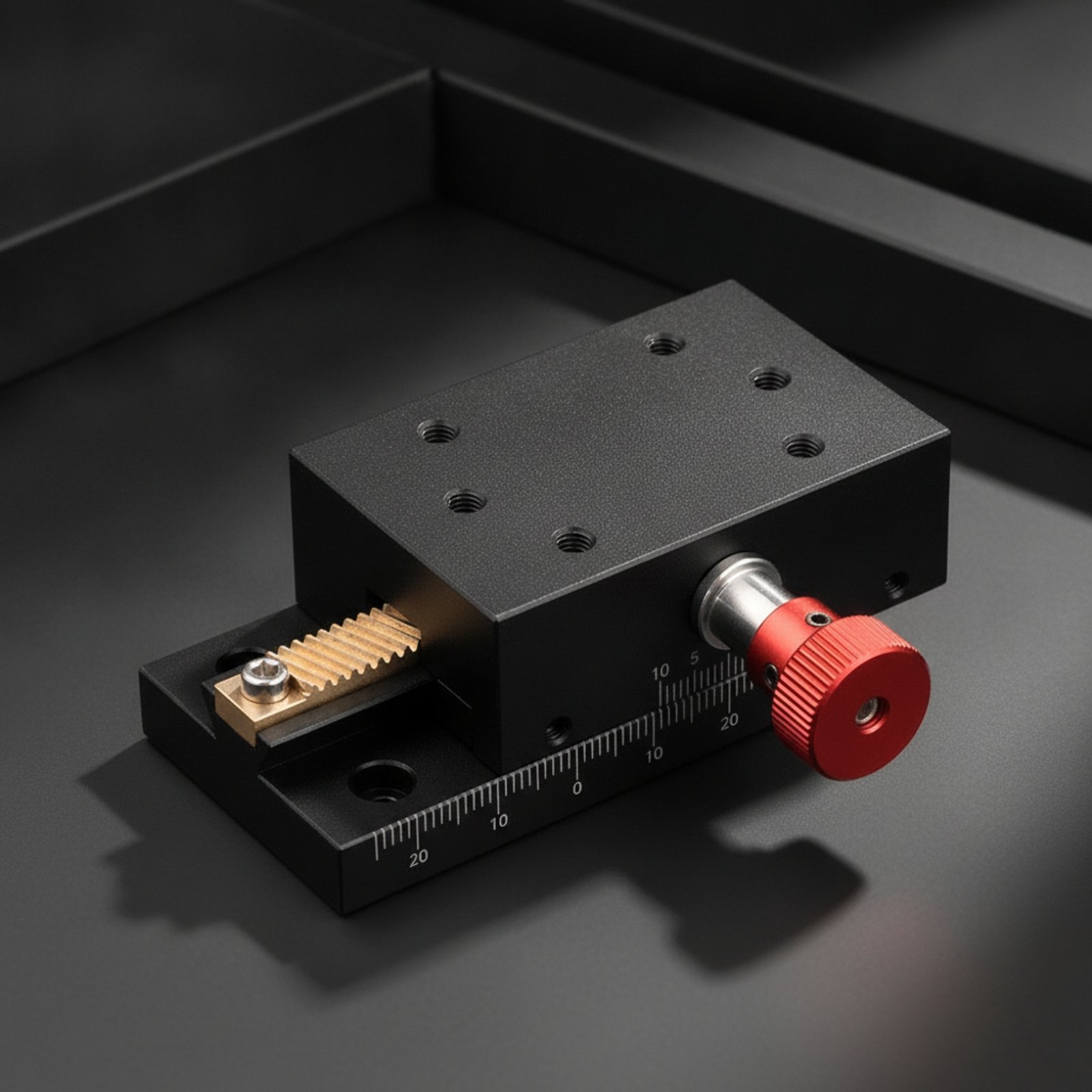

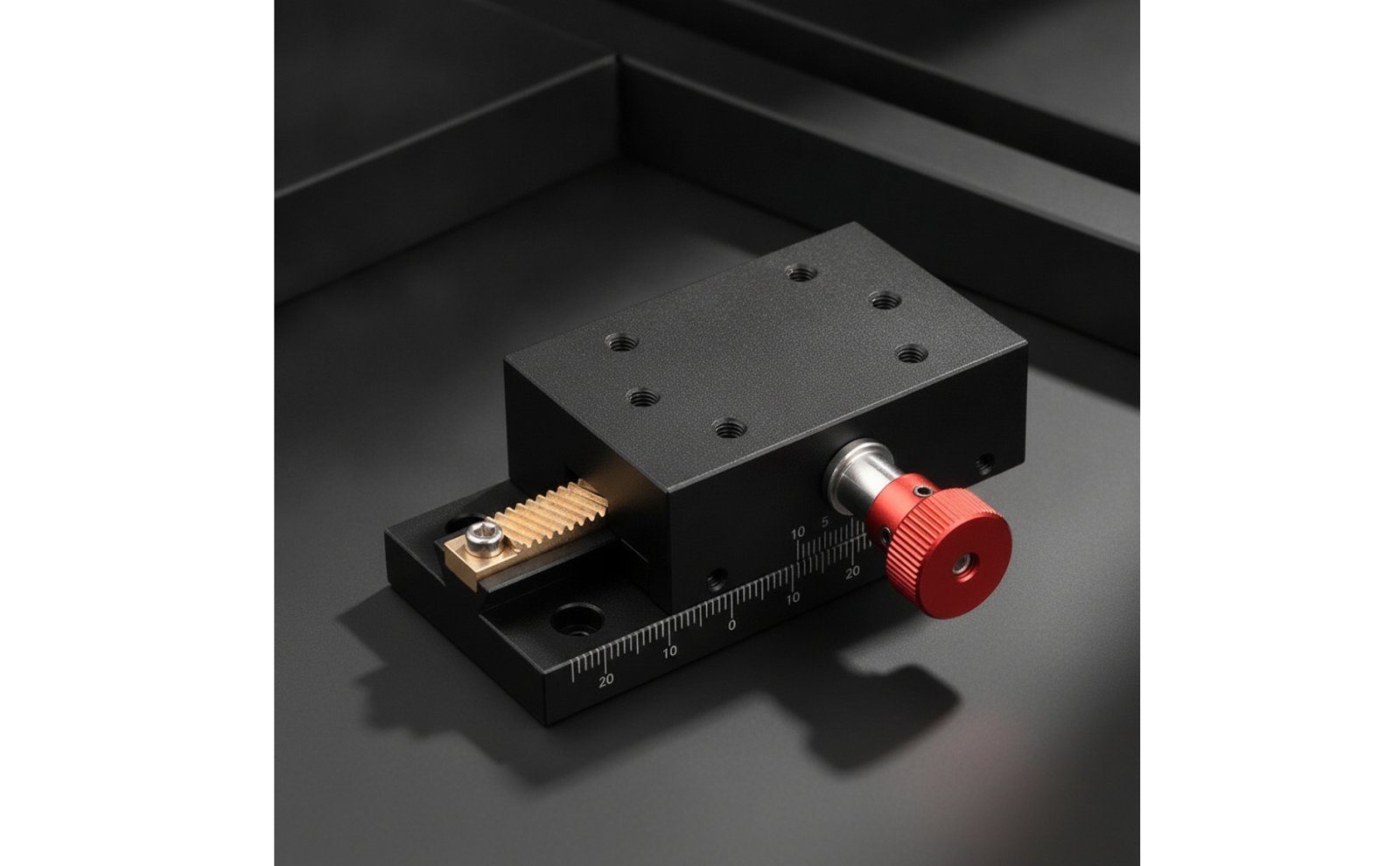

Primary Description: This compact manual stage serves as a highly reliable positioning component, featuring a sturdy black rectangular metal body designed for stable integration into various setups.
Drive Mechanism: Equipped with a visible rack-and-pinion drive, this rack and pinion stage offers smooth and direct linear movement controlled by red knurled adjustment wheel on a silver shaft.
Guidance System: Utilizing a movable carriage with a -guided movement structure, this positioning stage ensures stable and consistent alignment along its path.
Measurement: The positioning stage features an engraved measurement scale along its side, allowing users to easily track adjustments over its 40 millimeter travel stroke.

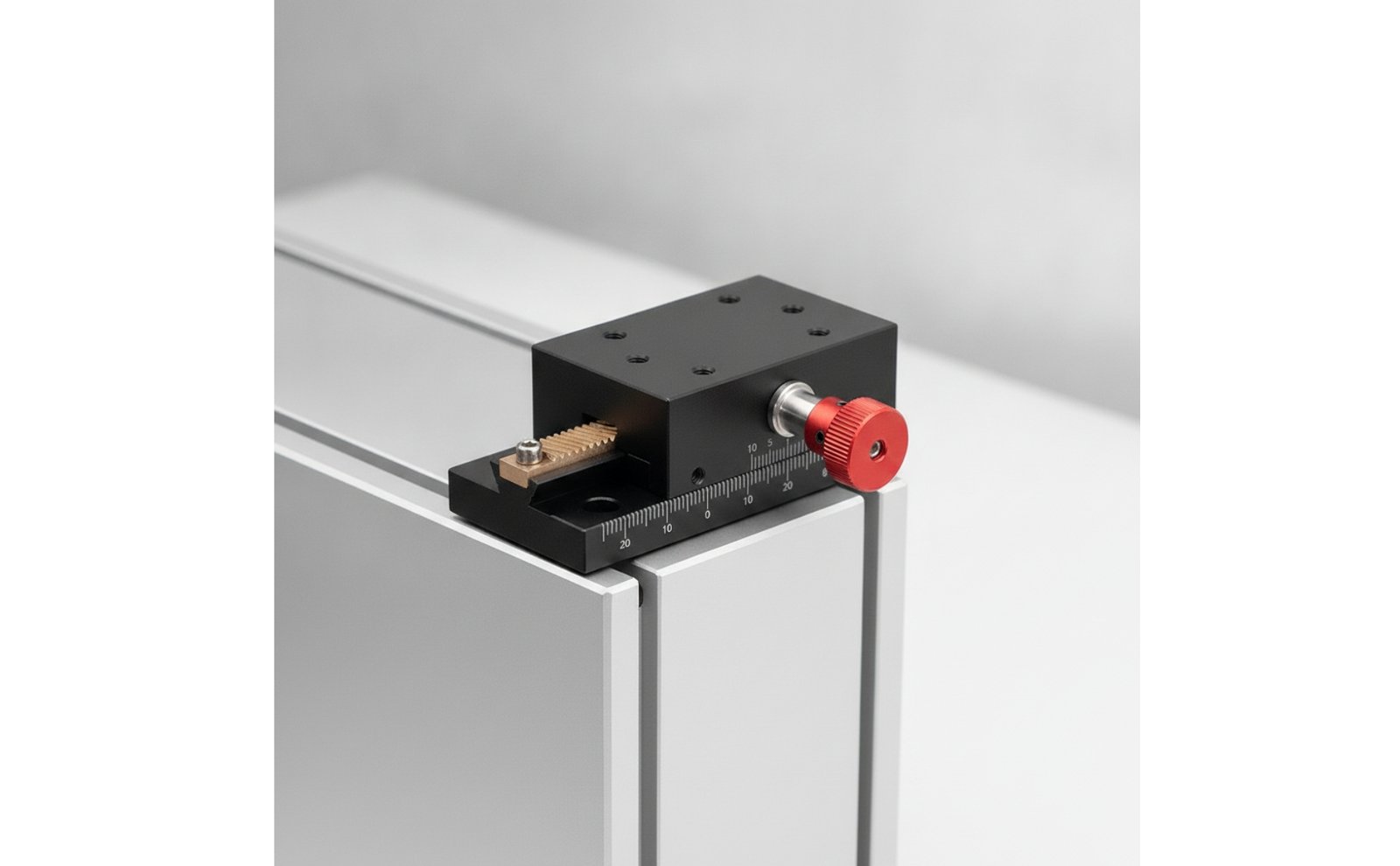

Versatile Mounting: Designed with multiple threaded mounting holes on the top face, this stage provides a flexible base for securing small fixtures, lab jigs, and optical components.
Enhance your experimental and machining setups with this compact manual stage, designed to provide reliable linear positioning in a space-saving factor. Built with a sturdy black rectangular metal body, this positioning stage provides a highly stable foundation for delicate adjustments. At its performance, a visible rack-and-pinion drive system drives the movement, allowing this rack and pinion stage to translate rotational manual input into smooth, direct linear travel. The red knurled adjustment wheel on a silver shaft offers a textured grip, making fine tuning effortless during complex tasks. Designed for consistency, this positioning stage utilizes a movable carriage with a -guided movement structure to maintain straightness and minimize play. An engraved measurement scale is clearly marked along the side of the housing, giving you a quick and reliable visual reference to track the 40 millimeter travel stroke. Whether you are setting up optical alignment systems, building tailored experimental apparatus jigs, or working on detailed hobby machining projects, multiple threaded mounting holes on the top face of the base make it easy to secure your components exactly where you need them.
