X Y Positioning Stage

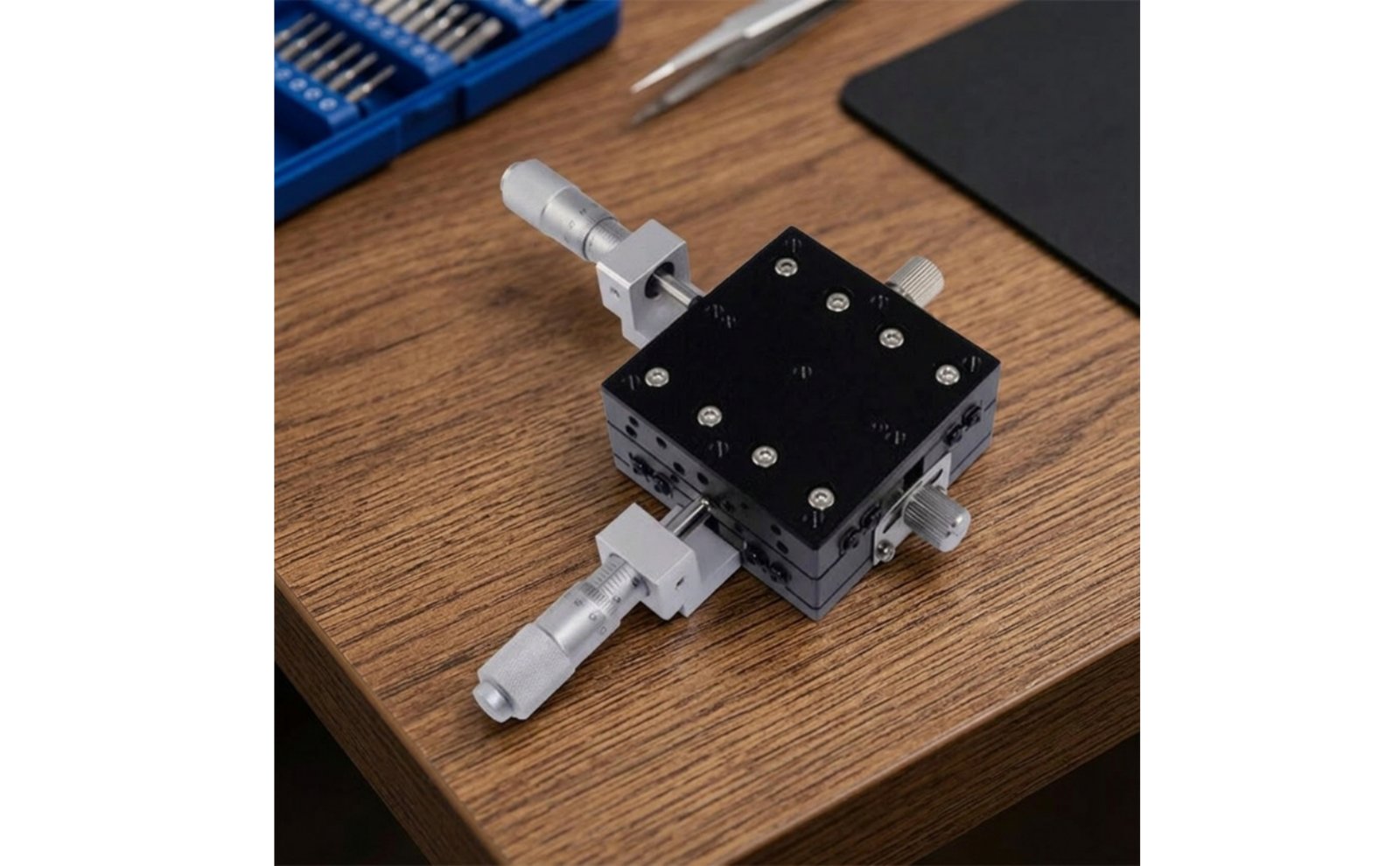

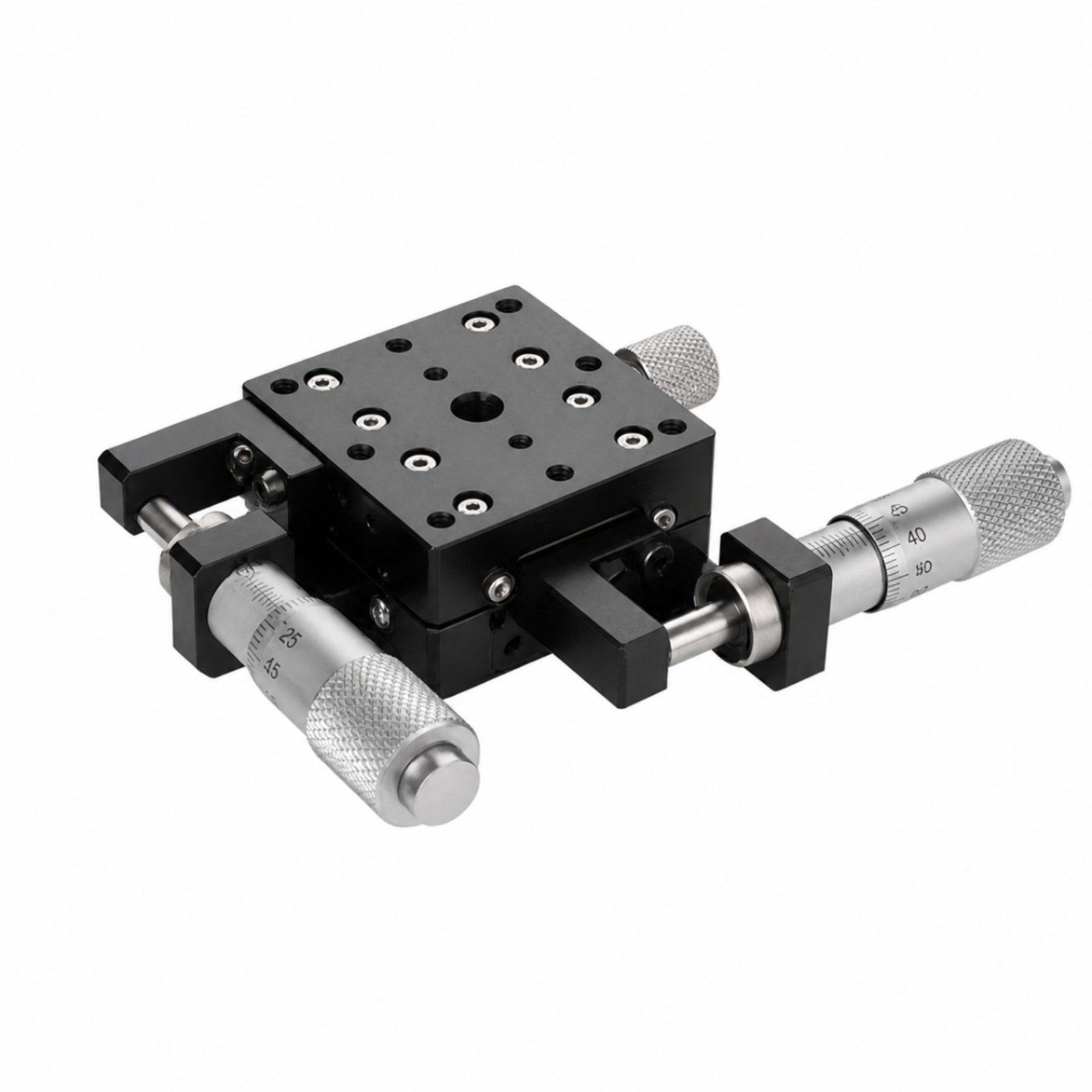

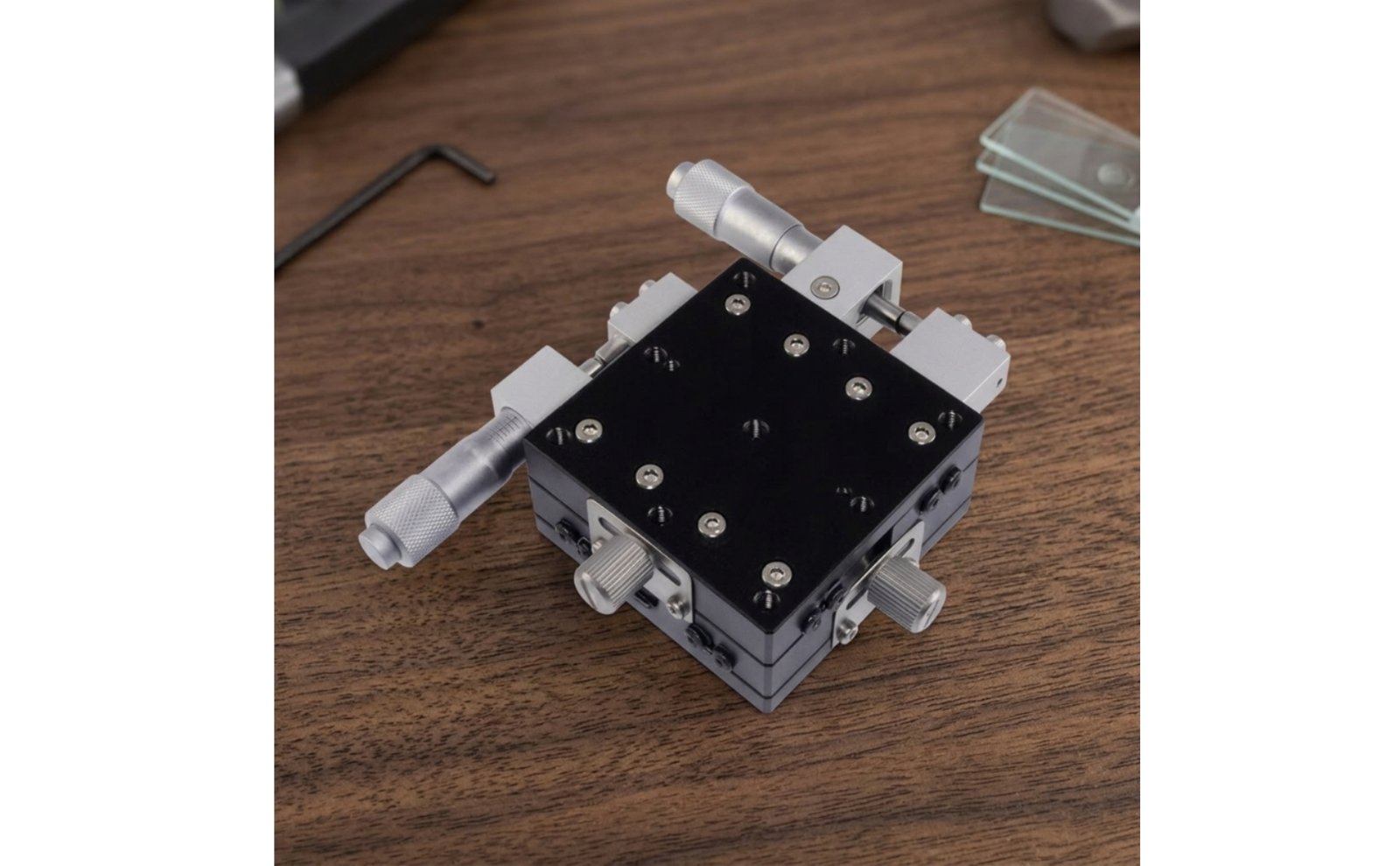

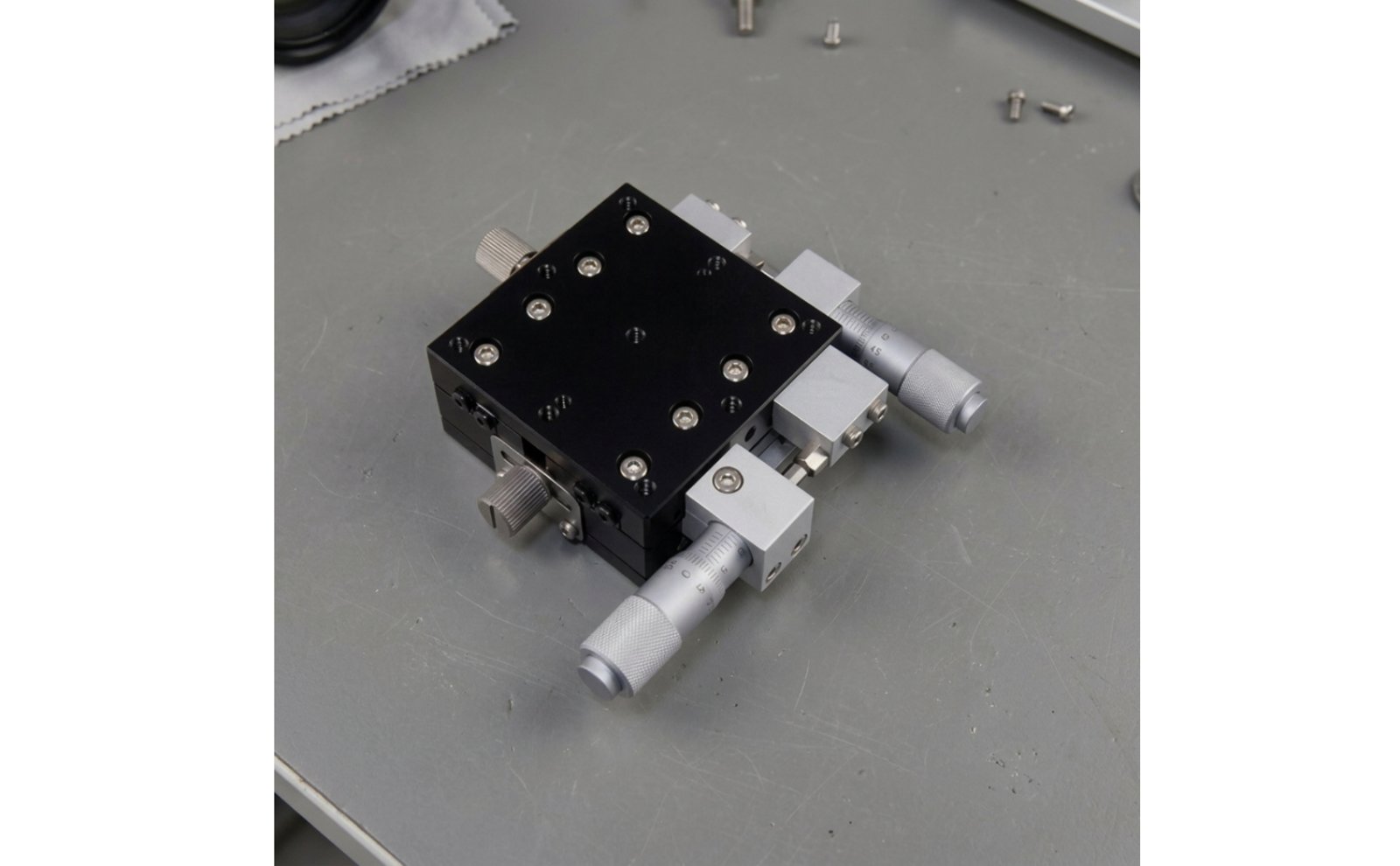

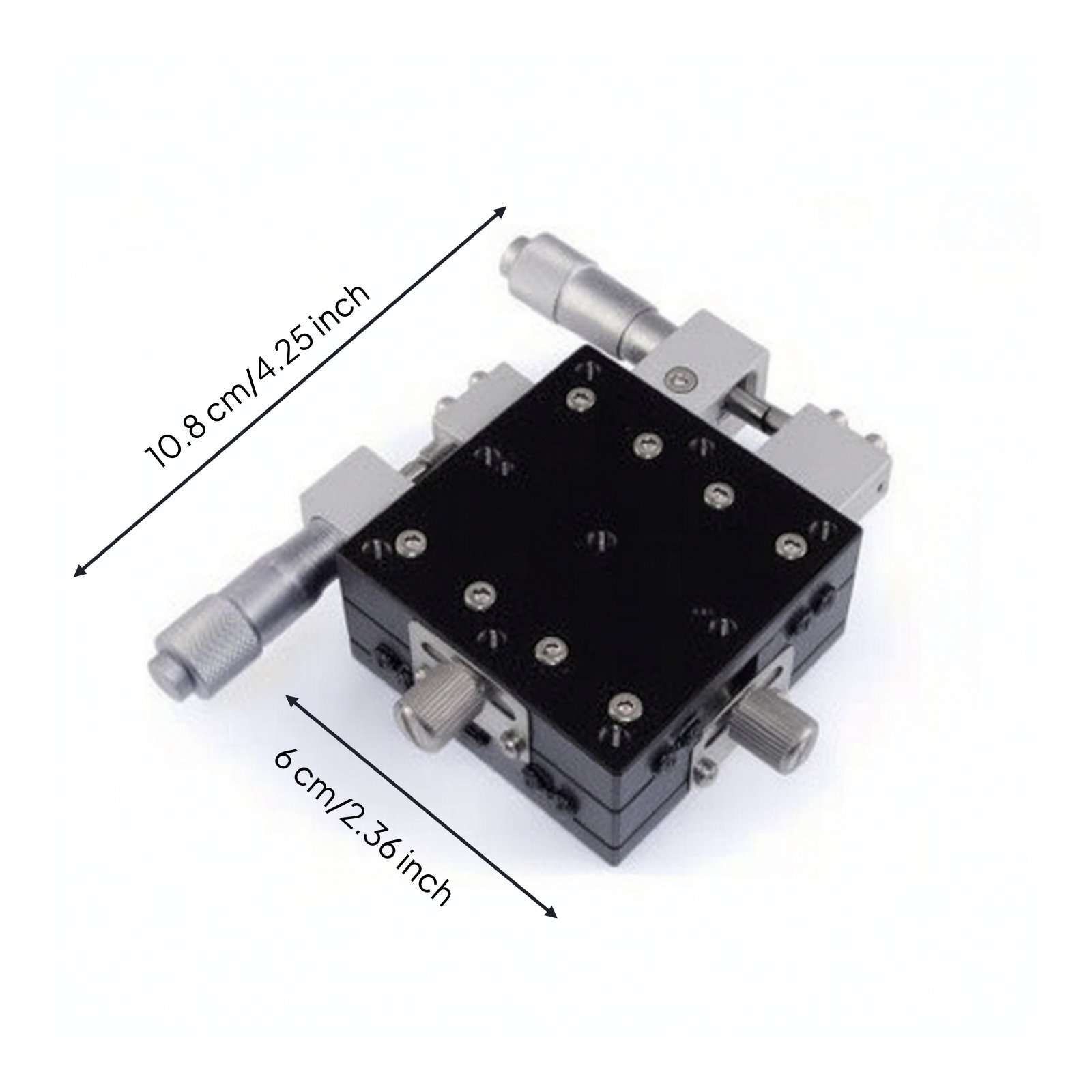

X & Y Micro-Positioning Stage Two-axisAxis Manual Positioning Stage Precision Cross-Slide Table for Machinists, Optical Setups, Lab Fixtures
$86.89 Free shipping · tax calculated at checkout
Arrives in 11–21 days · free shipping, tracked
Total $86.89 · free shipping · sales tax calculated at checkout
In stock · leaves our partner warehouse within 4 business days
- Ships from our partner warehouse in ChinaFree to the US · arrives in 11–21 days
- 30-day returnsUnused items · see policy
- Secure checkout by StripeWe never see your card number
- Questions?Contact us · reply in 1–2 business days
- Package size
- 18 × 18 × 8 cm (7.1 × 7.1 × 3.1 in)
- Weight
- 0.70 kg (1.54 lb)
- Material
- Aluminum alloy
- Category
- Workshop & Tools
- Delivery
- Free standard shipping to the US, 11–21 days from order, shipped from our partner warehouse in China
- Returns
- 30-day returns on unused items
Item DCD-10001343964
About this item
Key Features: This precision hardware component is designed to provide stable and reliable support for intricate mechanical assemblies.
Two-axisAxis Function: As a manual movement stage, it offers smooth two-axisaxis movement to ensure exact alignment along both the X & Y directions.
Precision Features: This X & Y micro-positioning stage features a minimum increment of 0.01 mm, a travel range of ±6.5 mm, and clear scale markings for meticulous adjustments.
Sturdy Construction: Built from aluminum alloy, this linear stage features a black square base and silver metal adjustment knobs that support a load of up to 5 kgf.
Versatile Purpose: Engineered as a high-accuracy positioning stage, it is ideal for integration into optical setups, lab fixtures, and machinist workbenches requiring low-clearance motion.
Enhance your workshop or research facility setup with this high-precision hardware component, engineered specifically for demanding mechanical alignments. This manual movement stage provides two-axisaxis cross-slide movement, allowing for seamless adjustments along both the X & Y directions. Crafted from a sturdy aluminum alloy, the unit features a sleek black square base paired with silver metal adjustment knobs, ensuring a rigid and stable foundation that can support a load of up to 5 kgf (5 kgf). With a travel range of ±6.5 mm and a minimum increment of 0.01 mm, this X & Y micro-positioning stage delivers the exact control needed for delicate operations. The engraved scale markings provide clear visual, making it easy to achieve a specified accuracy and parallelism of 0.01 mm. Weighing just 0.48 kg, this compact linear stage is easy to integrate into existing systems using the built-in mounting holes for secure, fixed installation. Whether you are configuring complex optical setups, securing lab fixtures, or executing detailed machinist tasks, this positioning stage offers the smooth, low-clearance motion required for success. Its reliable manual control and sturdy construction make it an indispensable tool for any precision-oriented workbench or instrument assembly.
Option: Ly60-left Module
