Aluminum Alloy Hinge Mortising Template

About this item

Product Identity: This hinge mortising and positioning template is a precision cabinetmaking jig designed to help carpenters and woodworkers locate and cut door hinge mortises with consistent results.
Core Function: As a door hinge template, it templates routing and mortising work to create clean, accurately placed recesses for door hinges, reducing the need for repeated manual measuring and layout work.

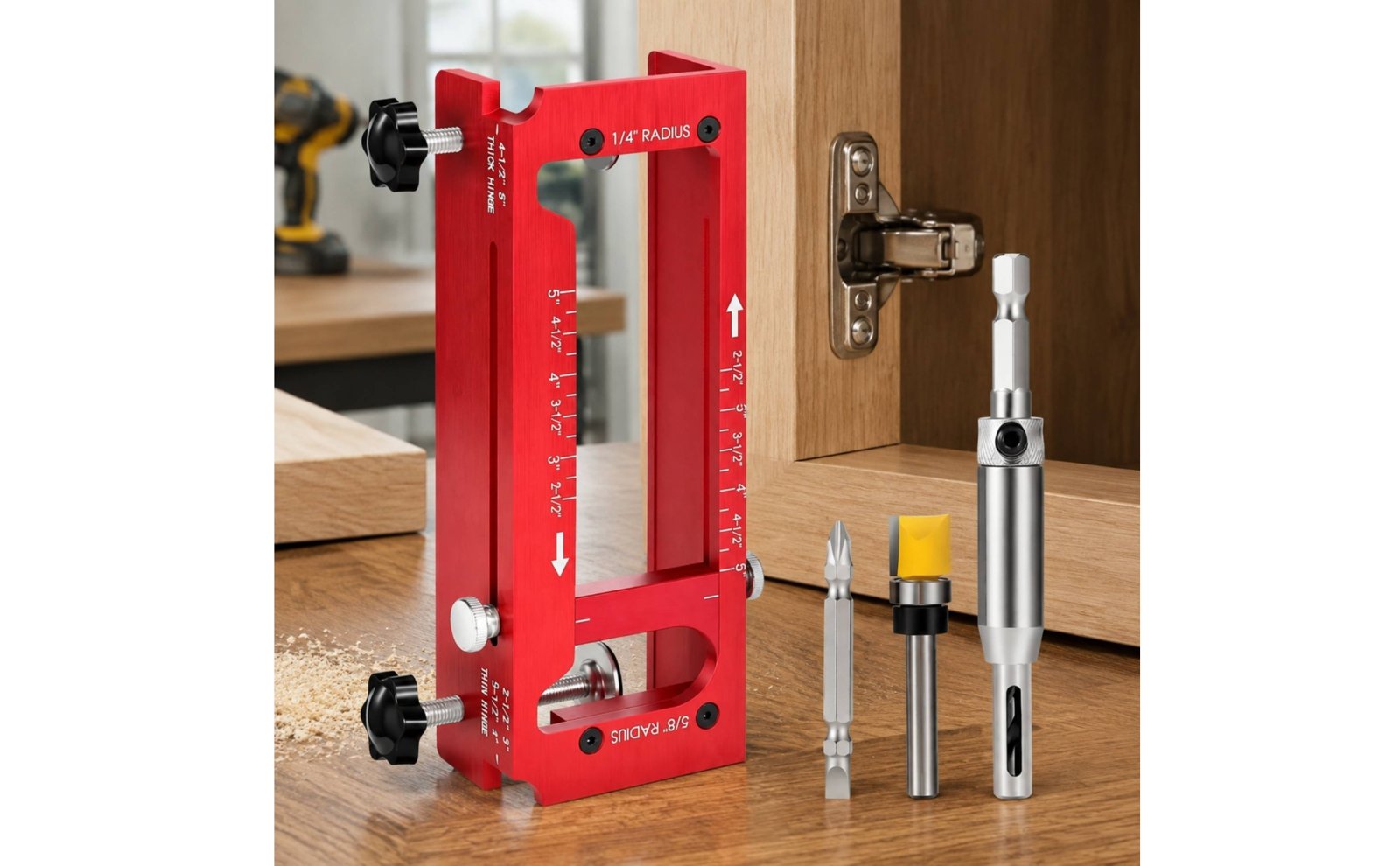

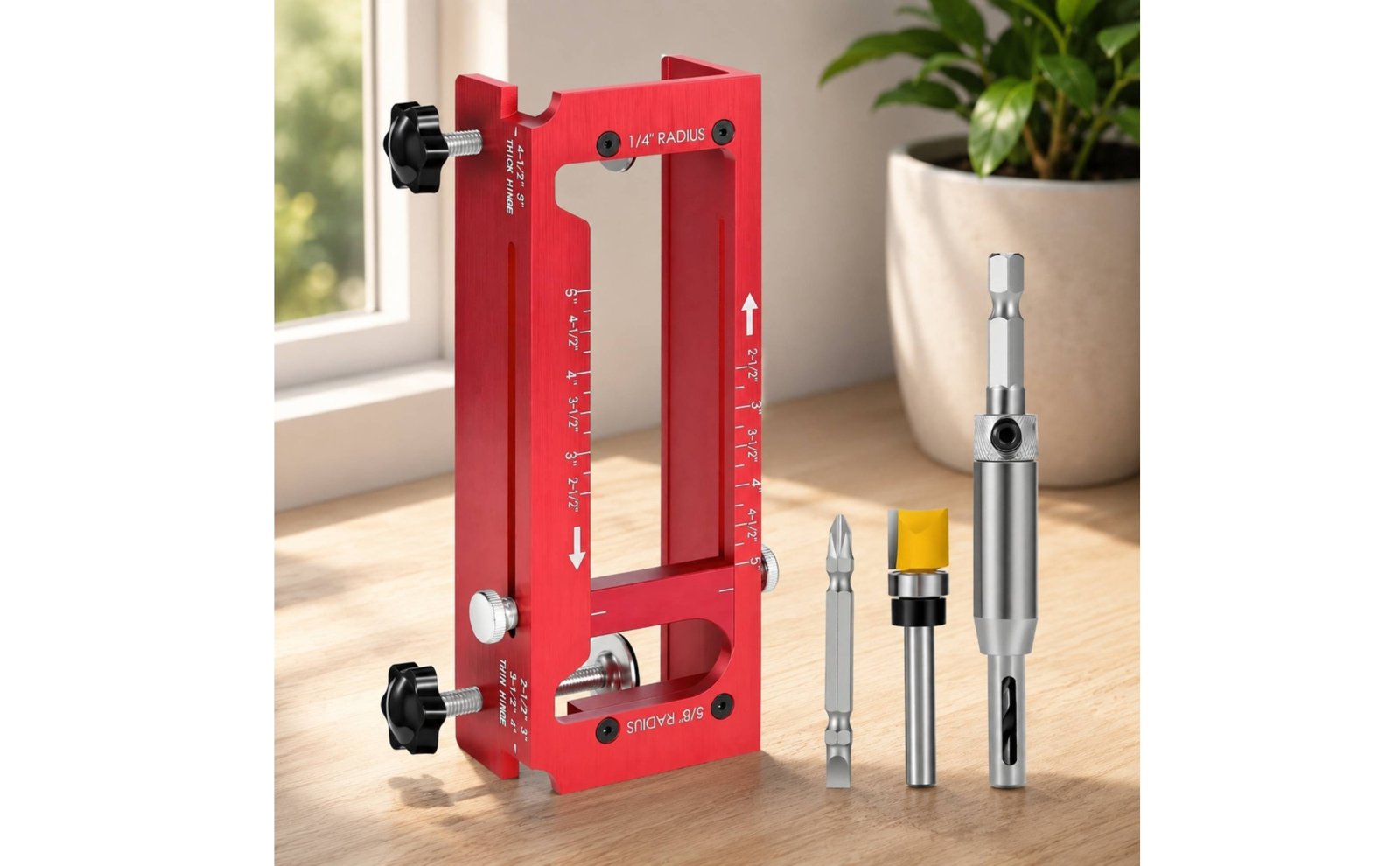

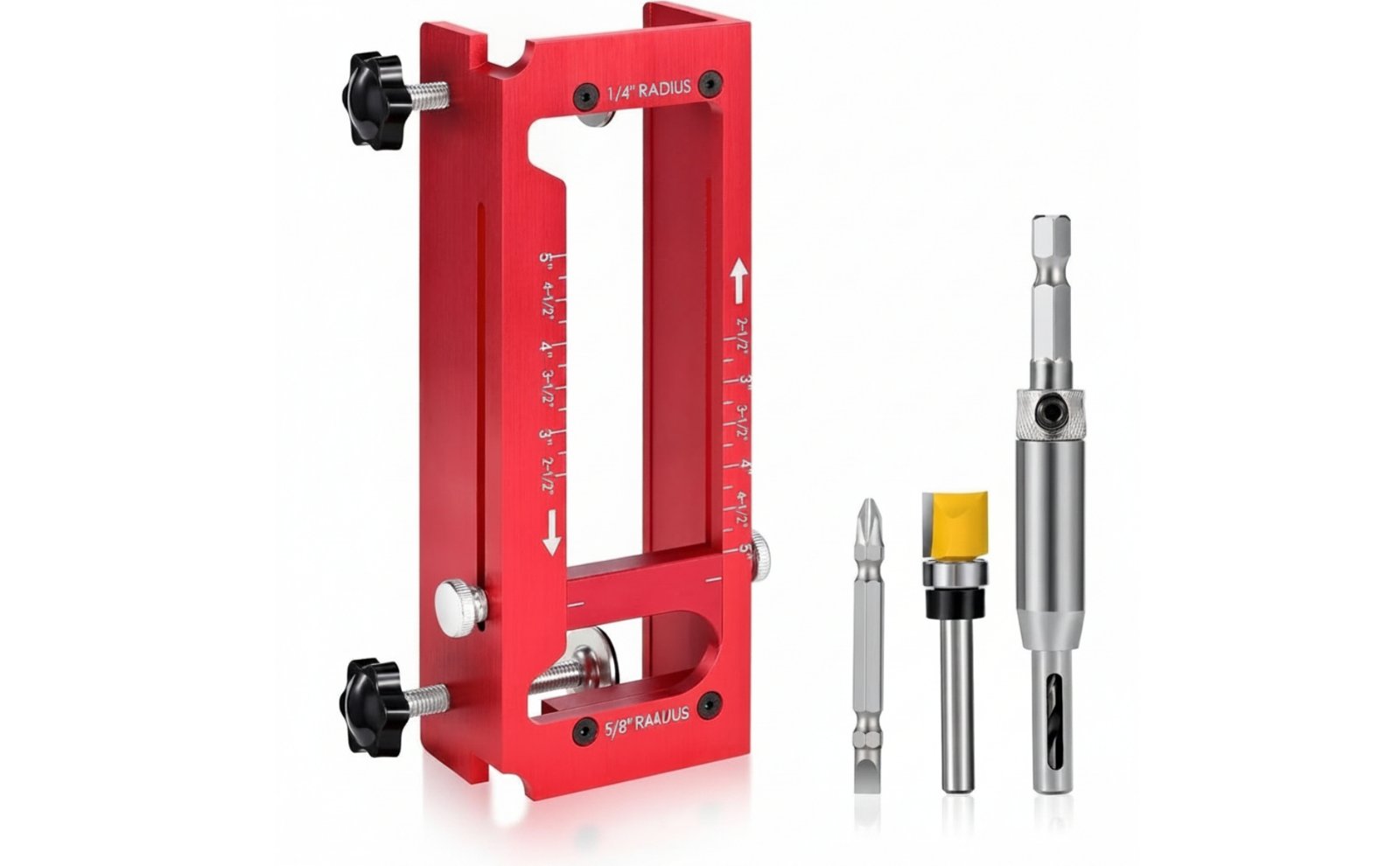

Material & Build: Constructed from aluminum alloy, this hinge mortising jig features rectangular frame with an central opening, adjustable guide sections, threaded clamping knobs, alignment markings, directional arrows, and recessed fasteners for reliable workshop use.
Adjustable Design: This door hinge routing template offers adjustable clamping and guide sections, along with included accessories such as a screwdriver bit, a cylindrical cutter or guide accessory, and a bit holder to support of installation tasks.

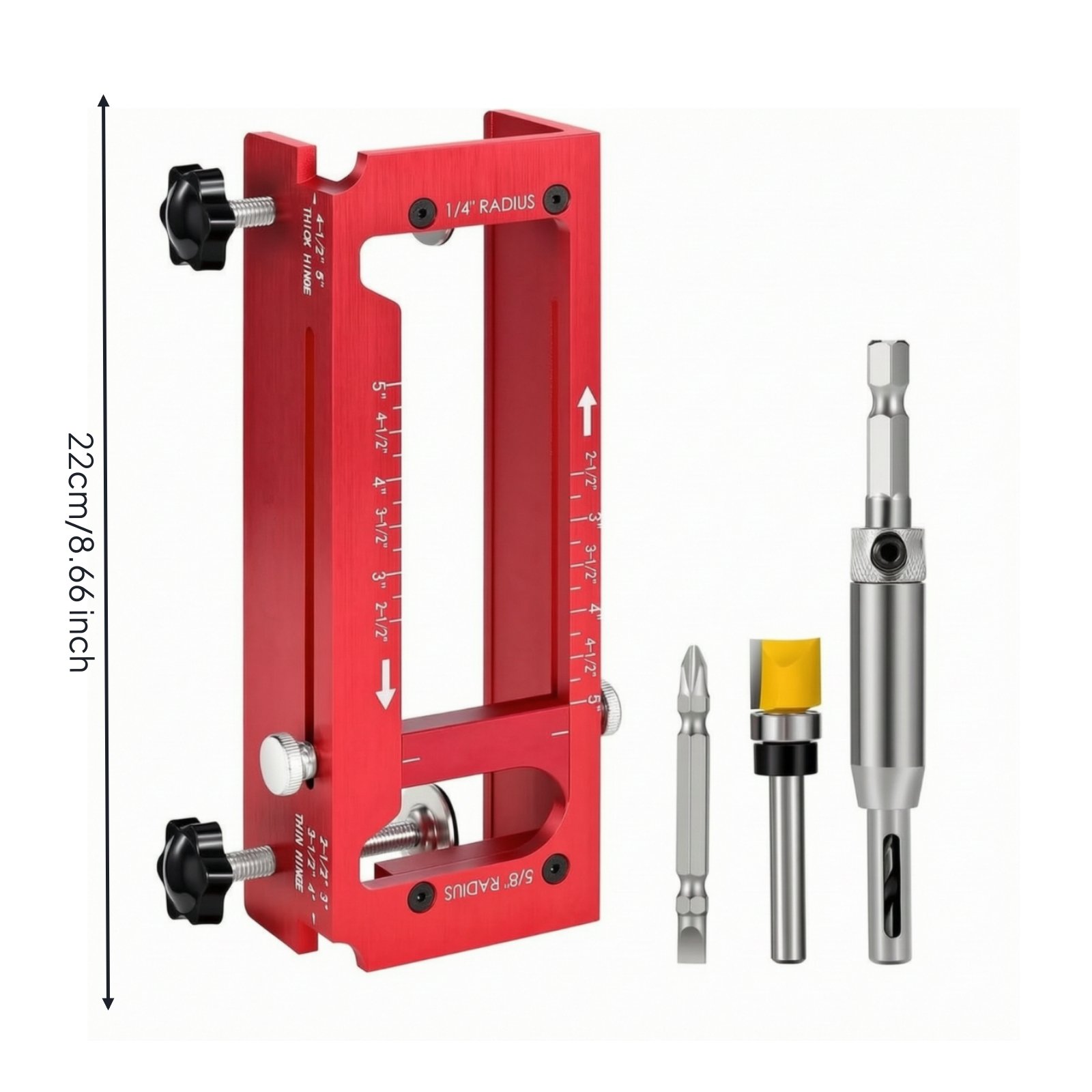

Intended Use: Sized at 22 × 8 × 5 cm and weighing 0.76 kg, this compact template supports door fabrication, repair, renovation, and workshop projects by delivering repeatable, accurate hinge mortise positioning with less setup effort.

Whether you are fitting fresh doors, repairing existing ones, or working on a renovation project, consistent and accurate hinge placement is essential for smooth and a result This hinge mortising and positioning template is a dedicated cabinetmaking jig that takes the guesswork out of hinge installation, giving carpenters and woodworkers a reliable tool they can use job after job. As a door hinge template, its primary role is to guide your router as mortises, ensuring each recess is positioned correctly and matches the others across the door and frame. By using the template as a guide, you minimize manual layout work and the risk of misaligned hinges that can cause binding, gaps, or uneven door swing. Built from sturdy aluminum alloy, this hinge mortising jig combines light weight with structural rigidity, so it stays stable during use while remaining easy to handle and transport. The red rectangular frame features an central opening for clear visibility of your work surface, along with adjustable guide sections, threaded clamping knobs, alignment markings, directional arrows, and recessed fasteners that all contribute to, repeatable setups. This door hinge routing template also comes with useful accessories including a screwdriver bit, a cylindrical cutter or guide accessory, and a bit holder, so you have key components on hand to begin working right away. The adjustable clamping and guide design means you can adapt the template to different hinge sizes and door thicknesses as your project requires. With overall dimensions of 22 × 8 × 5 cm and a weight of 0.76 kg, the template is compact enough to store in a or carry between worksites sites, yet solid enough to stay firmly during routing. Whether you are working in a workshop, tackling a home renovation, or performing door repair work, this template helps you produce clean, consistent mortises with less measuring, fewer mistakes, and more predictable results every time.

Option: New Aluminum
