Push-Button Cam Lock

About this item

Product Type: This recessed push-button cam lock is a single cylindrical locking unit designed for cabinets, drawers, storage compartments, vehicles, RVs, boats, and yachts, with a smooth front face and ribbed threaded body for secure installation.
: This push-button cam lock features a simple press-to-operate design paired with a spring-return latch that automatically retracts after disengagement, delivering quick, one-handed access to secured compartments.

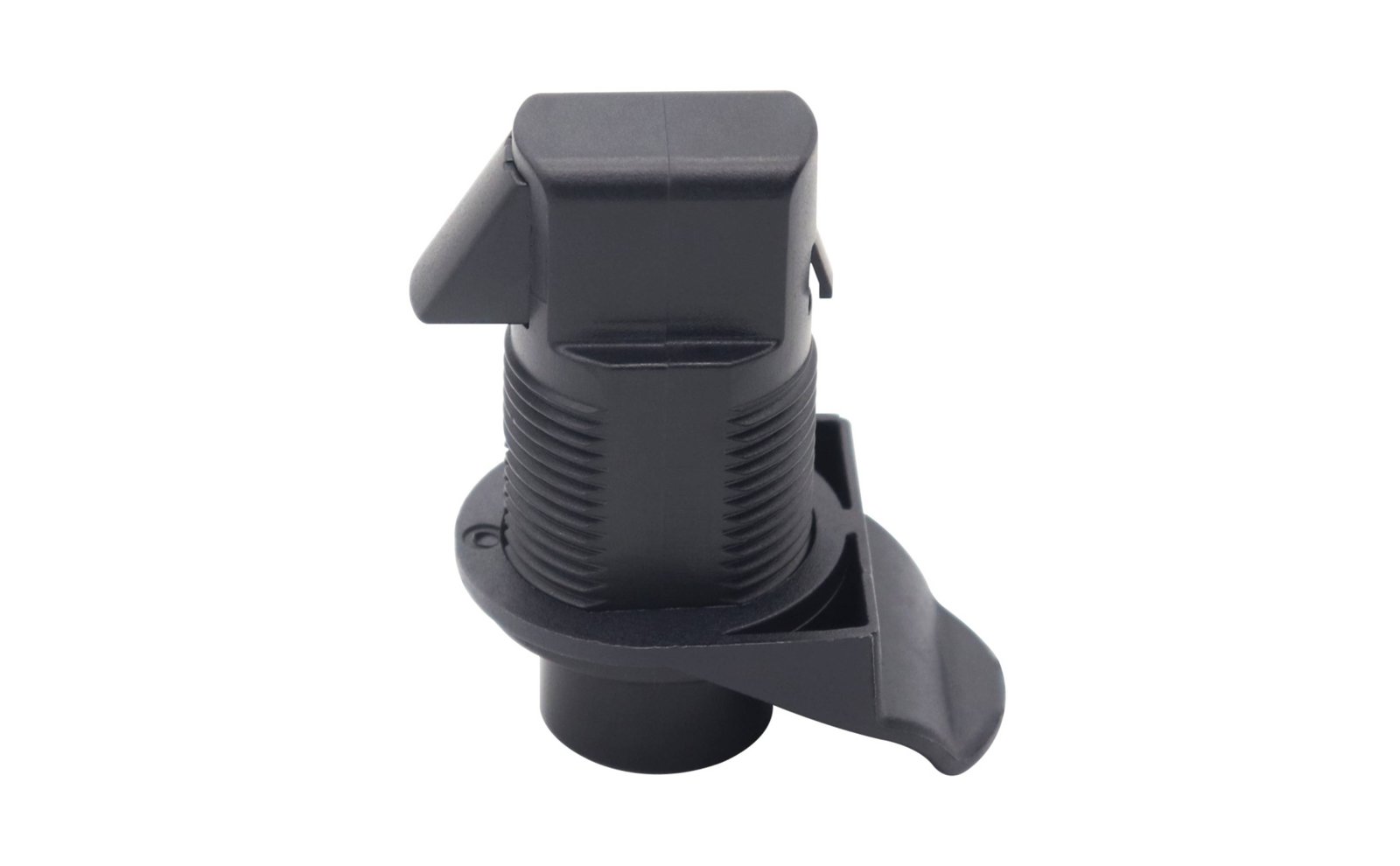

Construction: This cylindrical push-button cam lock has a compact cylindrical build made of black PA polyamide, complete with a threaded barrel, retaining nut, mounting flange, and rotating locking mechanism for reliable performance.
Installation: This cam lock is engineered for recessed installation, fitting a 25.5 mm circular mounting opening with a separate retaining lock washer create a low-profile, flush finish on panels and doors.

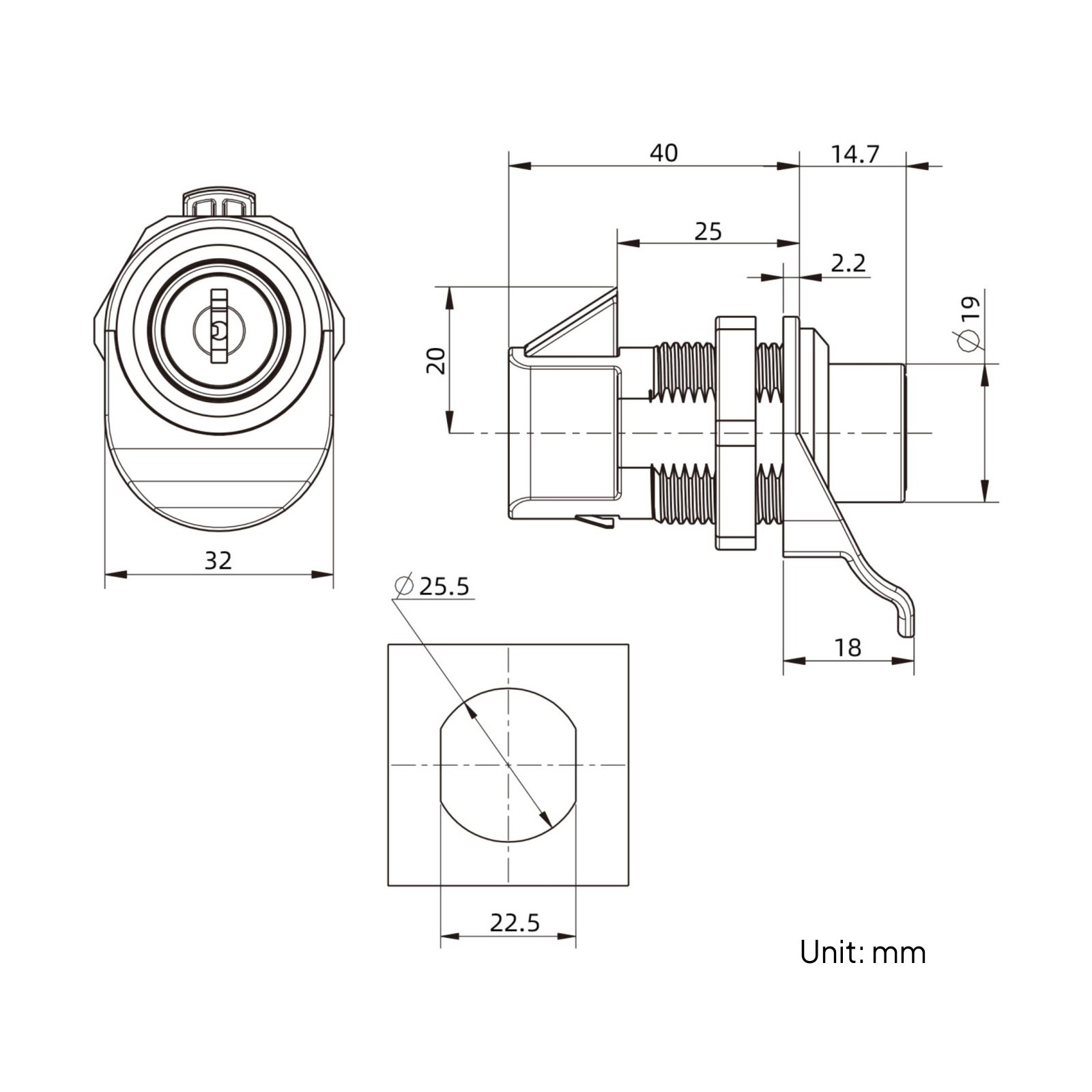

Dimensions: This lock has an overall length of 40 mm, 19 mm cylindrical diameter, 18 mm latch projection, and 38.3 g weight, with a 25 mm mounting section that fits range of standard panel thicknesses.

This recessed push-button cam lock is a versatile single-cylinder locking built for use across cabinets, drawers, storage compartments, vehicles, RVs, boats, and yachts. Its smooth front face and ribbed threaded body give it a clean, functional appearance that blends well with a variety of enclosure designs, making it suitable for both interior and light-exterior applications. Actuating the push-button cam lock is straightforward and intuitive: a firm press on the front button activates the locking mechanism, while the built-in spring-return latch automatically retracts once disengaged This design supports fast, one-handed access even when your hands are full with tools, supplies, or gear, which is especially useful in tight marine or RV storage compartmentsBuilt as a cylindrical push-button cam lock, the unit features a compact cylindrical construction crafted from black PA polyamide, a material that holds up well to regular use and varying environmental conditions. The assembly includes a threaded barrel, separate retaining nut, mounting flange, and rotating locking mechanism, all working together to deliver consistent, dependable latching performance. Designed for recessed installation, this cam lock requires a 25.5 mm circular mounting opening and secures from the rear with the included retaining nut. The result is a low-profile, flush-mounted finish that sits nearly level with the panel surface, reducing snags and maintaining a sleek look on cabinet doors, drawer fronts, and compartment panels. With dimensions tailored for practical use, this lock measures 40 mm in overall length, has a 19 mm cylindrical diameter, and offers an 18 mm latch projection for secure engagement. Weighing just 38.3 g and featuring a 25 mm mounting section, it is lightweight yet sturdy enough for everyday use in marine, automotive, residential, and recreational storage setups.

Option: Recessed Rotary Push
