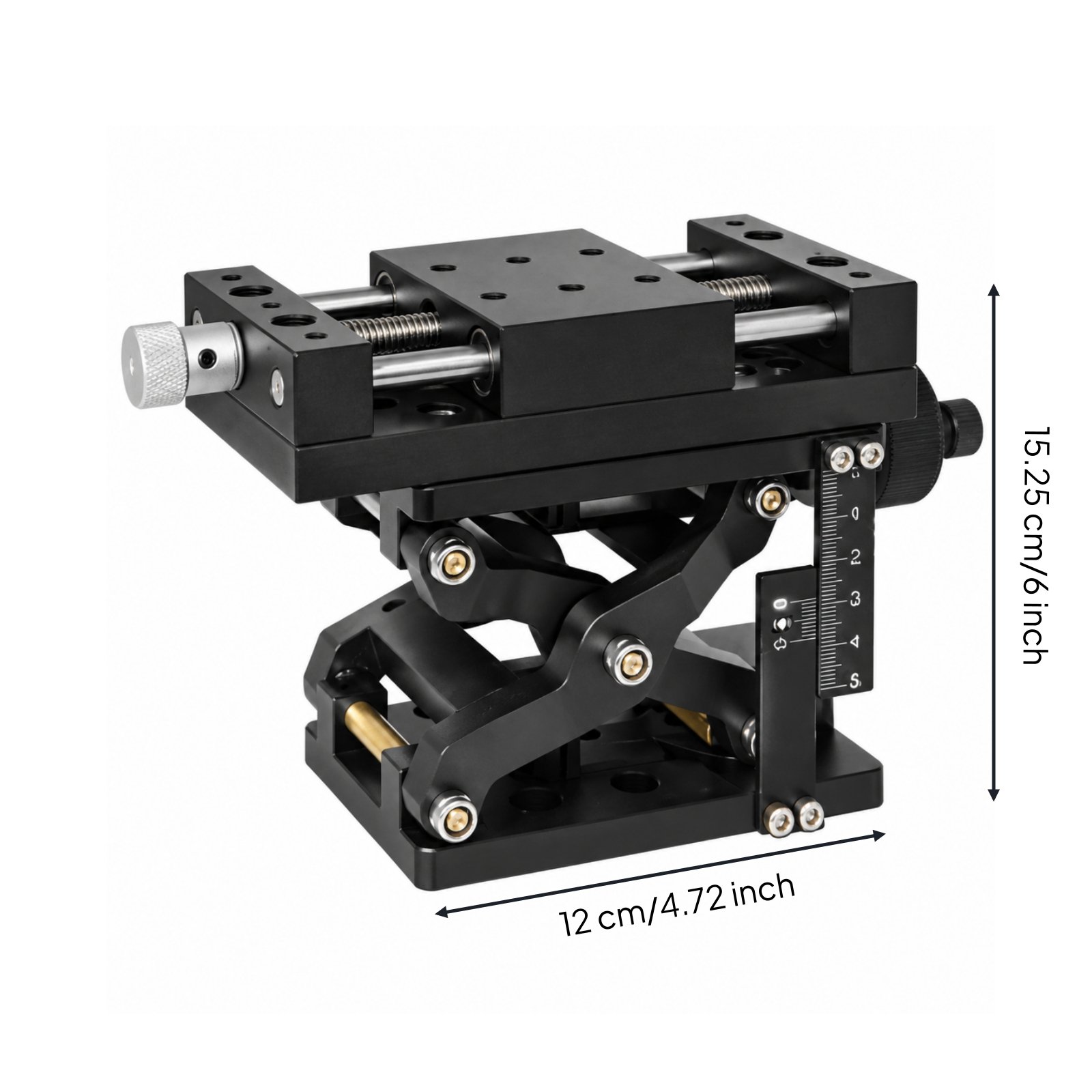

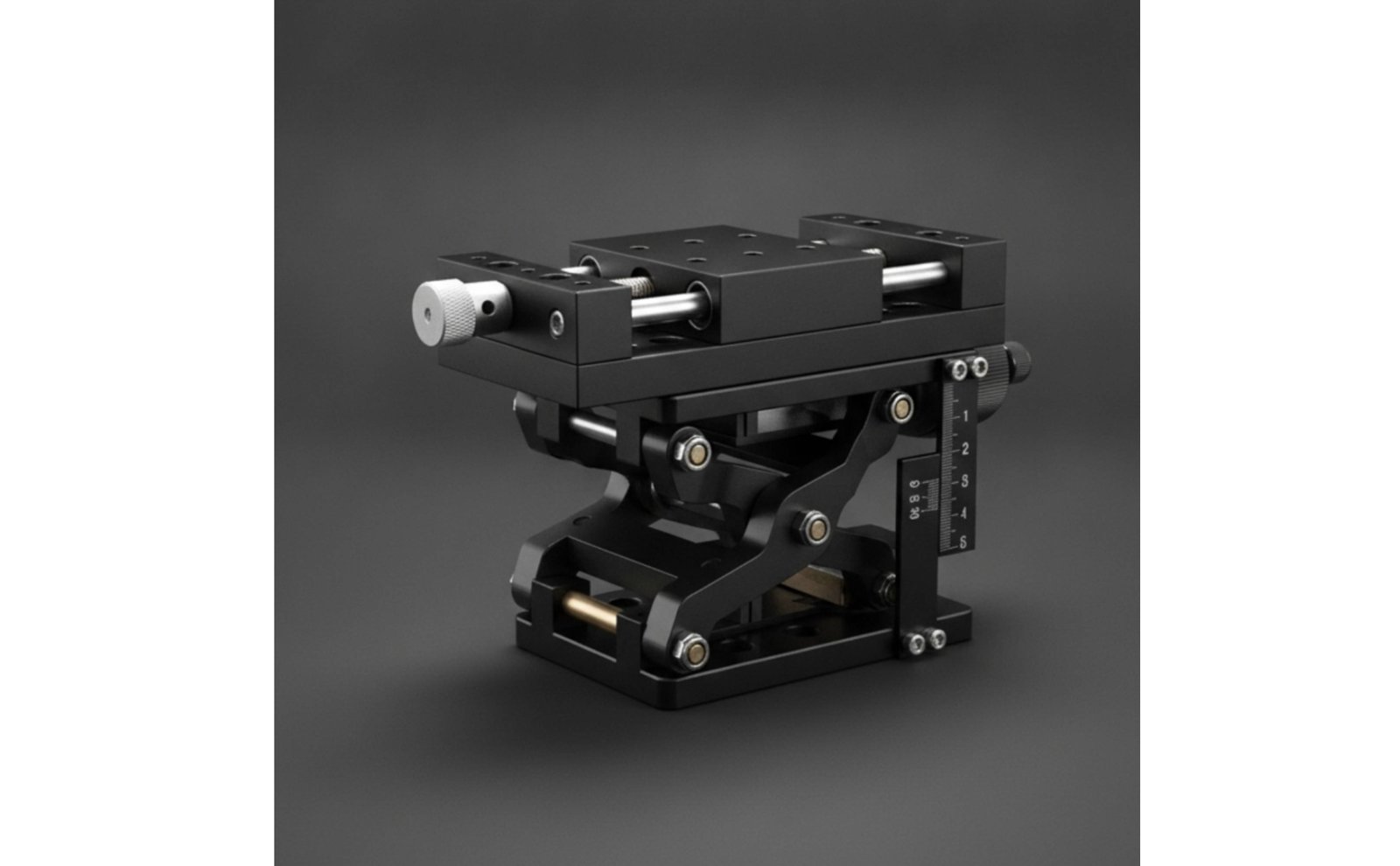

Axis Lift Stage with Drive Screw

About this item

Product Identity: This -axis lift stage is a manual precision positioning stage designed for lab work and fine-positioning applications, with a sturdy structure built for consistent, reliable use.
Core Function: As lift stage, it provides vertical and horizontal positioning adjustment through a hand-operated mechanism, supporting controlled height and alignment changes for experimental setups.
Construction & Mechanism: This lift stage with drive screw screw drive features a 6061 aluminum-alloy body with a black anodized finish, paired with a ×1.5 drive screw screw and -type lifting structure for smooth, rigid movement.

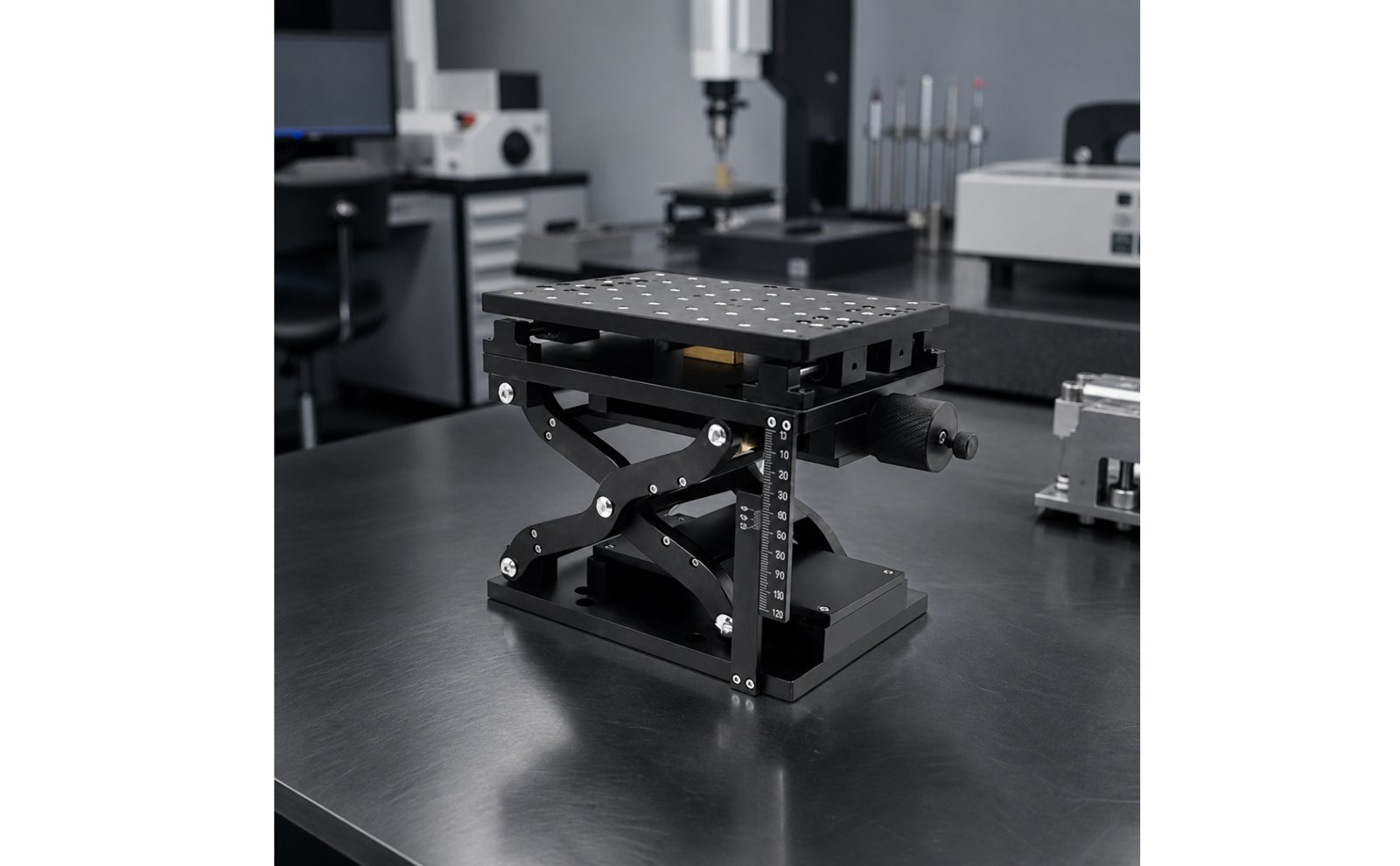

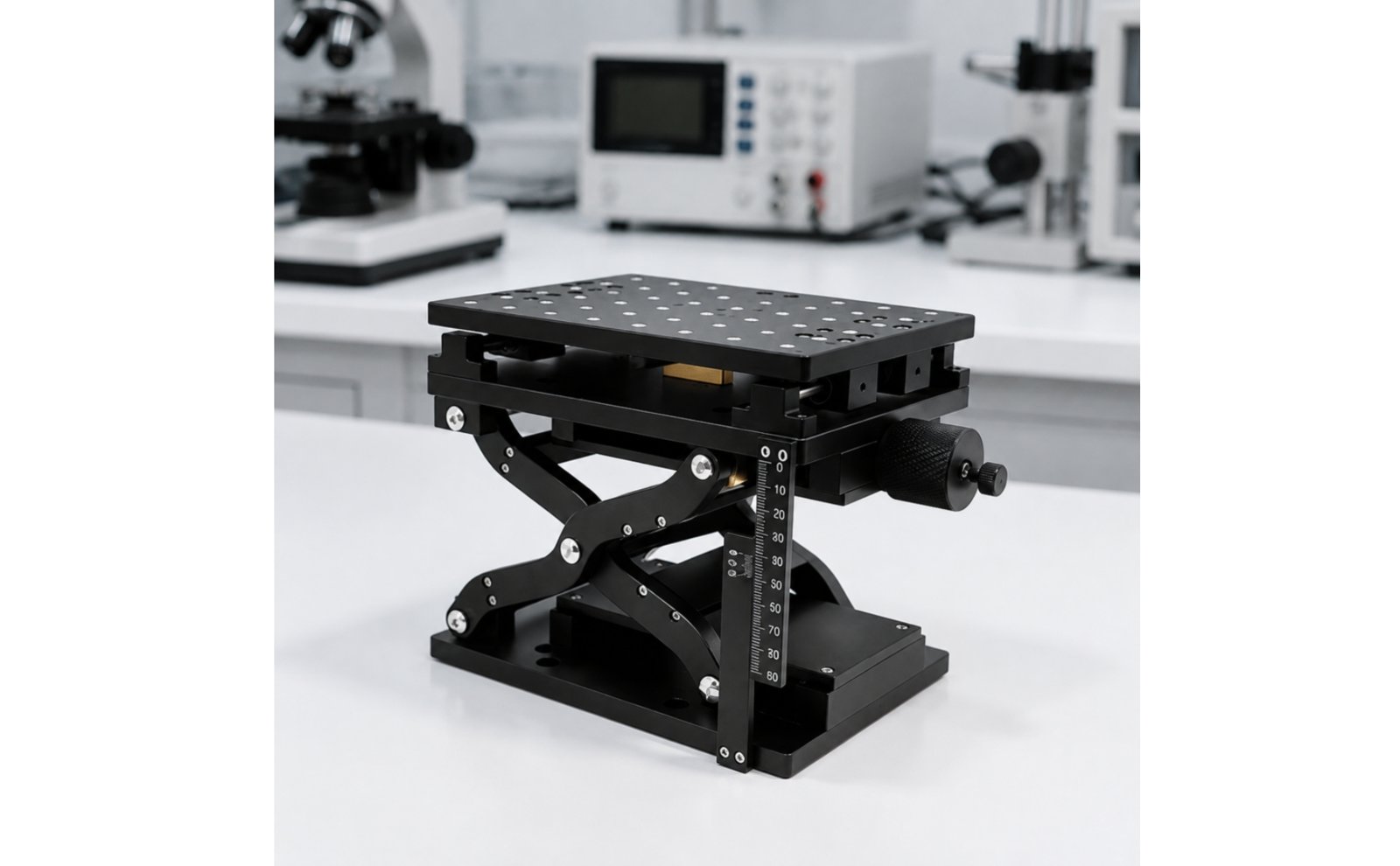

Key Features: This manual lift includes a perforated work, a graduated scale for reference measurements, and adjustment plus locking knobs, with a declared reference precision of 0.01 mm for fine-tuned positioning.
Intended Use: It serves as a stable, repeatable positioning aid for lab setups, optical work, instrument alignment, and application requiring accurate, power height and position adjustment.

This -axis lift stage is a manual precision positioning stage built for lab environments and fine-positioning tasks, offering a dependable solution for researchers and technicians who need accurate, hands-on control over their workpieces. Designed as a dedicated stage, its primary function is to deliver vertical and horizontal positioning adjustments through a fully manual, allowing users to fine-tune the height and alignment of samples, instruments, or optical components without relying on external power sources.at the center of its design, this lift stage with drive screw screw drive combines a 6061 aluminum-alloy construction with a black anodized finish appearance, paired with a ×1.5 drive screw screw and -type lifting mechanism that ensures smooth, stable movement with minimal play. This rigid build maintains alignment even under moderate loads, making it suitable for long-duration experiments and repeated adjustments. As a versatile manual lift, it comes equipped with a perforated work that accommodates various mounting and clamping setups, a clearly marked graduated scale for quick reference measurements, and separate adjustment and locking knobs that let users secure the stage firmly once the desired position is reached. With a declared reference precision of 0.01 mm, it supports highly detailed positioning workpiece even small deviations measurementWhether you are assembling optical systems, aligning measurement instruments, adjusting sample heights inside setting experiment, or working on any precision task that demands repeatable, controlled movement, this lift stage provides a practical, manual height control solution. Its compact, hand-operated design fits easily into most workbench setups, and its alloy-built construction ensures long-term durability for regular lab use.

Option: 60x80mm
