Steel Toggle Clamp 68Mm Travel
Pad-Printing Casting Form Positioning Clamp 68mm Travel Push-Style Toggle Clamp Steel for Production Workers, Jigs and Machine-Mounted Tooling
$25.89 Free shipping · tax calculated at checkout
Arrives in 12–22 days · free shipping, tracked
Total $25.89 · free shipping · sales tax calculated at checkout
In stock · leaves our partner warehouse within 4 business days
- Ships from our partner warehouse in ChinaFree to the US · arrives in 12–22 days
- 30-day returnsUnused items · see policy
- Secure checkout by StripeWe never see your card number
- Questions?Contact us · reply in 1–2 business days
- Package size
- 18 × 8 × 9 cm (7.1 × 3.1 × 3.5 in)
- Weight
- 0.35 kg (0.77 lb)
- Product size

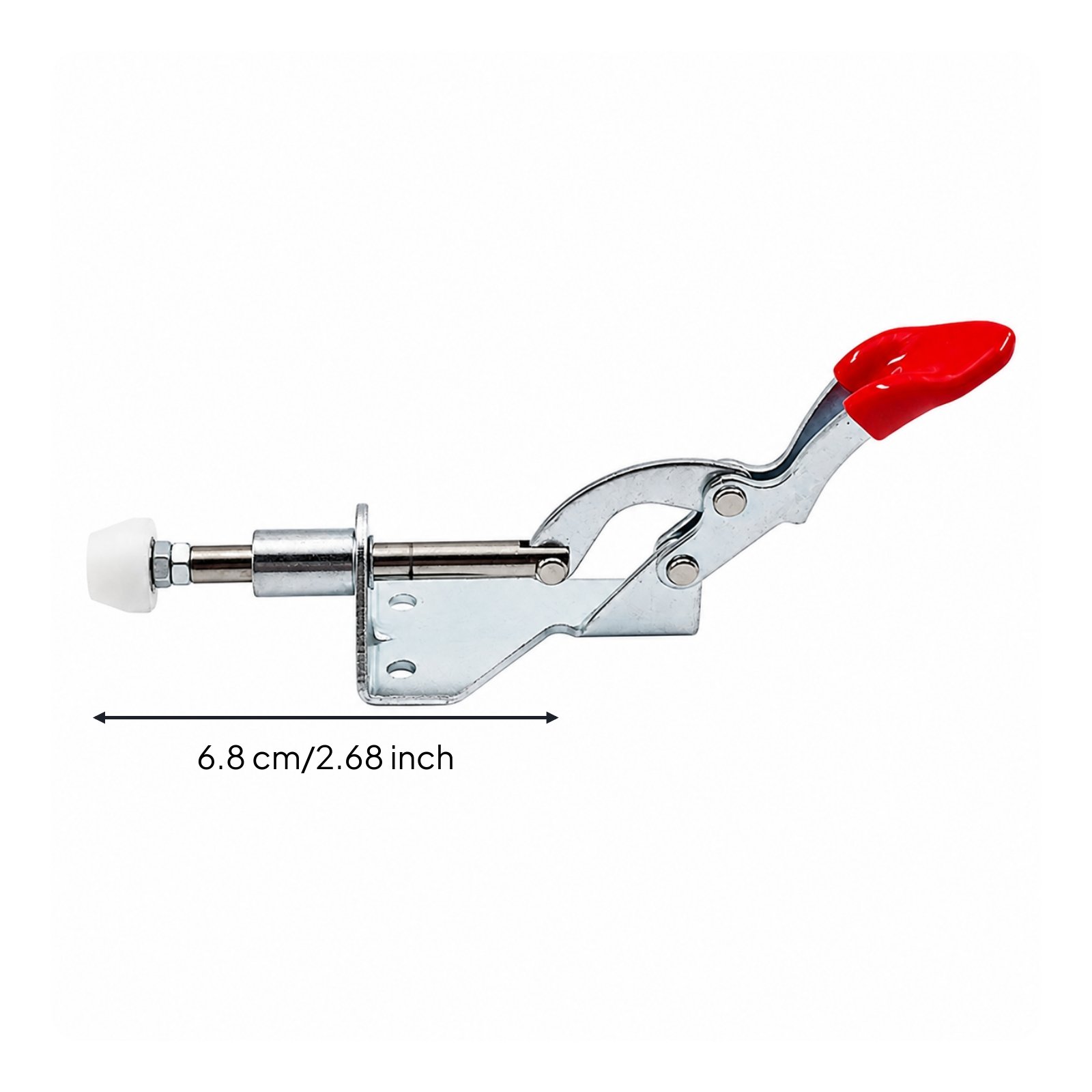

- 6.8 × 3.5 × 8.5 cm (2.7 × 1.4 × 3.3 in)
- Material
- Hot rolled pickled steel plate
- Finish
- Silver metal finish
- Handle
- Red-coated lever handle
- touch pad
- White rotating touch pad
- Travel distance
- 68 mm
- touch pad diameter
- 11 mm
- Mounting hole size
- 4.5 mm
- In the box
- Pad printing mold positioning clamp ×1
- Category
- Workshop & Tools
- Delivery
- Free standard shipping to the US, 12–22 days from order, shipped from our partner warehouse in China
- Returns
- 30-day returns on unused items
Item DCD-10001543018
About this item
Product Identity: This pad-printing casting form positioning clamp is a custom fixture accessory designed for securing and aligning in pad-printing equipment setups.
Core Function: As a push-style toggle clamp, it delivers quick, repeatable clamping action to hold workpieces and in the place during production production batches jig adjustments.
Construction Material: This toggle clamp is crafted from hot-rolled pickled hot-rolled pickled steel steel plate with a silver metal finish, delivering sturdy rigidity for workshop and machine-mounted use.

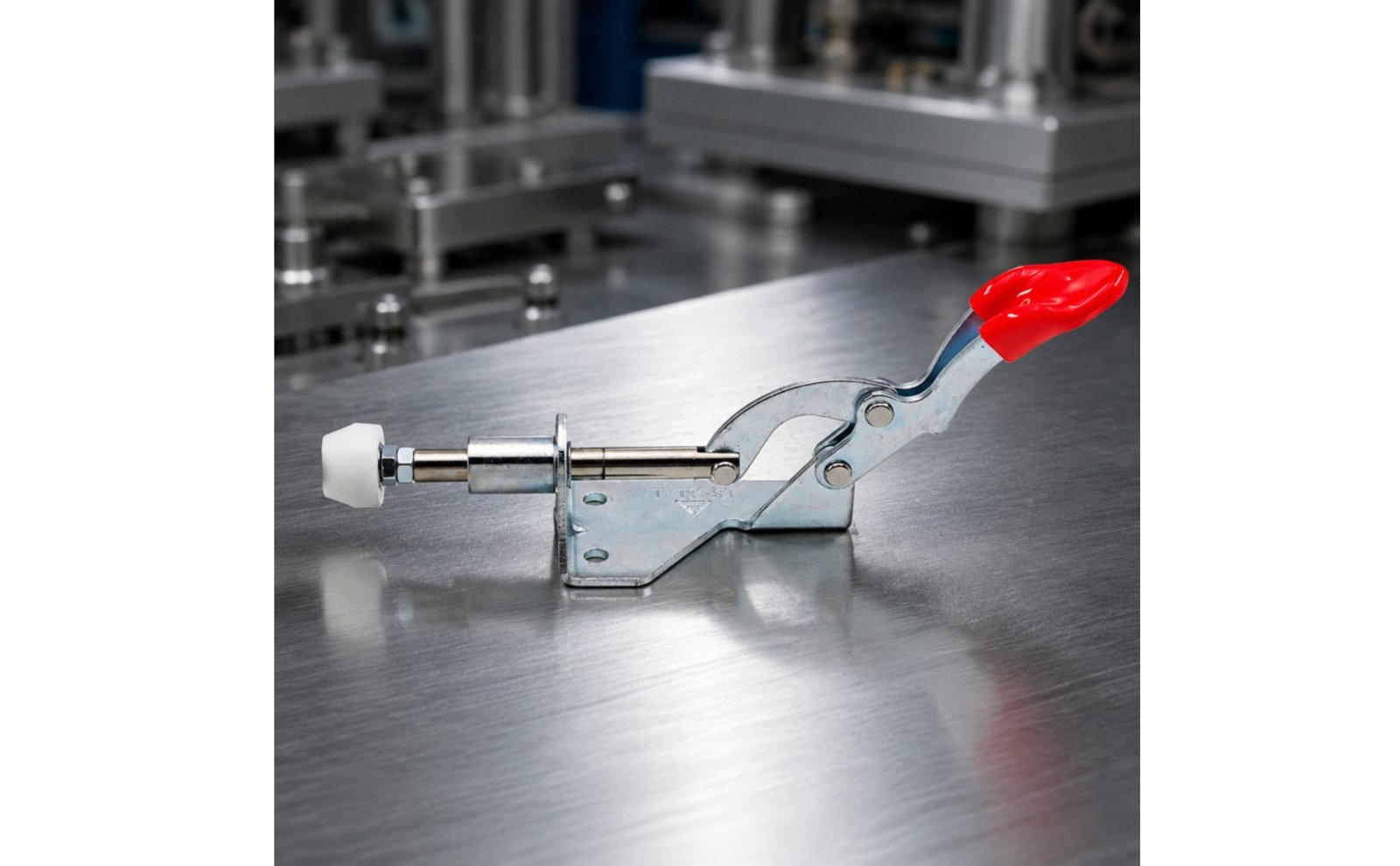

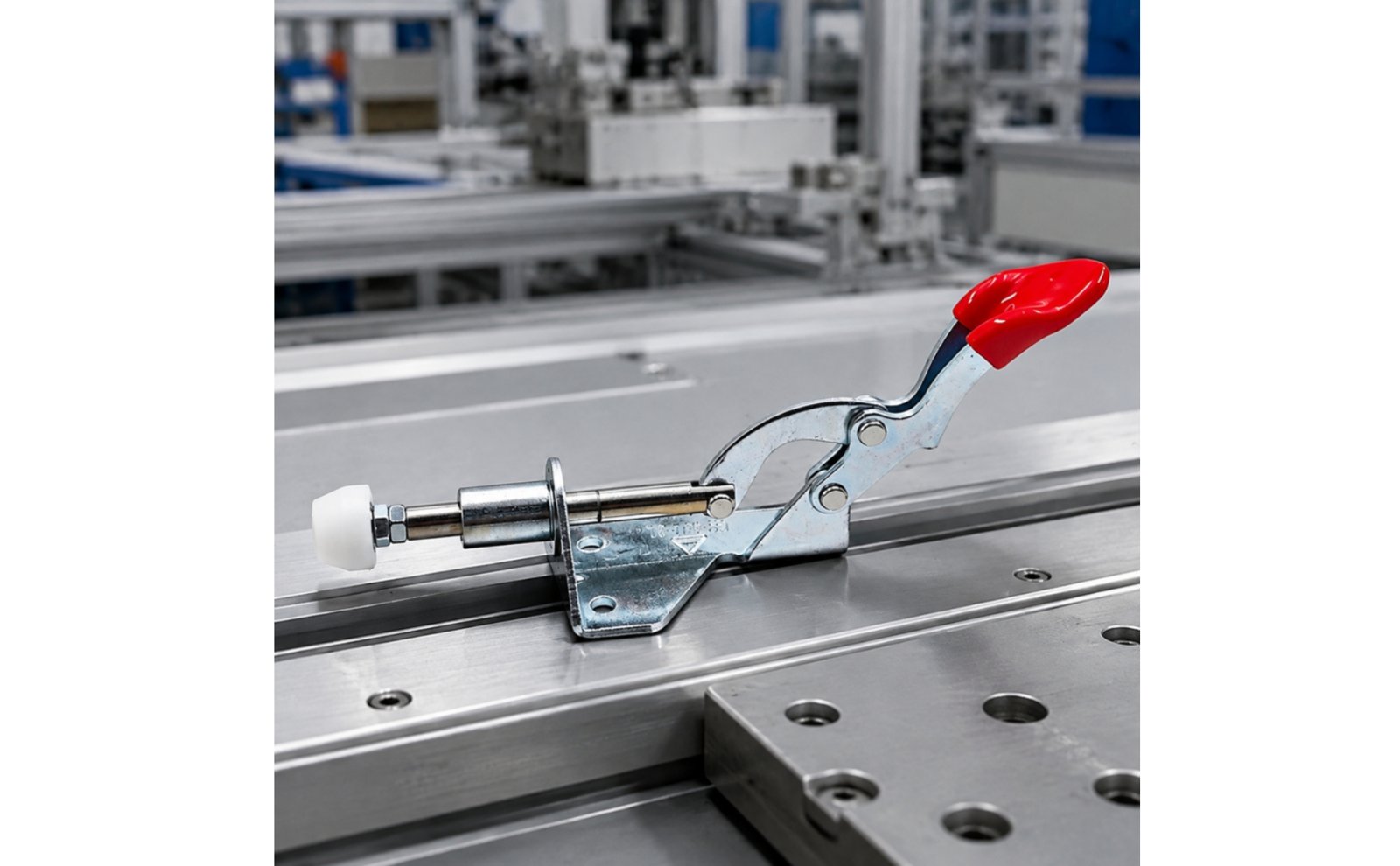

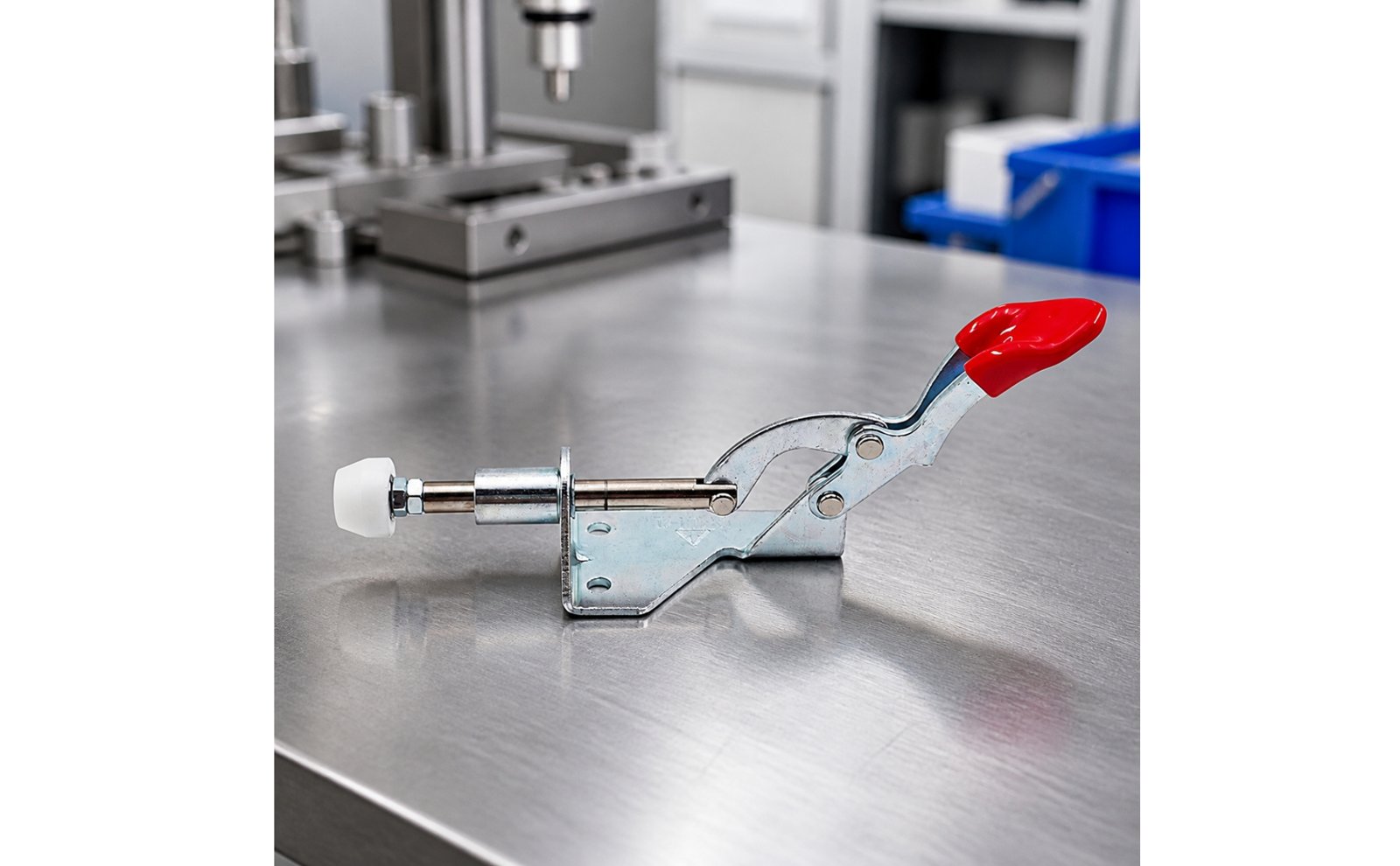

Key Components: This toggle clamp with rotating touch pad features a fixed mounting base with 4.5 mm mounting holes, a sliding threaded clamping rod, red-coated lever handle, and an 11 mm diameter white rotating touch pad at the front.
Travel and Performance: With a 68mm travel distance, the clamp provides sufficient stroke range to accommodate various casting form thicknesses and positioning setups for efficient production workflow.
This pad-printing casting form positioning clamp is a custom fixture accessory designed to secure and accurately orienting pad-printing equipment setups. Whether you are setting up new production run, adjusting positioning tool, or configuring machine-mounted tooling, this clamp gives you a reliable way to hold exactly where you need them. As a push-style toggle clamp, it delivers quick, repeatable clamping action with a simple lever motion. Instead of slow, threaded-only adjustments, the toggle mechanism lets you lock and release workpieces rapidly, cutting down on setup time and keeping production moving smoothly. This toggle clamp is crafted from hot-rolled pickled hot-rolled pickled steel steel plate with a silver metal finish, giving it the rigidity and durability needed for daily workshop use. The steel construction resists bending under clamping force, so you can count on consistent positioning production run after cycleThis toggle clamp with rotating touch pad includes a fixed mounting base with 4.5 mm mounting holes for secure installation on worktables or machine, a sliding threaded clamping rod for fine position tuning, red-coated lever handle for easy, and an 11 mm diameter white rotating touch pad at the front. The rotating pad conforms to uneven faces and helps prevent marring on delicate casting form faces. With a 68mm travel distance, the clamp offers enough stroke range to handle a variety of casting form thicknesses and positioning setups. Whether you are working with thin casting form plates or thicker fixture blocks, the adjustable range you set in the right clamping depth for each job, making it a versatile addition to anyfixture-printing workshop or production station.
Option: Pad Print Clamp
