Eyeglass Lens Marking Gauge

About this item

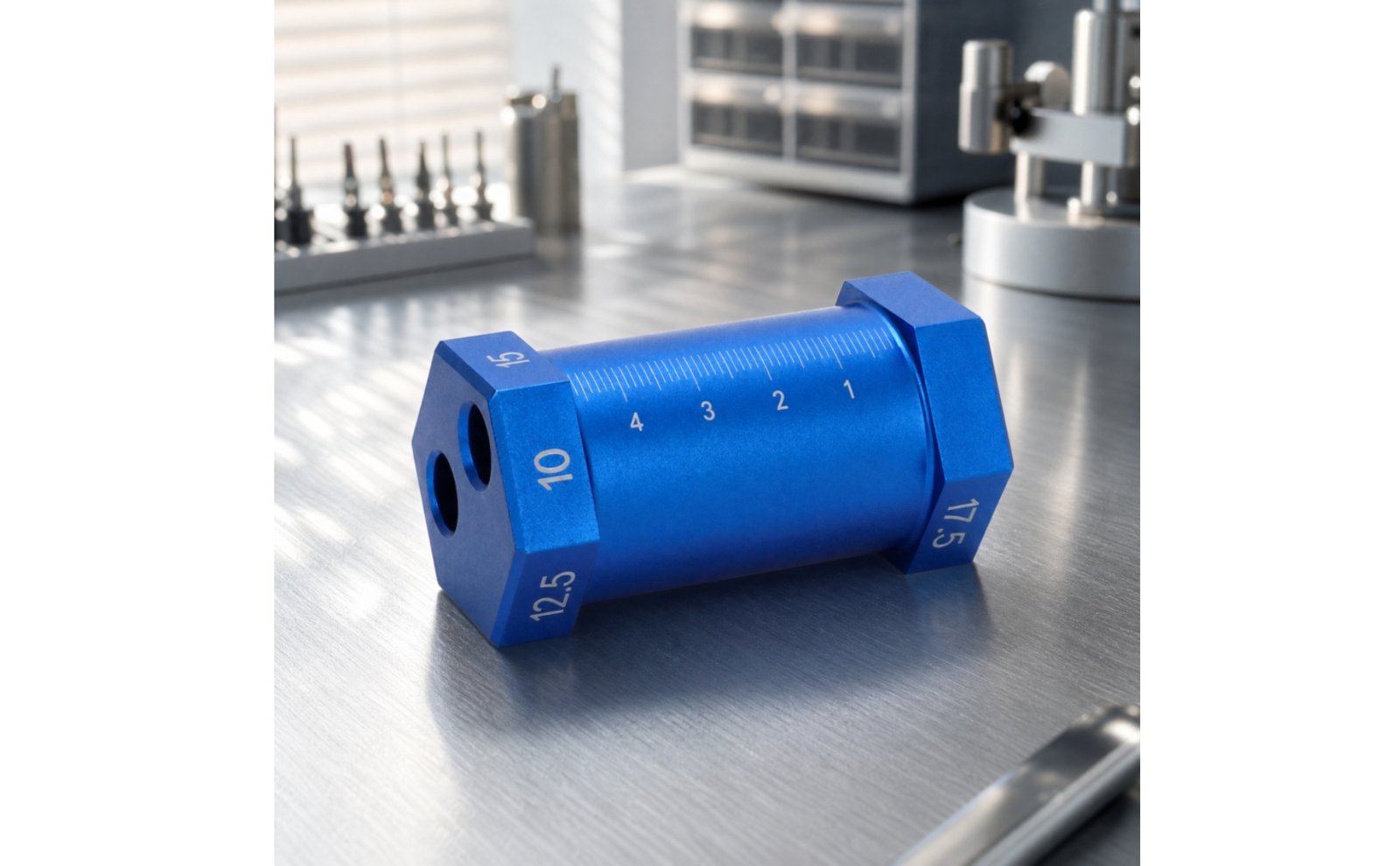

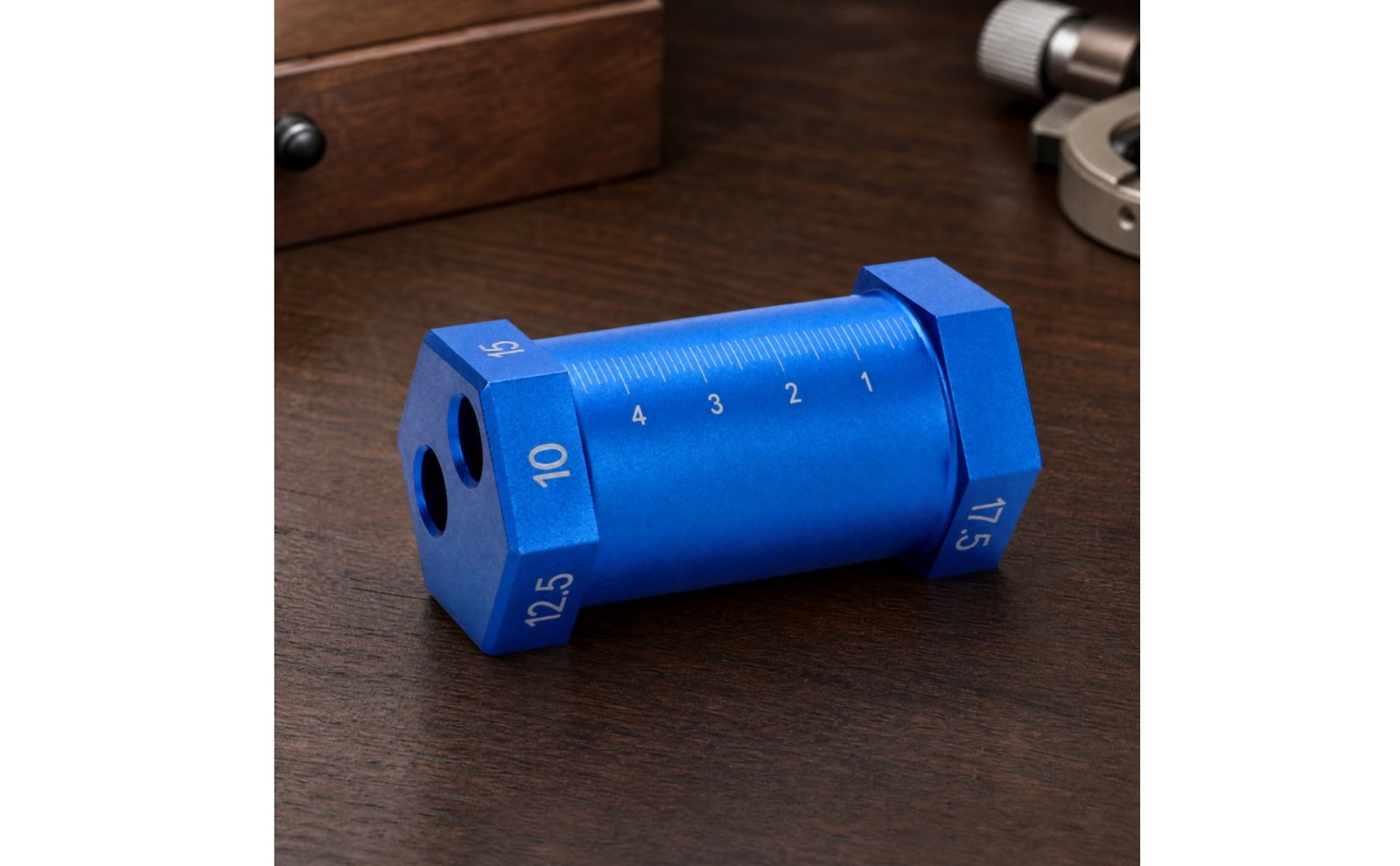

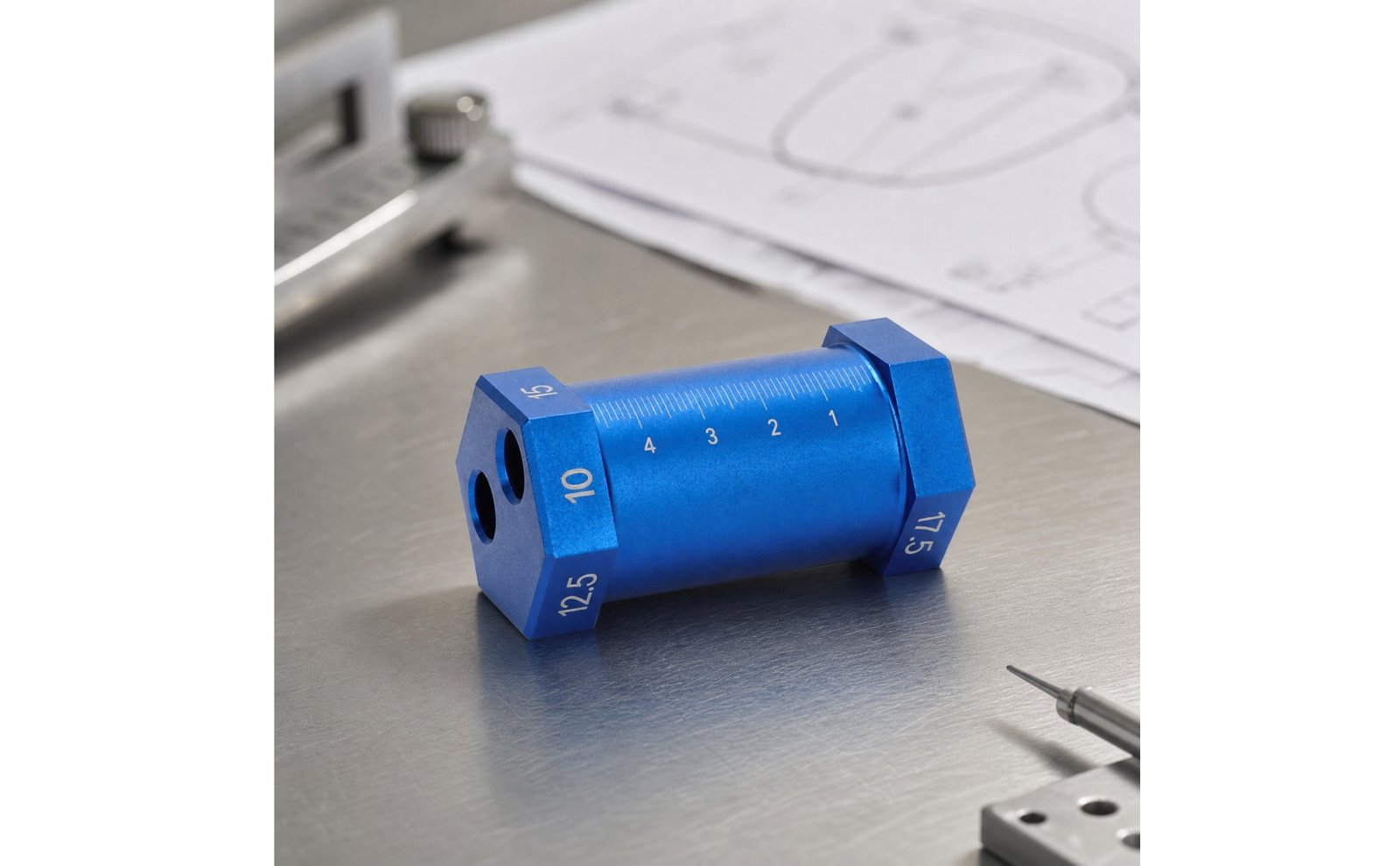

Product Identity: This lens template line-drawing tool is a precision-engineered device with a cylindrical body and hexagonal, built for optical workshop use.
Core Function: As a dedicated lens marking tool, it marks parallel alignment lines on eyeglass lenses at 9 different heights to support accurate setup work.
Design Features: This optical alignment tool features two circular openings, graduated markings, and engraved measurement references on both the body and end faces for Face reference.
Portability: Compact construction measuring 145 × 42 × 42 mm and weighing 167 g makes this eyeglass lens marking gauge easy to handle and store on any workbench.
Practical Application: This tool supports lens, positioning, and calibration work, delivering consistent and repeatable alignment results for eyewear technicians.

Designed for precision work in optical settings, this lens template line-drawing tool brings reliable marking capability to every lens setup task. Its cylindrical body paired with hexagonal gives it a stable, ergonomic form that sits comfortably hand during extended use, while its blue finish adds a clean look to any workshop setup. At alignment marking tool, this lens marking tool is built to draw parallel alignment lines on eyeglass lenses across 9 distinct height positions. Whether you are preparing lenses for outlining, or fitting, having clearly marked reference lines directly on the lens surface dramatically reduces the chance of misalignment and ensures each step of the process follows a consistent. What sets this optical alignment tool standout its thoughtfully arranged set of reference markings. Graduated markings run along the cylindrical body, while engraved measurement references appear on end faces, giving you multiple faces to take measurements from and line against. Two circular openings further extend its utility, letting you position the tool over lens centers or reference points before marking. Weighing just 167 g and measuring only 145 × 42 × 42 mm, this eyeglass lens marking gauge is genuinely compact. It slides easily into a tool drawer, sits unobtrusively on a workbench, and can be picked up and maneuvered with one hand without fatigue. For opticians and eyewear technicians who move between workstations or work unlimited space, that small footprint makes a noticeable difference in daily workflow. Besides essential line marking, this tool supports a full range of lens setup tasks including, positioning, and calibration. By delivering repeatable, parallel alignment lines at multiple heights, it helps you produce consistent results job after job, reducing rework and improving the overall quality of every pair of eyeglasses you prepare.

Option: Template Marker
