7-Inch Resistive Touchscreen HMI Display

About this item

Product Identity: The User Interface Panel Enhanced NX8048K070 display is a 7.0-inch human-machine interface unit with an 800 × 480 resolution, 65K color output, and LED backlight designed for embedded control and setups.
Core Function: This 7-inch resistive touchscreen HMI display delivers responsive touch input and clear visual, serving as a direct user interface for equipment control, data display, and system interaction.
Hardware Features: The HMI display includes 32 32 MB onboard storage storage, 1,024 bytes of non-volatile memory, 8,192 bytes brand, a 1,024-byte instruction, built-in live clock, GPIO, and a Micro TF/external storage card slot supporting up to 32 GB FAT32 cards.
Display Performance: This touchscreen display offers adjustable brightness from 0 to 230 lux 1% steps, a 154.08 mm × 85.92 mm visual area, and an LED backlight with an average rated lifetime exceeding 30,000 hours for long-term reliability.

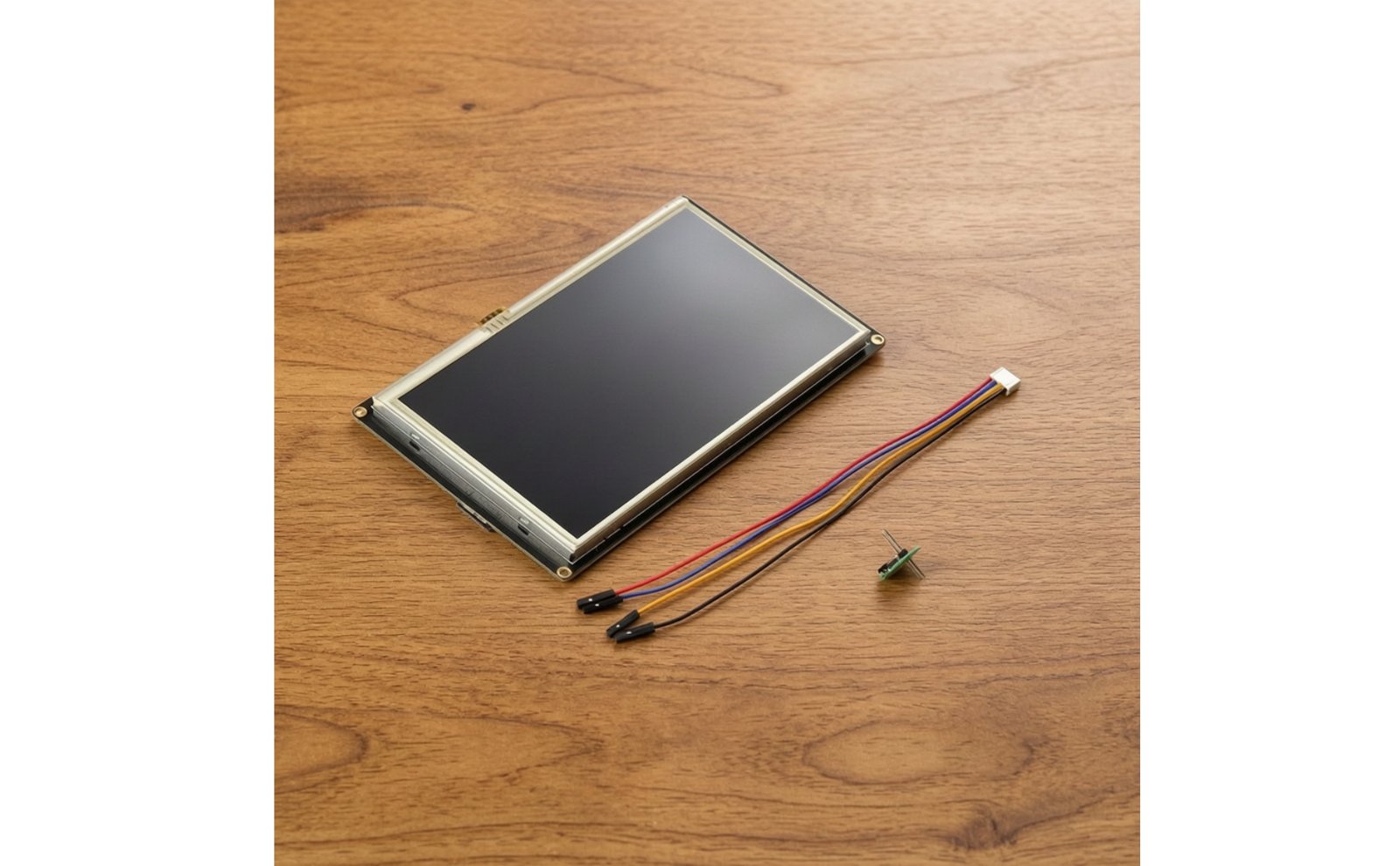

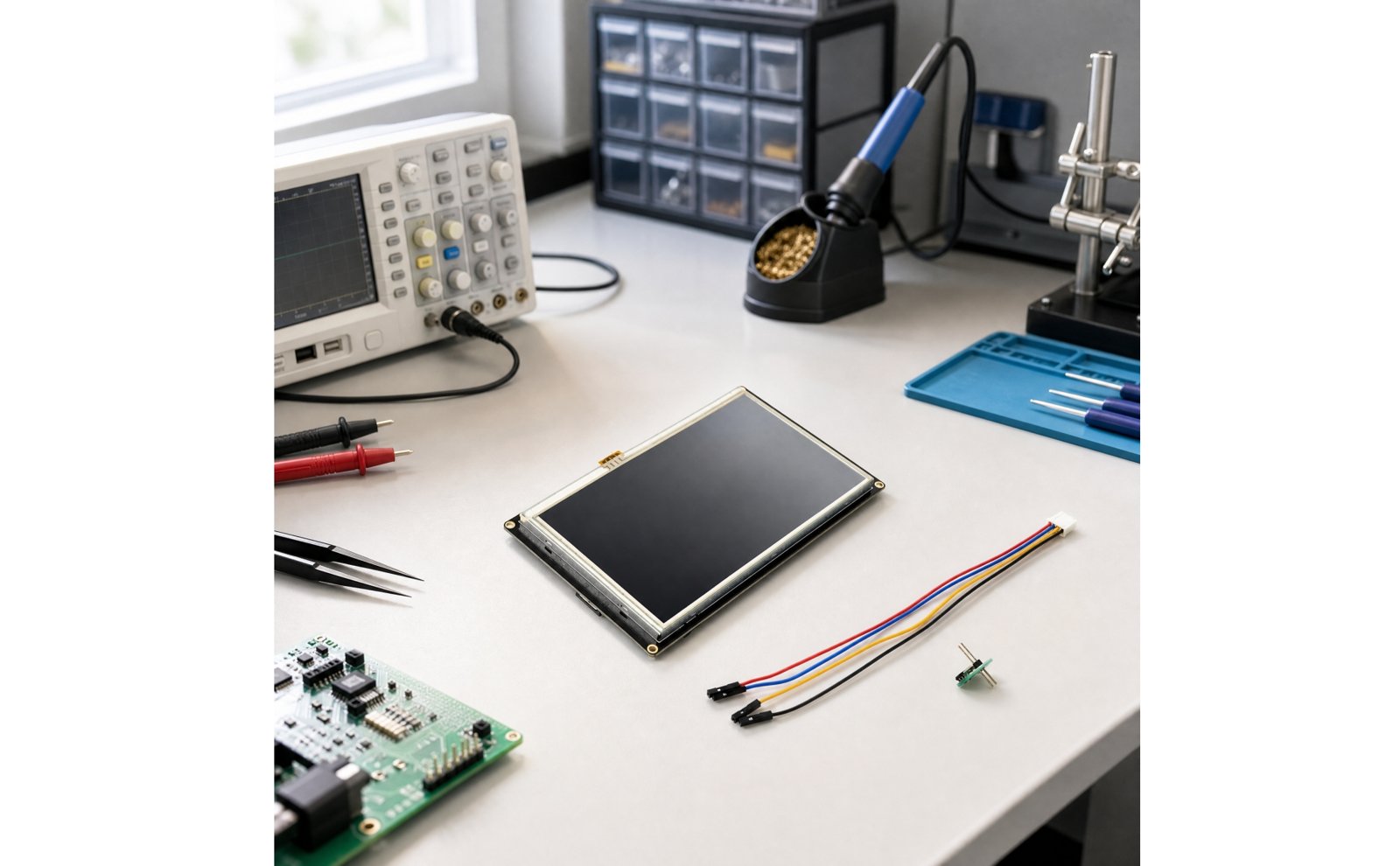

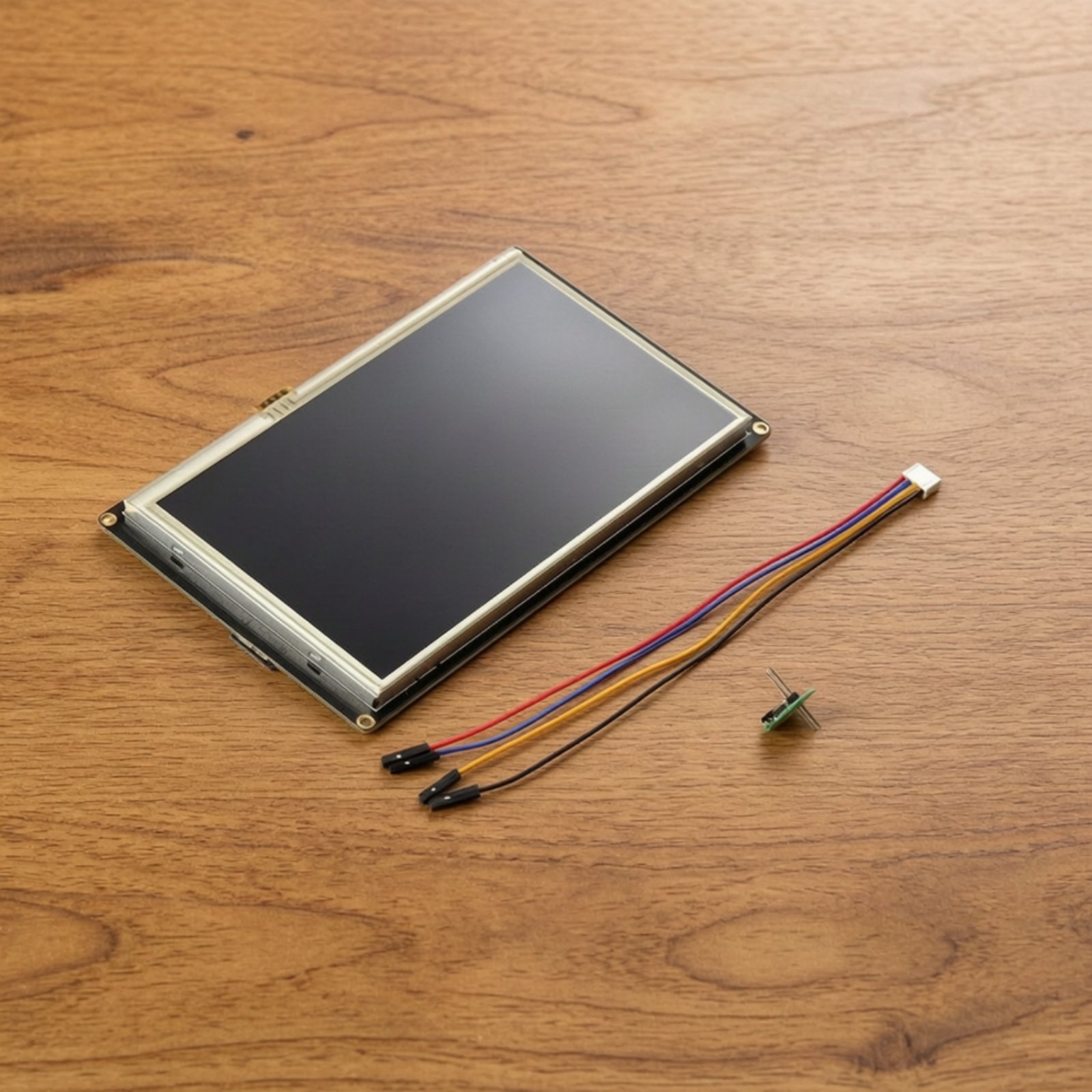

Application Purpose: Ideal for prototype development, control panels, automation projects, and equipment interfaces, the display supports 5 V 2 A power input and comes with a power-supply test board and XH2.54 4-pin cable for quick setup.

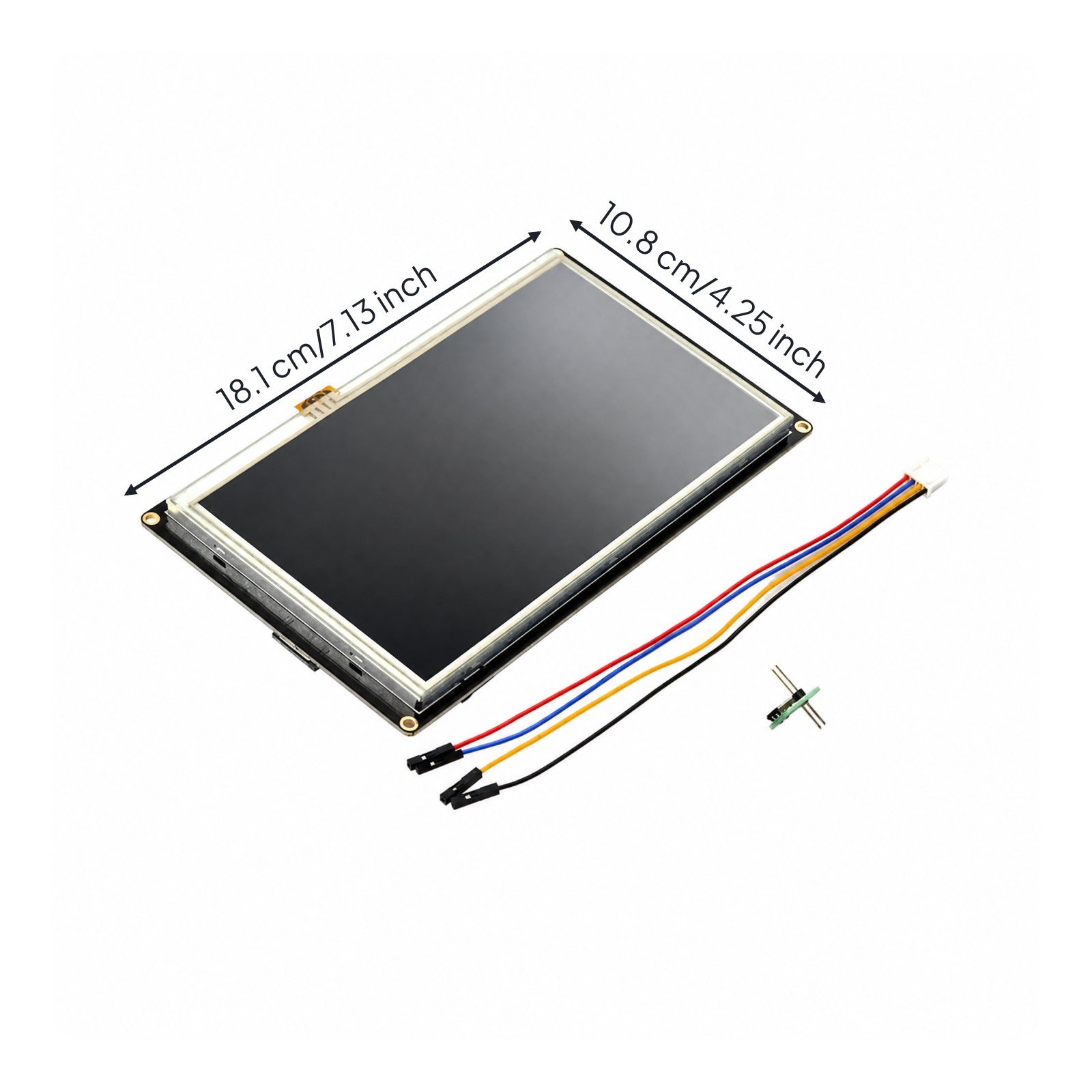

The User Interface Panel Enhanced NX8048K070 display is a compact 7.0-inch human-machine interface unit built for embedded systems. With an 800 × 480 resolution and 65,536-color output, it delivers sharp, detailed visuals suitable for both text and graphical interface designs. Its overall dimensions of 181 mm × 108 mm × 9.3 mm and net weight of 268 Make Tool it easy to integrate into panels and custom enclosures without adding excessive bulk. This 7-inch resistive touchscreen HMI display provides accurate, pressure-force-sensing touch input that works reliably even with gloved hands or styluses, making it well suited for industrial and workshop environments. Users can move through menus, adjust parameters, and trigger actions directly on the screen, creating an intuitive control experience for a wide range of equipment types. The HMI display is packed with onboard onboard features to support flexible project development. It includes 32 MB of flash storage for storing UI designs and data, 1,024 bytes of non-volatile memory for persistent settings, 8,192 bytes of data storage runtime operations, and a 1,024-byte instruction for smooth action code processing. It also features a built-in live clock for time-based functions, GPIO pins for external device control, and a Micro TF/external storage card interface supporting up to 32 GB FAT32 cards for additional storage or data logging. This touchscreen display offers practical visual quality for varied lighting conditions. Brightness is adjustable from 0 to 230 lux 1% increments, so you can fine-tune the output forcreate indoor rooms or brighter work areas. The active visual area measures 154.08 mm × 85.92 mm, providing ample display view for clear layouts, while the LED backlight carries an average rated lifetime of over 30,000 hours for extended use. Designed for prototype development, automation projects, equipment interfaces, and control panels, the display runs on a 5 V, 2 A power supply and ships with a power-supply test board and an XH2.54 4-pin cable. These included accessories help you get up and running quickly, whether you are building a demonstration-of-concept prototype or incorporating a permanent interface into a finished machine.

Option: Nx8048k070
