Adjustable Tracking Guide

About this item

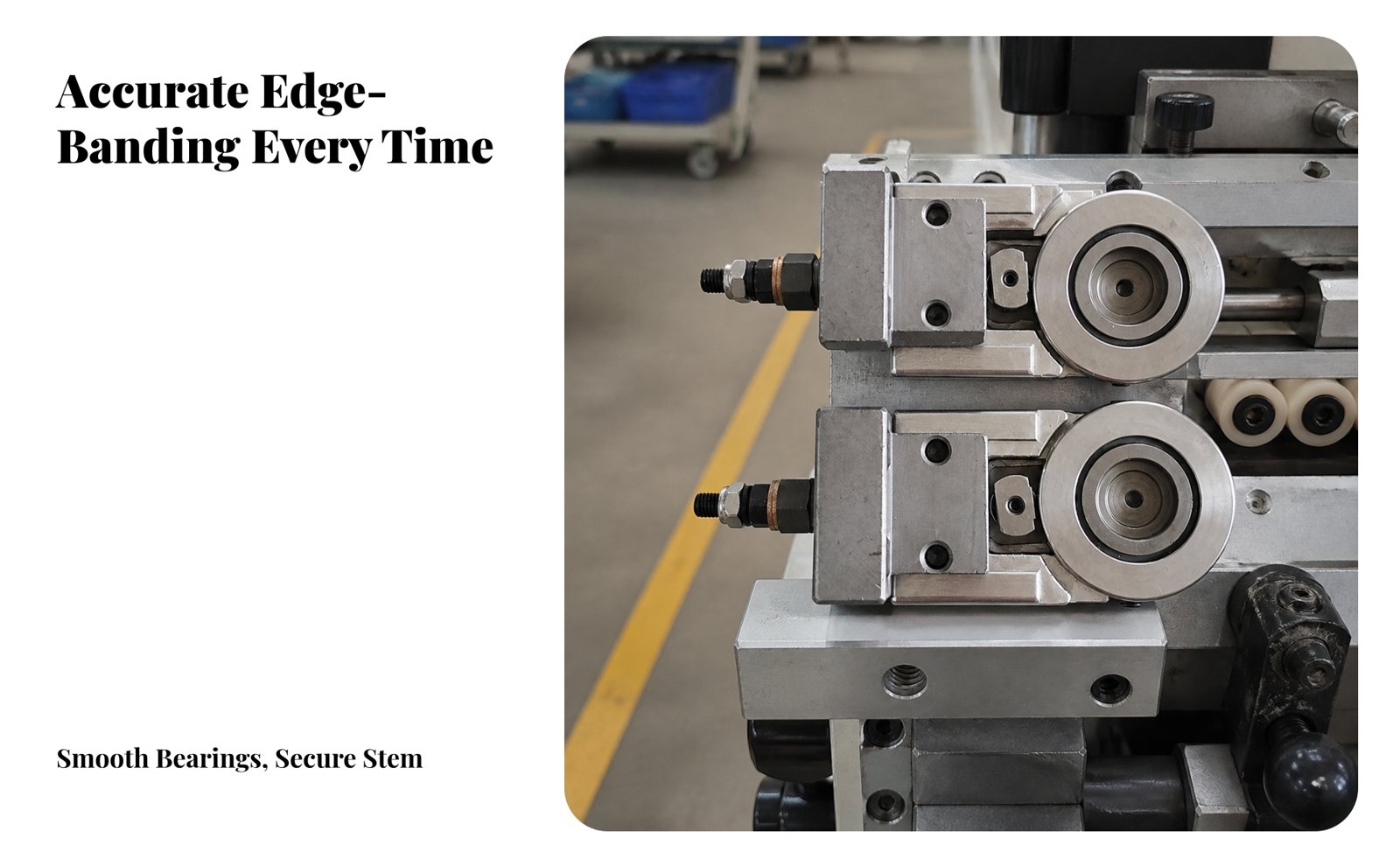

Product Identity: This precision machine part is a metal tracking guide front side-banding machine, built as a edge-banding machine component for conventional double-head edge-banding equipment.
Core Function: This tracking guide assembly is engineered to guide and tracking material steadily during edge-banding operations, supporting consistent feed alignment as material moves through the machine.

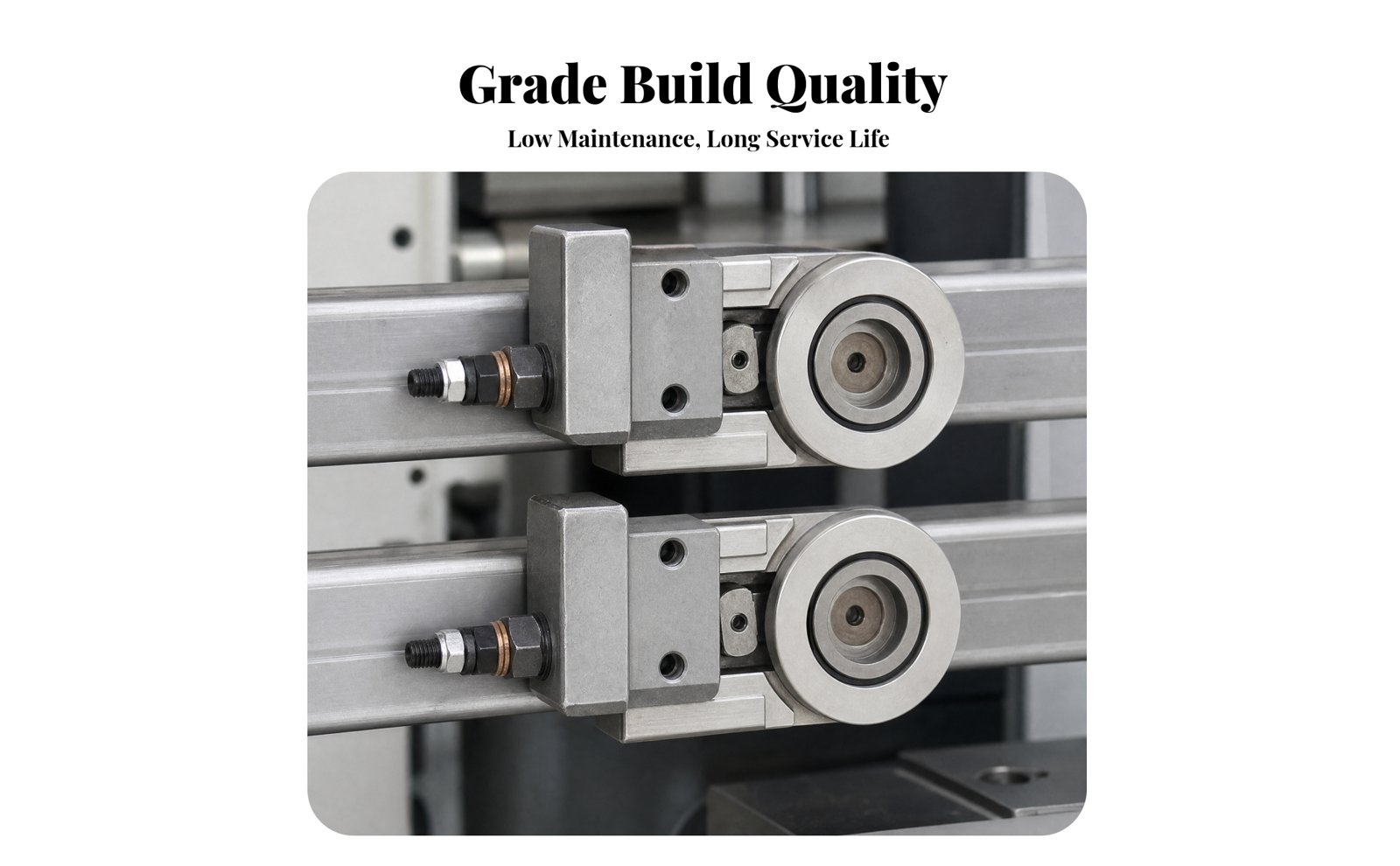

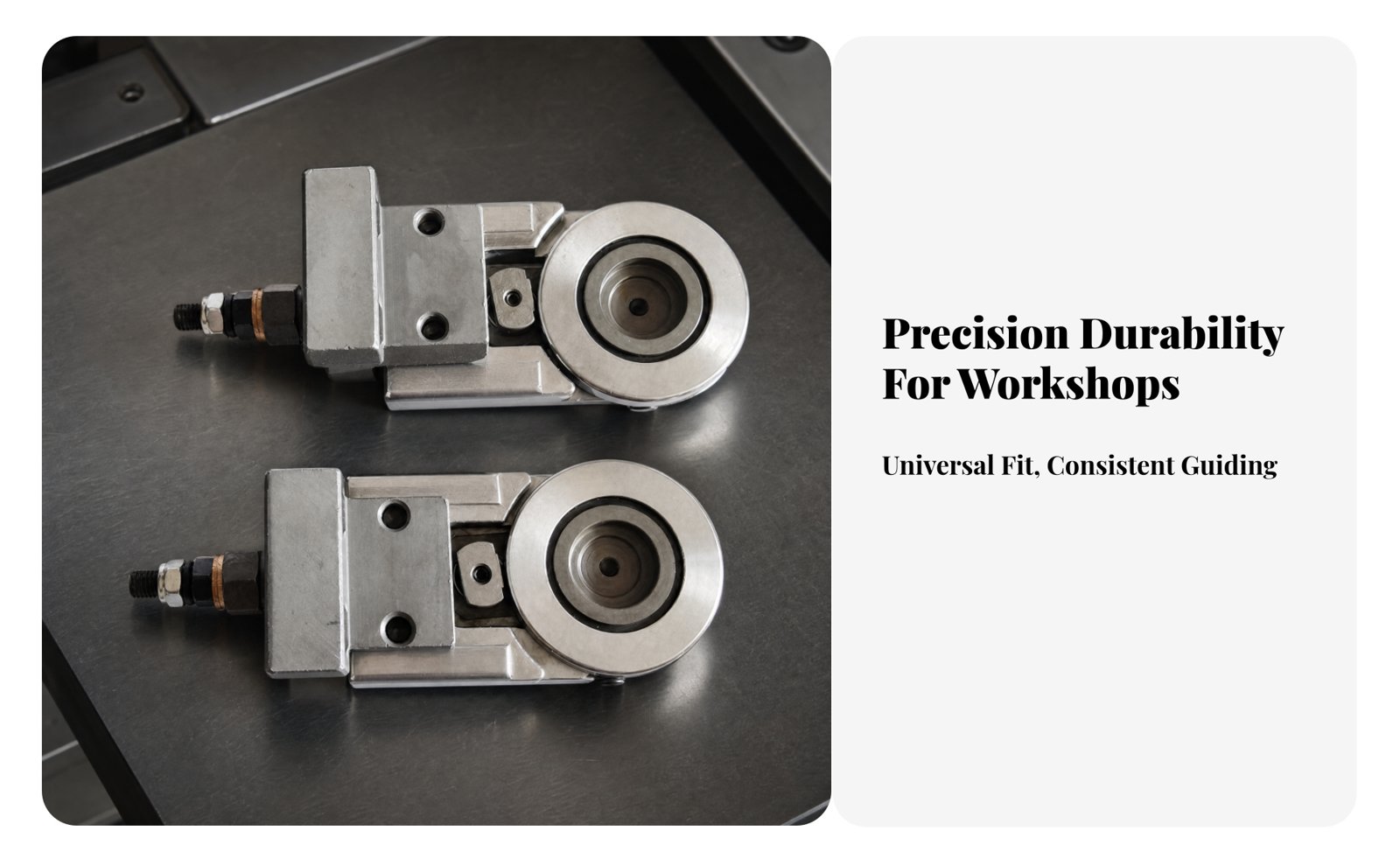

Construction: This guide wheel assembly with bearing features a silver-toned machined metal body, a circular guide wheel with built-in bearing, and precision-drilled fastening holes for secure installation.
Adjustability: Equipped with an adjustable threaded bolt paired with lock nuts, this component allows fine position tuning to suit different material thicknesses and machine setups.
Dimensional Specs: The guide wheel measures approximately 8 mm thick, the main mounting body approximately 19 mm thick, and the full assembly has an indicated width of 38 mm.

Built for carpentry professionals and workshop technicians who rely on consistent edge-banding results, this machined metal adjustable tracking guide is a dependable machine part designed to keep your double-head edge-banding machine running smoothly. It serves as a dedicated metal tracking guide front side-banding machine setups, fitting right into existing equipment as a reliable edge-banding machine component for routine maintenance or part replacement. At guide, this tracking guide assembly performs the job of guiding and tracking workpiece material as it passes through the edge-banding process. By maintaining constant, uniform motion, it helps prevent misfeeds, uneven banding, and material misalignment that can guide to wasted stock and rework. Whether you are running solid wood, plywood, or panel stock, the guide keeps material on a consistent path through the machine. The guide wheel assembly with bearing is constructed from silver-toned machined metal for durability and long service life. The circular guide wheel incorporates an built-in bearing that delivers smooth, low-friction rotation, while the precision-machined mounting body and fastening holes ensure a secure, wobble mount to the machine frame. This rigid metal construction stands up to the vibration and continuous use common in active workshop environments. Fine-tuning the guide position is straightforward thanks to the adjustable threaded bolt with matching nuts. technicians bearing in the precisiontrack position needed for different material widths, edge tape profiles, or machine calibrations, then firmly once the ideal setting is found. This adjustability makes the part versatile across of production setups and material types. With a guide wheel thickness of approximately 8 mm, body thickness of approximately 19 mm, and an overall assembly width of approximately 38 mm, the component is sized to fit conventional double-head edge-banding machines. Its compact, machined means it installs cleanly without crowding other machine components, and its metal-made build delivers the constant guidance carpentry professionals depend on for clean, accurate edge-banding results job after job.

Option: Dual Head PAIR
