Manual Rotary Indexing Table
Manual Rotary Indexing Table Angle Positioning, Heavy-Duty Steel Construction, Indexing base with Central Hole, for Machining
$458.69 Free shipping · tax calculated at checkout
Arrives in 11–21 days · free shipping, tracked
Total $458.69 · free shipping · sales tax calculated at checkout
In stock · leaves our partner warehouse within 4 business days
- Ships from our partner warehouse in ChinaFree to the US · arrives in 11–21 days
- 30-day returnsUnused items · see policy
- Secure checkout by StripeWe never see your card number
- Questions?Contact us · reply in 1–2 business days
- Package size
- 18 × 15 × 10 cm (7.1 × 5.9 × 3.9 in)
- Weight
- 3.00 kg (6.61 lb)

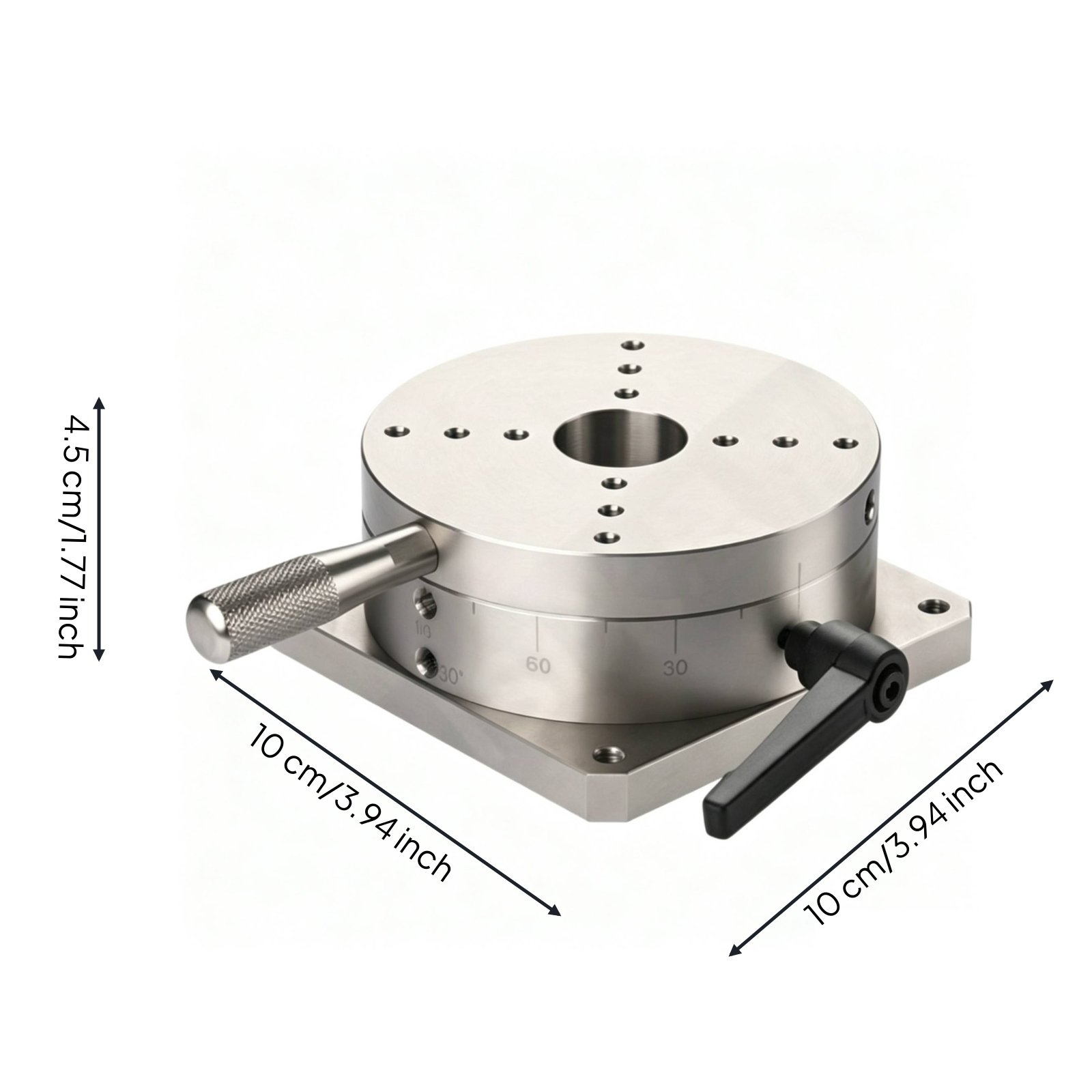

- Product size
- 10 × 10 × 4.5 cm (3.9 × 3.9 × 1.8 in)
- Material
- 45 Steel
- Structure
- Circular top plate with square base and central through hole
- Division layout
- 12/24
- Top plate diameter
- 98 mm
- Thickness
- 45 mm
- Weight
- 2.5 kg
- Divisible load
- 196 N (20 kgf)
- Indivisible load
- 1470 N (150 kgf)
- Features
- Angle increment 30° ±single degree and 15° ±single degree
- In the box
- Rotating Stage ×1
- Category
- Workshop & Tools
- Delivery
- Free standard shipping to the US, 11–21 days from order, shipped from our partner warehouse in China
- Returns
- 30-day returns on unused items
Item DCD-10001447910
About this item
Product Identity: This manual rotary indexing table serves as a high-precision positioning component for workshop and workshop environments.
Primary Function: working as a manual rotary stage, it allows users to smoothly rotate and position workpieces at angle intervals.
Key Features: Designed as an indexing base with central hole, it features a 98 mm diameter circular top plate and a central through-hole to accommodate shafts or cables.
Sturdy Construction: Built from sturdy 45 steel, this heavy-duty indexing table weighs 2.5 kg and supports a divisible load of 196 south indivisible load of 1470 N.
Accurate Indexing: This manual rotary indexing base offers a 12/24 division layout with marked angle steps of 30° ±single degree and 15° ±single degree for reliable alignment.

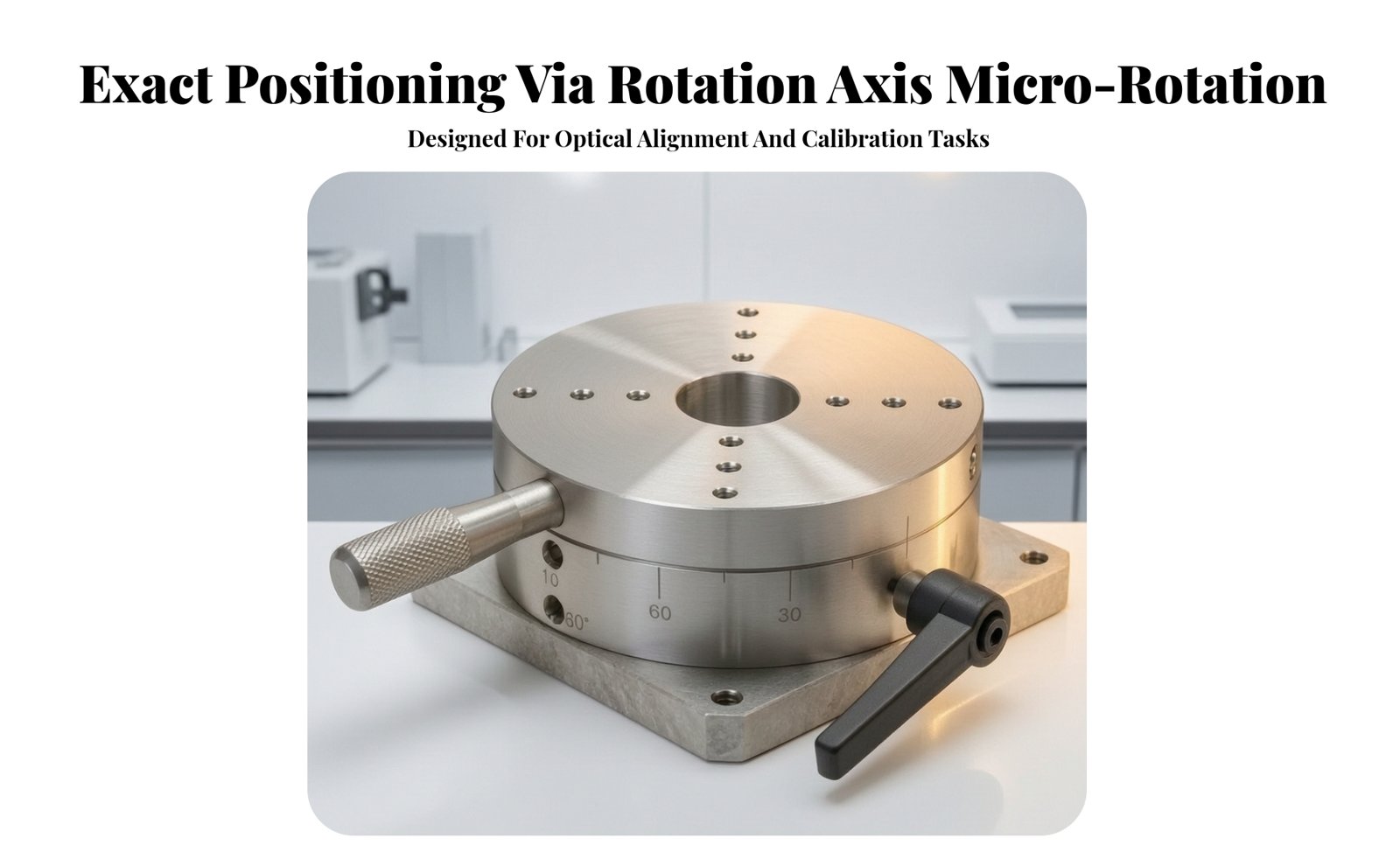

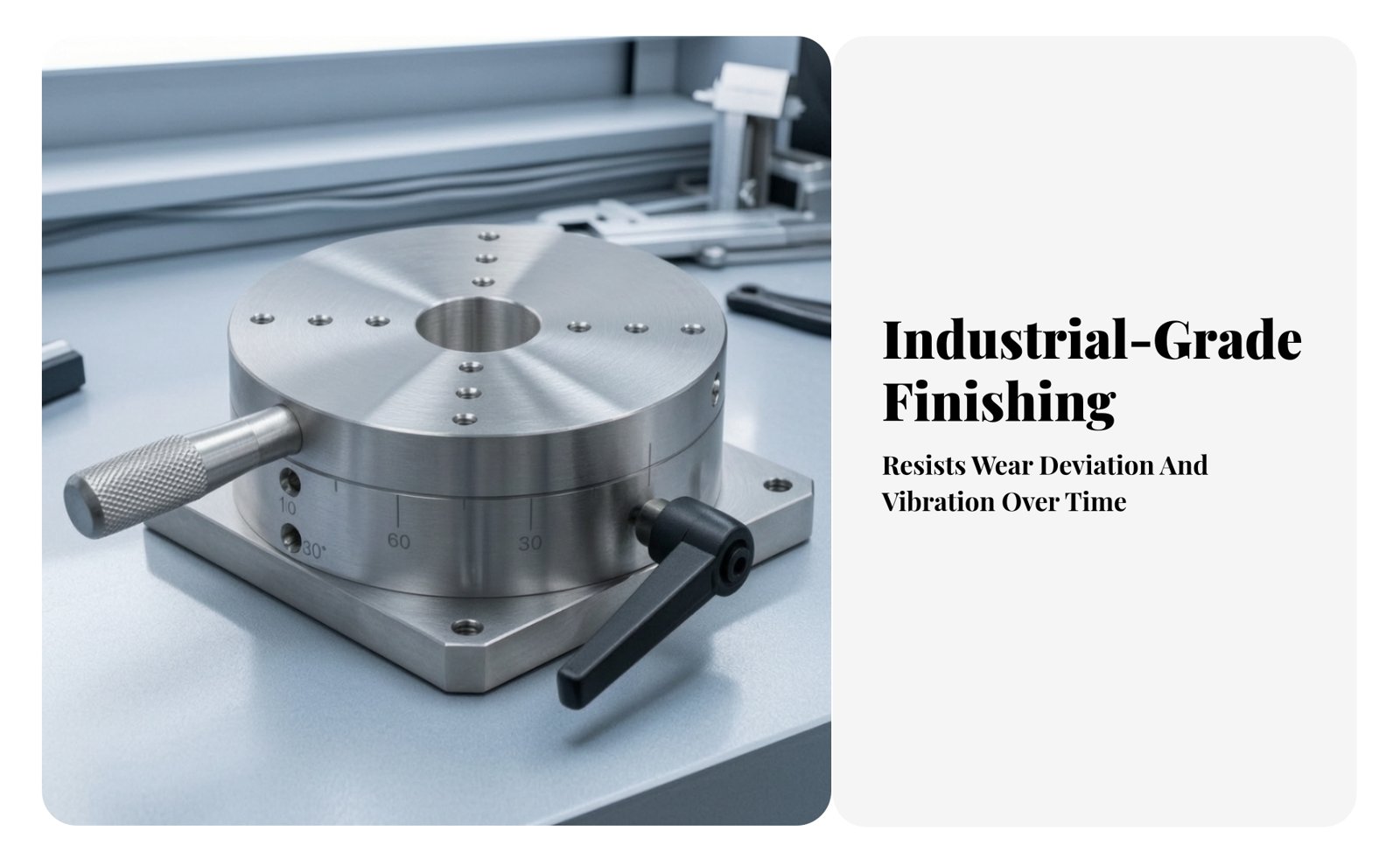

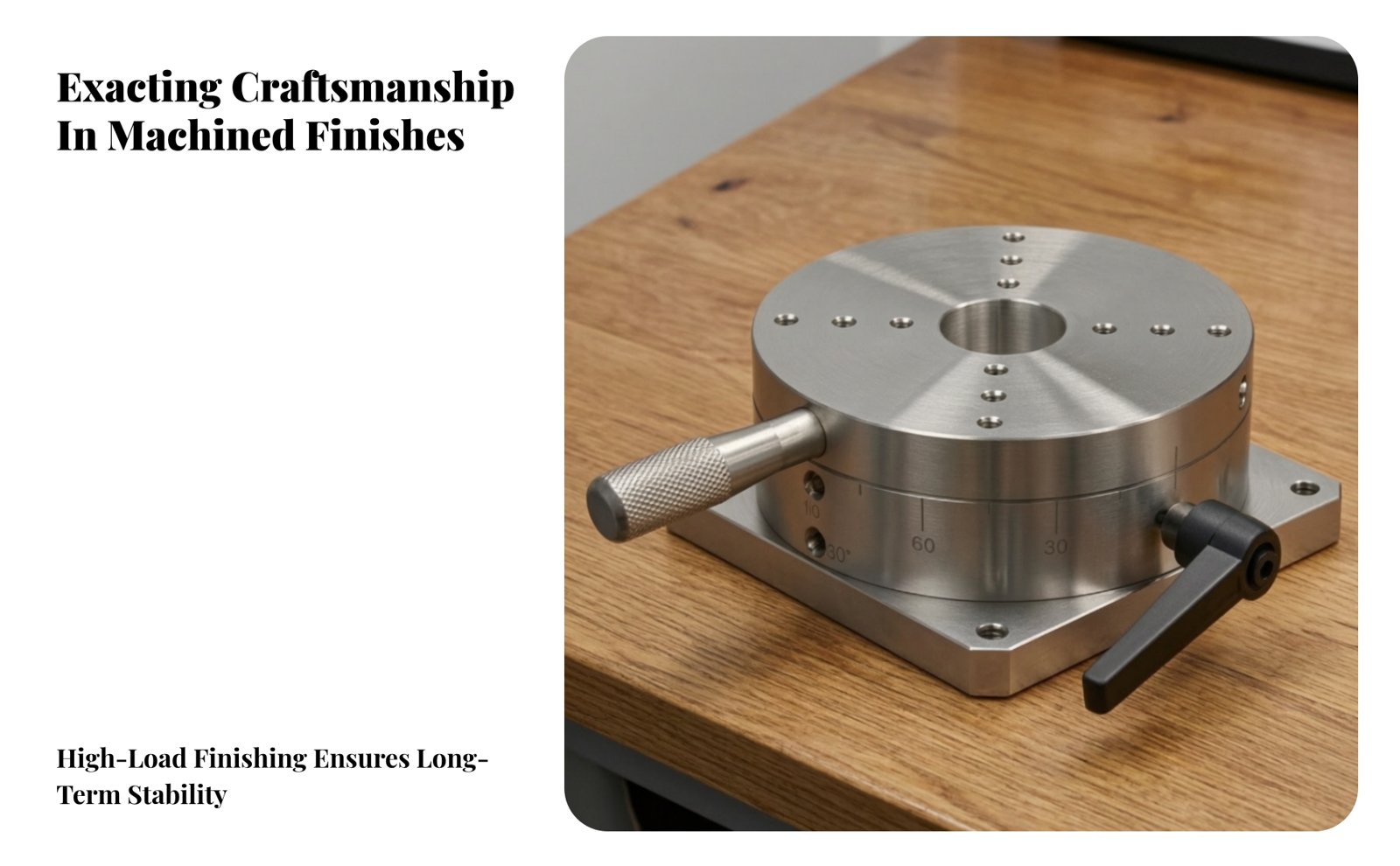

Enhance your workshop precision with this manual rotary indexing table, designed to provide exceptional accuracy for your alignment and machining tasks. Serving as a highly stable manual rotary stage, this unit allows for smooth, controlled rotation, making it an indispensable tool for inspection work, optical setups, and light precision machining. The sturdy body is constructed from 45 steel, providing a solid 2.5 kg foundation that minimizes vibrations and ensures long-term durability under demanding conditions. This indexing base with central hole features a 98 mm diameter circular top plate and a square base, offering a compact 45 mm thickness that incorporates seamlessly into existing benches and fixtures. The central through-hole is highly practical, allowing cables, shafts, or specific fixtures to pass directly through the center of rotation. With a specified divisible load capacity of 196 N (20 kgf) and an indivisible load capacity of 1470 N (150 kgf), it easily handles heavy-duty workpieces without compromising its smooth mechanical action. Achieving exact angles is simple with this manual rotary indexing base. It is designed with a versatile 12/24 division layout, featuring clearly marked angle steps of 30° ±single degree and 15° ±single degree. Whether you are indexing parts for lights milling, setting up measurement angles, or configuring optical components, this reliable indexing table provides the stable base and repeatable accuracy required to deliver reliable performance
Option: Mus100-h45 Dia 98MM
