Straight Hole Guide with Scale
Straight Hole Guide Built in Scale Board Joining Jig Threaded Bushings Straight Hole Guide
$64.39 Free shipping · tax calculated at checkout
Arrives in 12–22 days · free shipping, tracked
Total $64.39 · free shipping · sales tax calculated at checkout
In stock · leaves our partner warehouse within 4 business days
- Ships from our partner warehouse in ChinaFree to the US · arrives in 12–22 days
- 30-day returnsUnused items · see policy
- Secure checkout by StripeWe never see your card number
- Questions?Contact us · reply in 1–2 business days
- Package size
- 26 × 22 × 8 cm (10.2 × 8.7 × 3.1 in)
- Weight
- 0.80 kg (1.76 lb)
- Product size

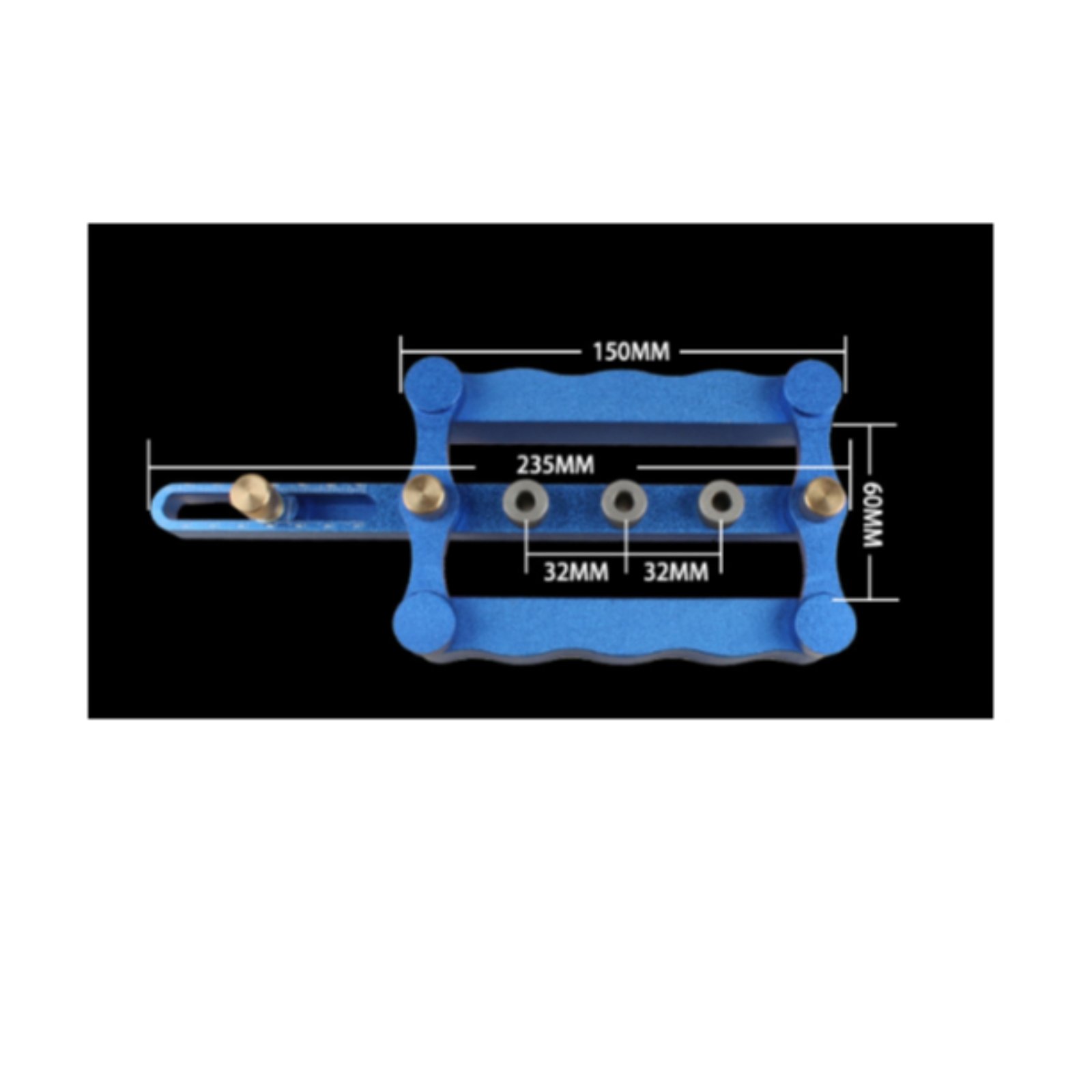

- 23.5 × 15 × 6 cm (9.3 × 5.9 × 2.4 in)
- Material
- 6150 Aluminum, 60CRV Steel
- Color
- Blue
- Structure
- Rectangular frame with long guide rail
- Features
- built-in positioning scale, adjustment knobs, multiple threaded guide bushings
- In the box
- Straight Hole Locator ×1, Drill Sleeve ×9, Dowel Pin ×3
- Category
- Sewing & Crafts
- Delivery
- Free standard shipping to the US, 12–22 days from order, shipped from our partner warehouse in China
- Returns
- 30-day returns on unused items
Item DCD-10001274864
About this item

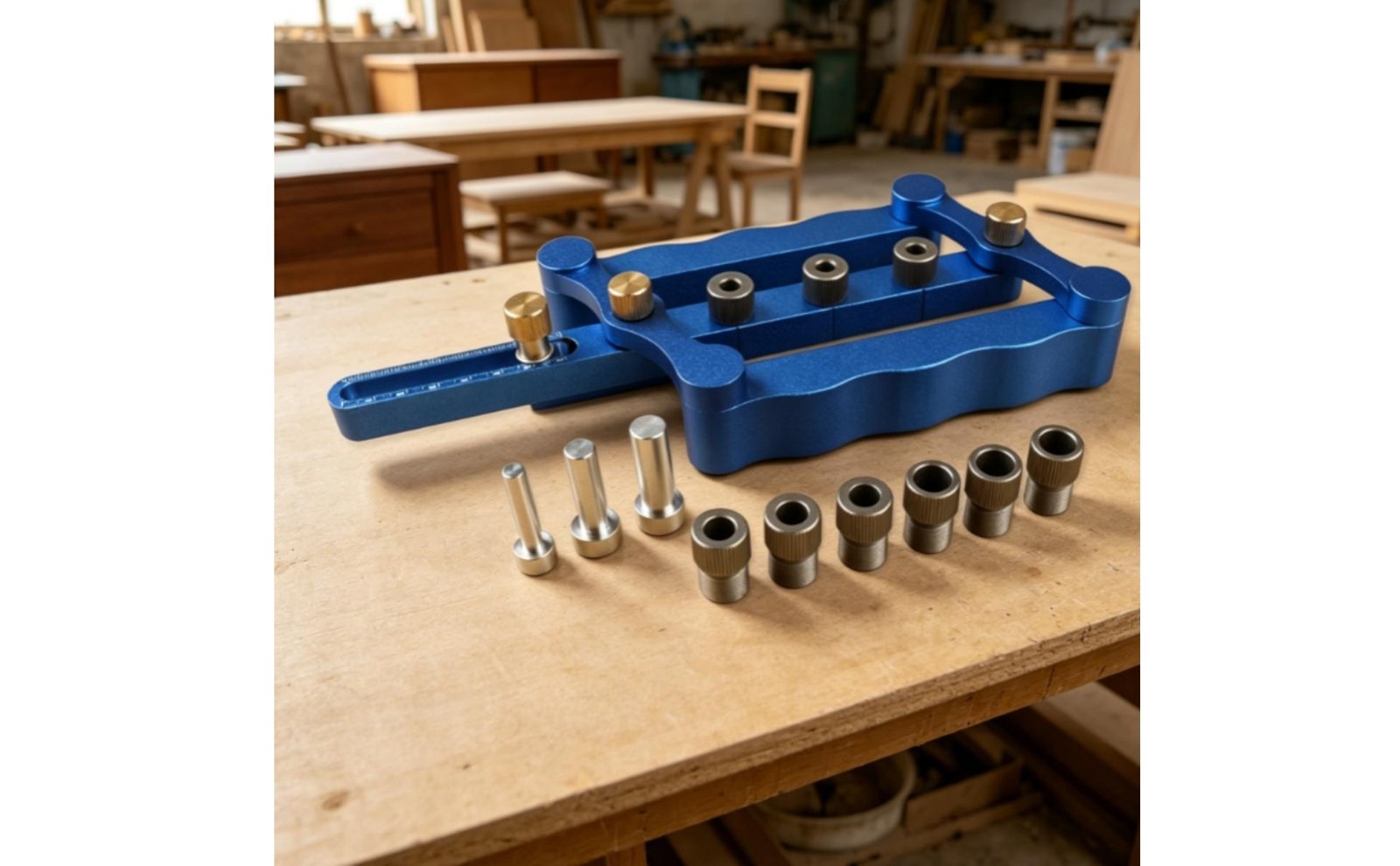

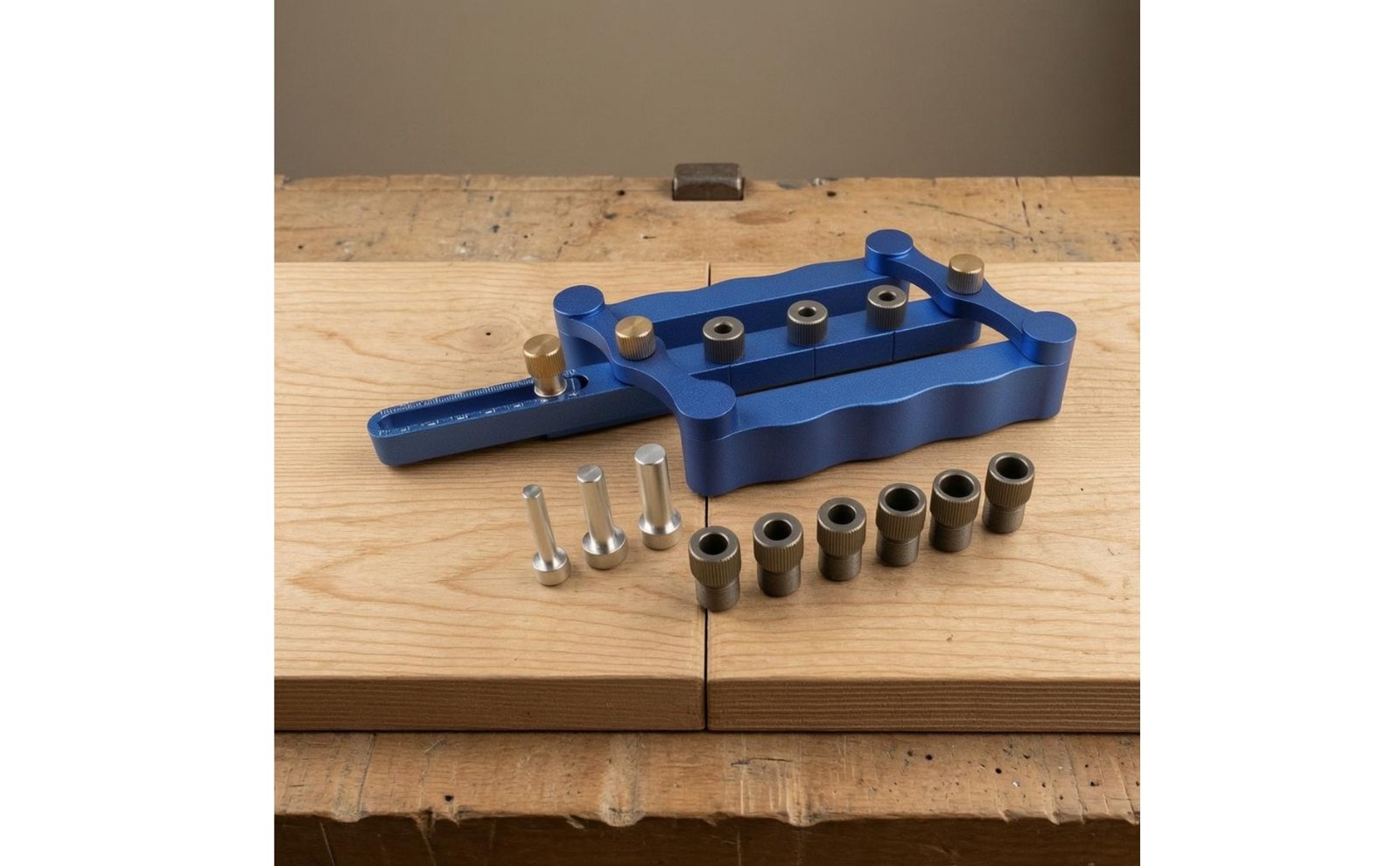

Material: Made from blue aluminum alloy, this carpentry tool combines a rigid rectangular frame with a long guide rail for stable, repeatable positioning during and joining work.
Function: As a Guide, it helps position holes accurately for straight hole tasks, supporting cleaner results when working on boards and related assemblies.
Features: The straight hole guide includes an built in positioning scale, adjustment knobs, and multiple threaded guide bushings in the center for controlled setup and hole guidance.

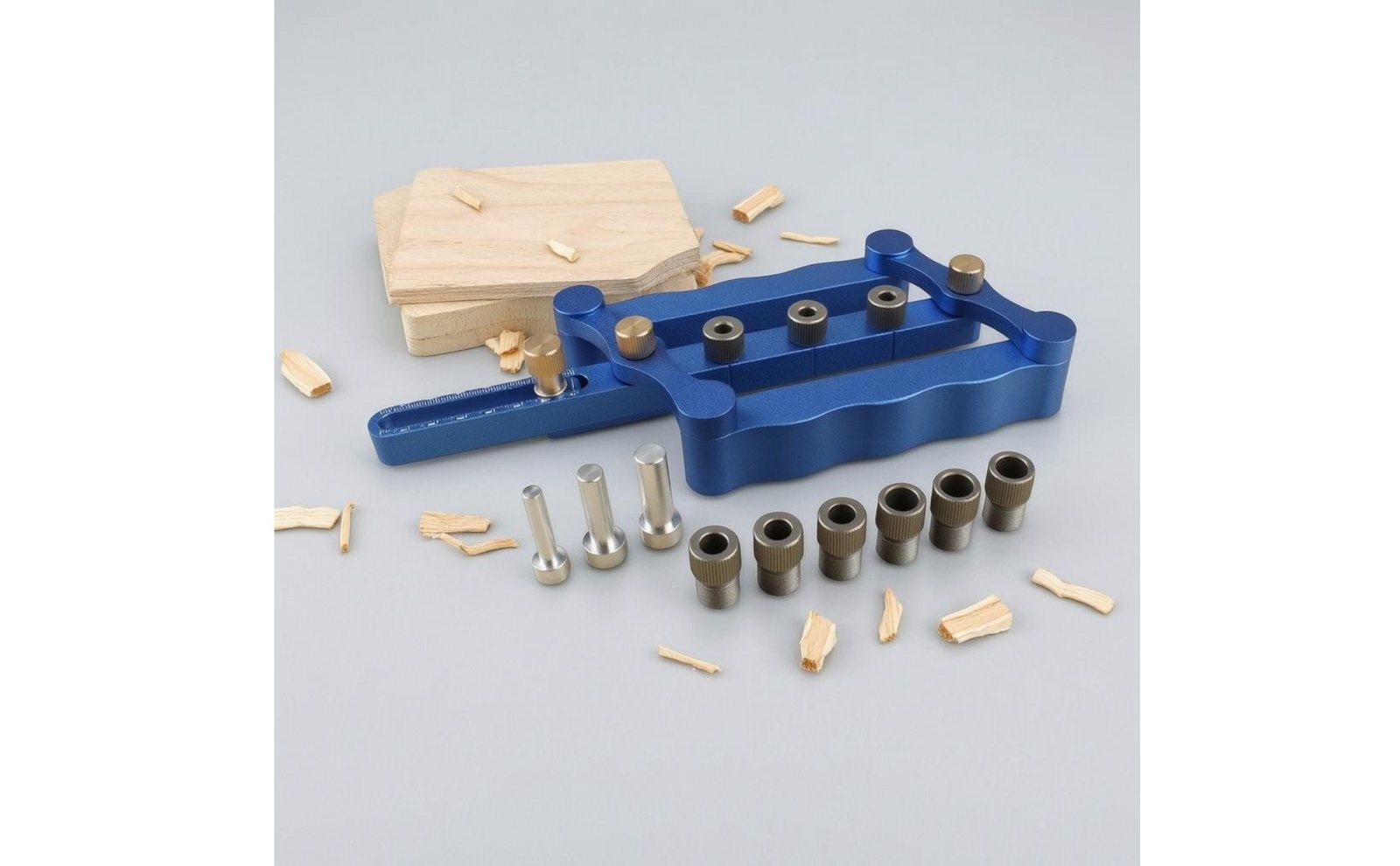

Accessories: This board joining jig comes with 3x6 mm drill sleeves, set of three 8mm mm drill sleeves, 3x 10 mm drill sleeves, and 6/8/10 mm locating pins for matching different needs.
Use: The guide rail jig is designed to support consistent alignment and hole placement, helping offset during repeated and board joining operations.
Built blue aluminum alloy carpentry tool, this straight hole guide combines a rectangular frame with a long guide rail to provide a stable setup for and joining tasks. The compact, structured body is designed to keep the workpiece aligned while the guide rail supports smoother positioning along. As a Guide, it is designed for straight hole workplace consistent alignment accuracy. The built in positioning scale and adjustment knobs make setup more controlled, while the threaded guide bushings in the center help direct the boring route for board joining and similar applications. This board joining jig also includes practical accessories that expand its use: 3x6 mm drill sleeves, set of three 8mm mm drill sleeves, 3x 10 mm drill sleeves, and 6/8/10 mm locating pins. Together, these parts offer more flexible setup for different hole sizes and repeated placement needs. In daily carpentry tasks, the guide rail jig is useful when you want cleaner hole placement, better repeatability, and less guesswork across multiple boards. It is suited to setups where accurate straight hole and consistent joining results are needed.
Option: 3-in-1 Professional
