Translucent Shoe Head Assembly
WM Type Shoe Head Assembly Right Angles Bracket Counterweight Guide Shoe Assembly Translucent
$43.44 Free shipping · tax calculated at checkout
Arrives in 12–22 days · free shipping, tracked
Total $43.44 · free shipping · sales tax calculated at checkout
In stock · leaves our partner warehouse within 4 business days
- Ships from our partner warehouse in ChinaFree to the US · arrives in 12–22 days
- 30-day returnsUnused items · see policy
- Secure checkout by StripeWe never see your card number
- Questions?Contact us · reply in 1–2 business days
- Package size
- 15 × 12 × 8 cm (5.9 × 4.7 × 3.1 in)
- Weight
- 1.73 kg (3.82 lb)
- Product size
- 11 × 10 × 6.5 cm (4.3 × 3.9 × 2.6 in)
- Material
- Metal, Plastic
- Product Type
- Elevator counterweight guide shoe assembly
- Structure
- Right-angle bracketed component
- Mounting
- Slotted mounting holes
- Fastener
- Bolted fastener visible
- Application
- Elevator guide-rail use
- Design
- Hollow-rail WM-type shoe head and liner assembly
- In the box
- Elevator Counterweight Guide Shoe ×1
- Category
- Garage & Ride
- Delivery
- Free standard shipping to the US, 12–22 days from order, shipped from our partner warehouse in China
- Returns
- 30-day returns on unused items
Item DCD-10001265978
About this item

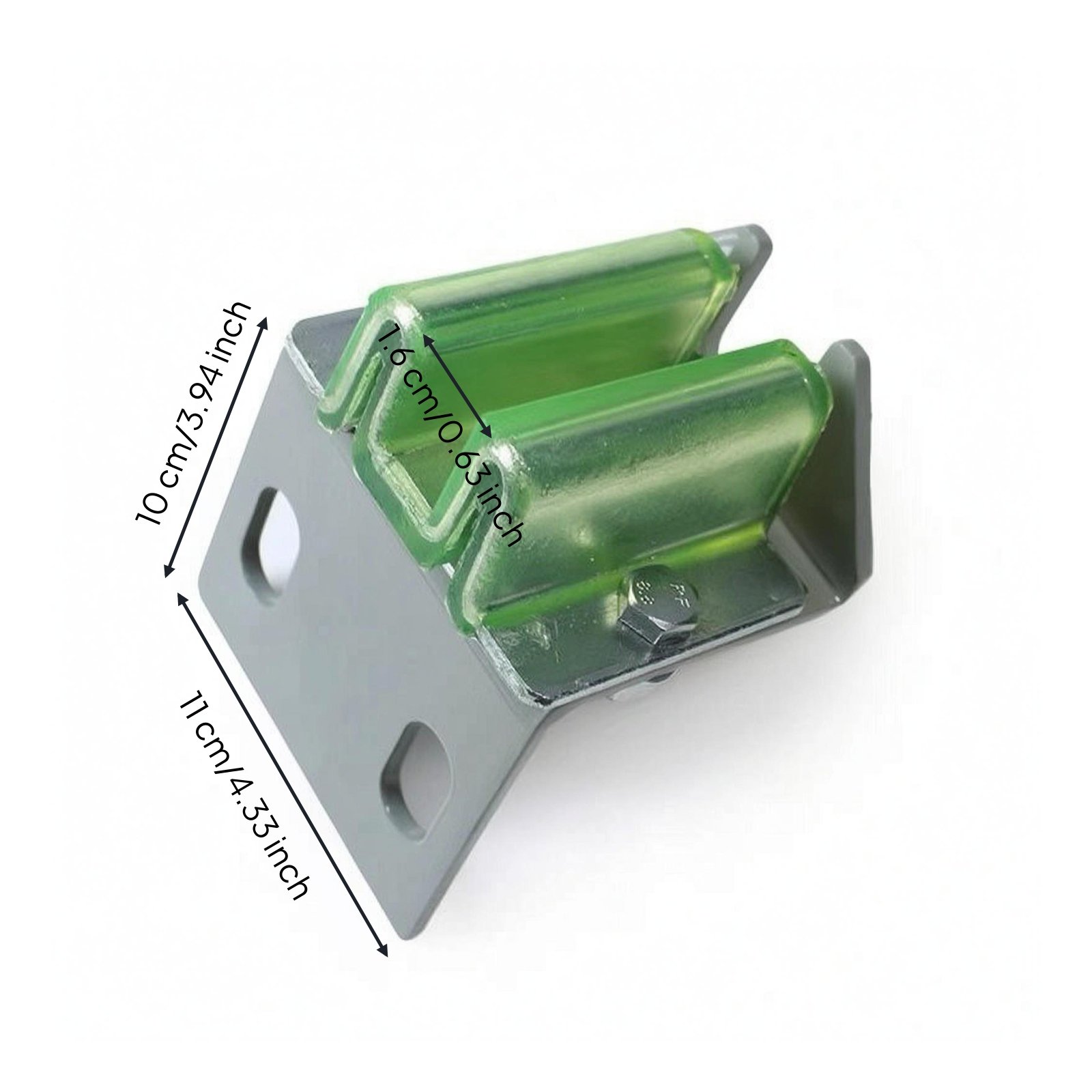

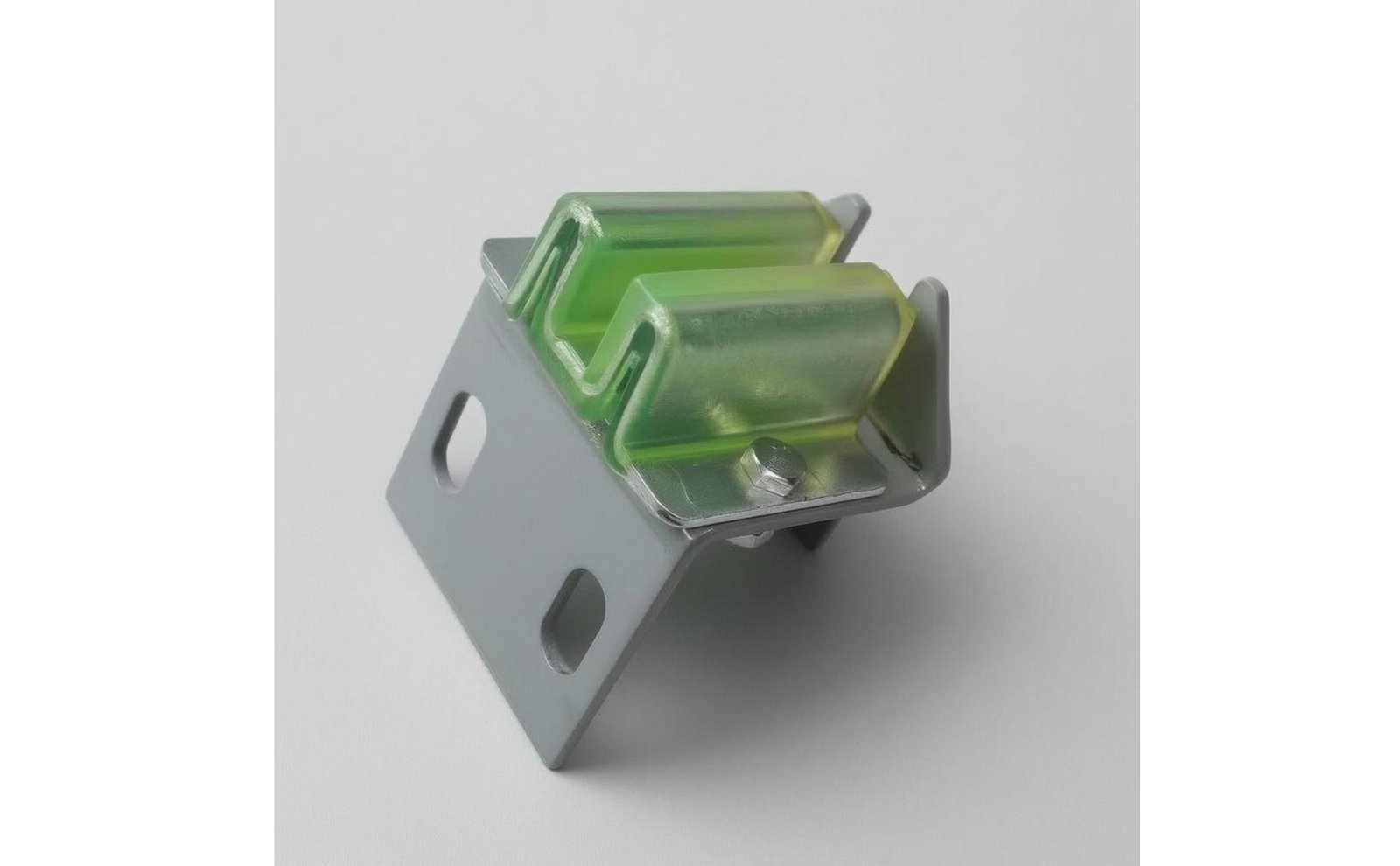

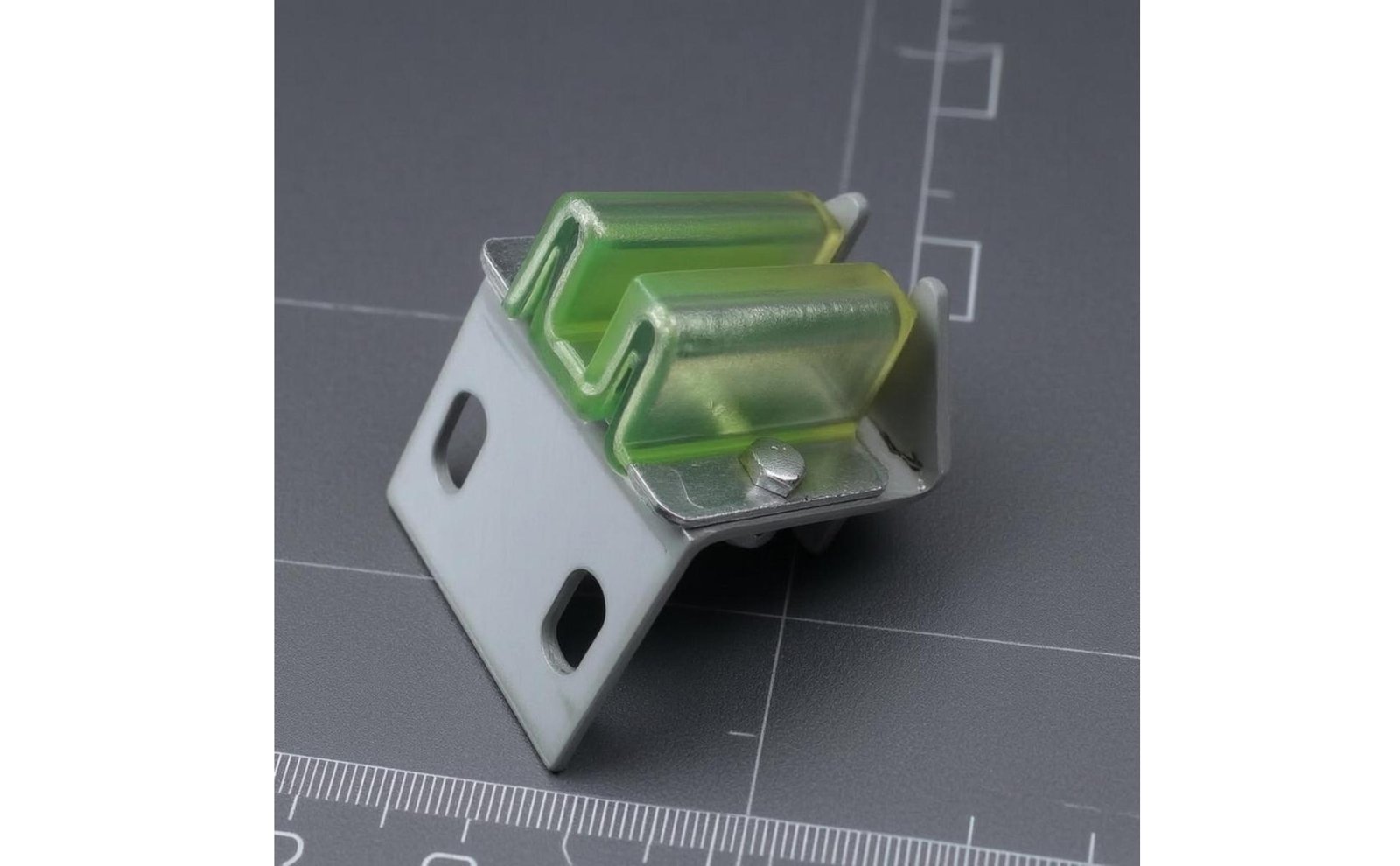

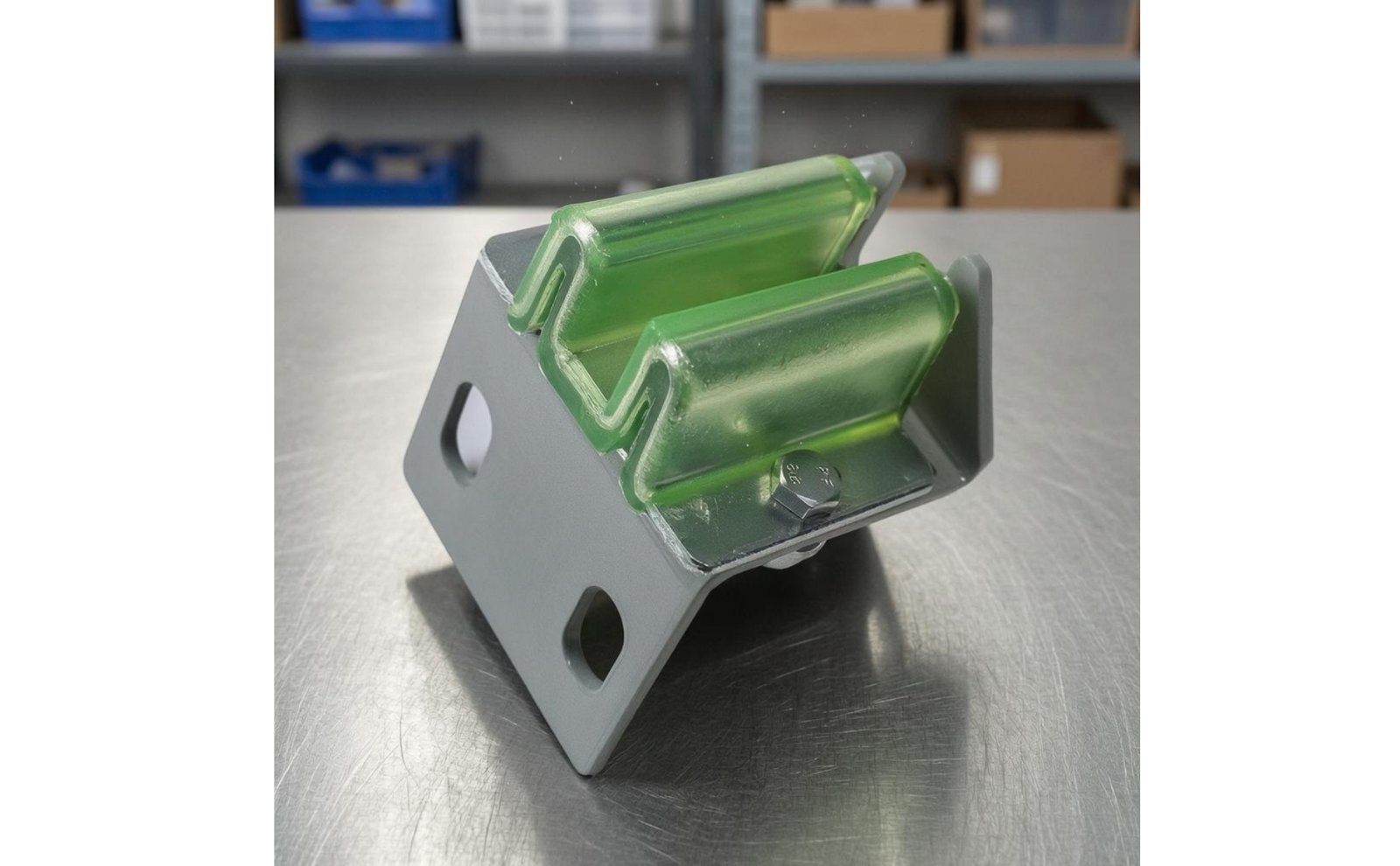

Construction: This industrial part combines a gray metal mounting bracket with a green translucent guide liner/block, forming a compact Right Angles guide shoe structure for elevator rail applications.
Function: Designed as an elevator guide shoe assembly, it helps the counterweight move along the guide rail with controlled guidance and stable touch in use.
Design: The WM type shoe head assembly uses a hollow rail compatible layout with slotted mounting holes and a visible bolted fastener for straightforward positioning and attachment.
Features: This guide shoe includes a Right Angles bracketed body and translucent liner section, creating a clear, compact counterweight guide shoe assembly with visible construction specifications
Purpose: Built for guide rail use, this industrial part supports the intended guidance effect of a WM type shoe head assembly by helping maintain aligned motion along the rail.
This elevator counterweight guide shoe assembly is a compact industrial part built around a gray metal mounting bracket green translucent translucent guide liner/block. Its Right Angles bracketed form keeps the structure simple and direct, while the visible fastener and slotted mounting holes show how the component is meant to be fastened. As an elevator guide shoe assembly, it is intended for guide rail use and functions as a counterweight guide shoe assembly, helping the counterweight glide with controlled guidance along the rail. The WM type shoe head assembly layout is designed for hollow rail compatibility, making the part suited to setups where a compact, bracketed shoe head and liner are needed. In practical use, this kind of component supports stable alignment and helps keep motion organized during elevator
Option: 16MM Hole Pitch 70MM
