1/10 RC Chassis Setup Gauge

About this item

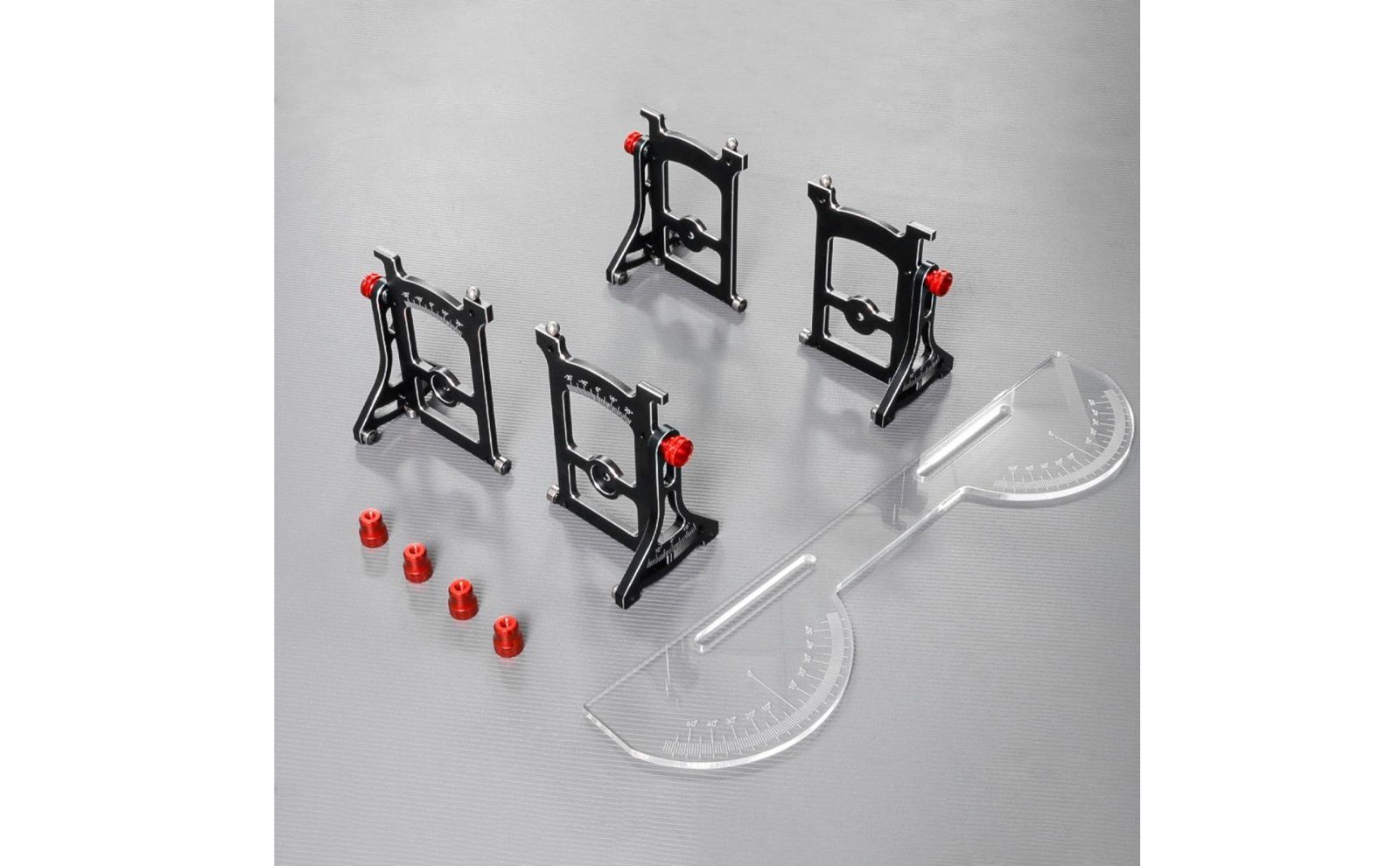

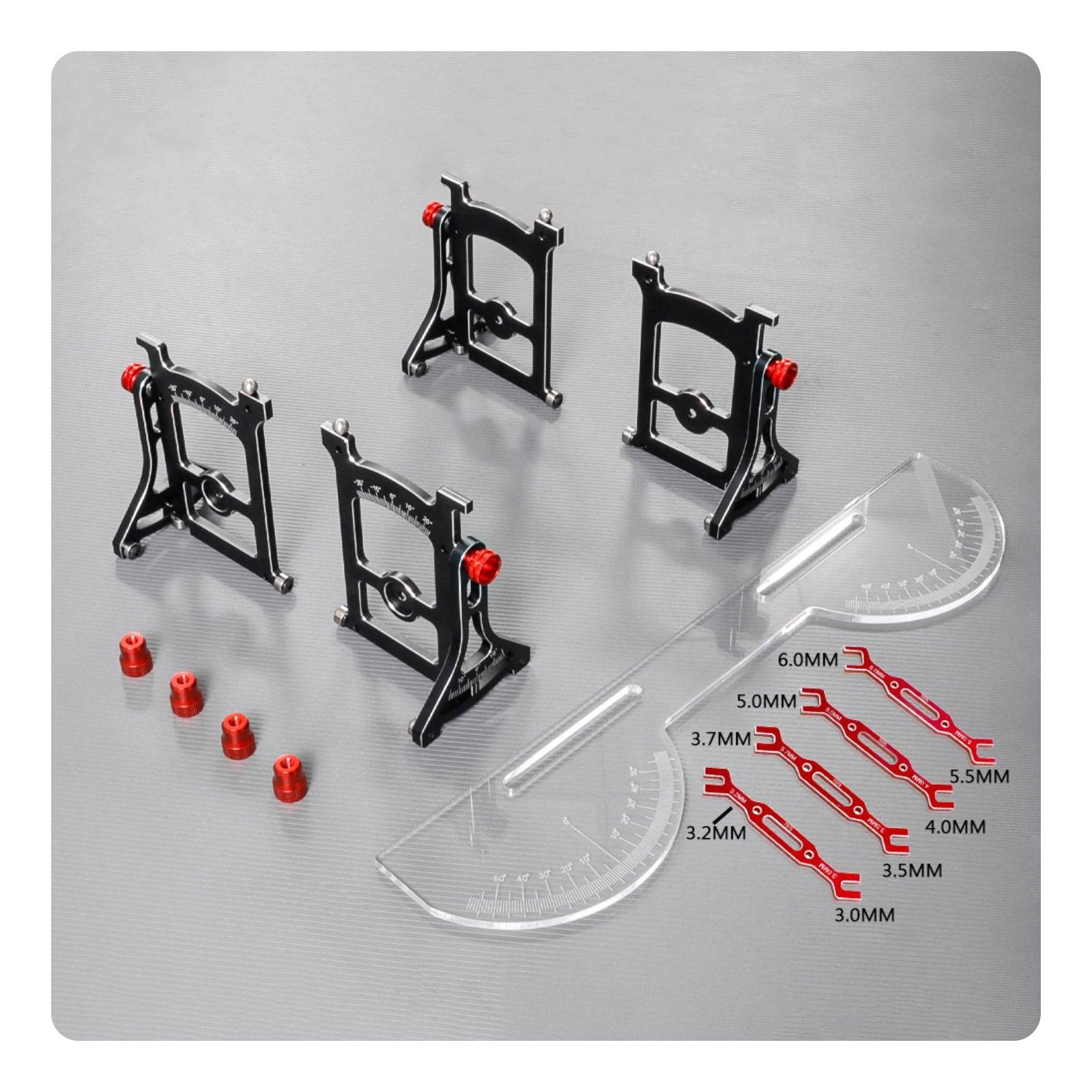

Product Type: This 1/10 Rc Car Chassis Setup System Measuring Tool is a angle-measuring caster steering axis gauge designed as a compact mechanical frame car setup and alignment work, combining bracket-style stands with clear measuring plates for practical workshop use.

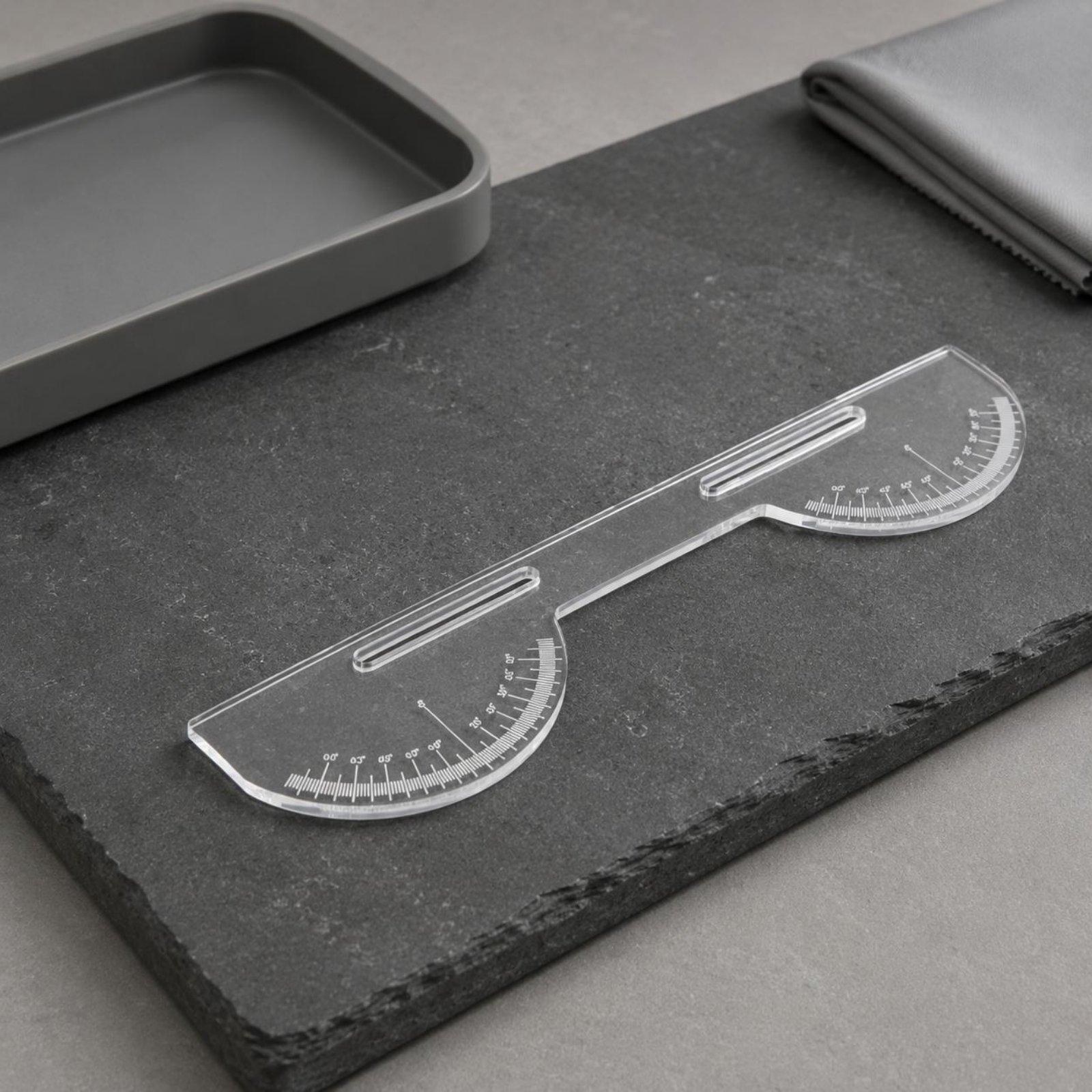

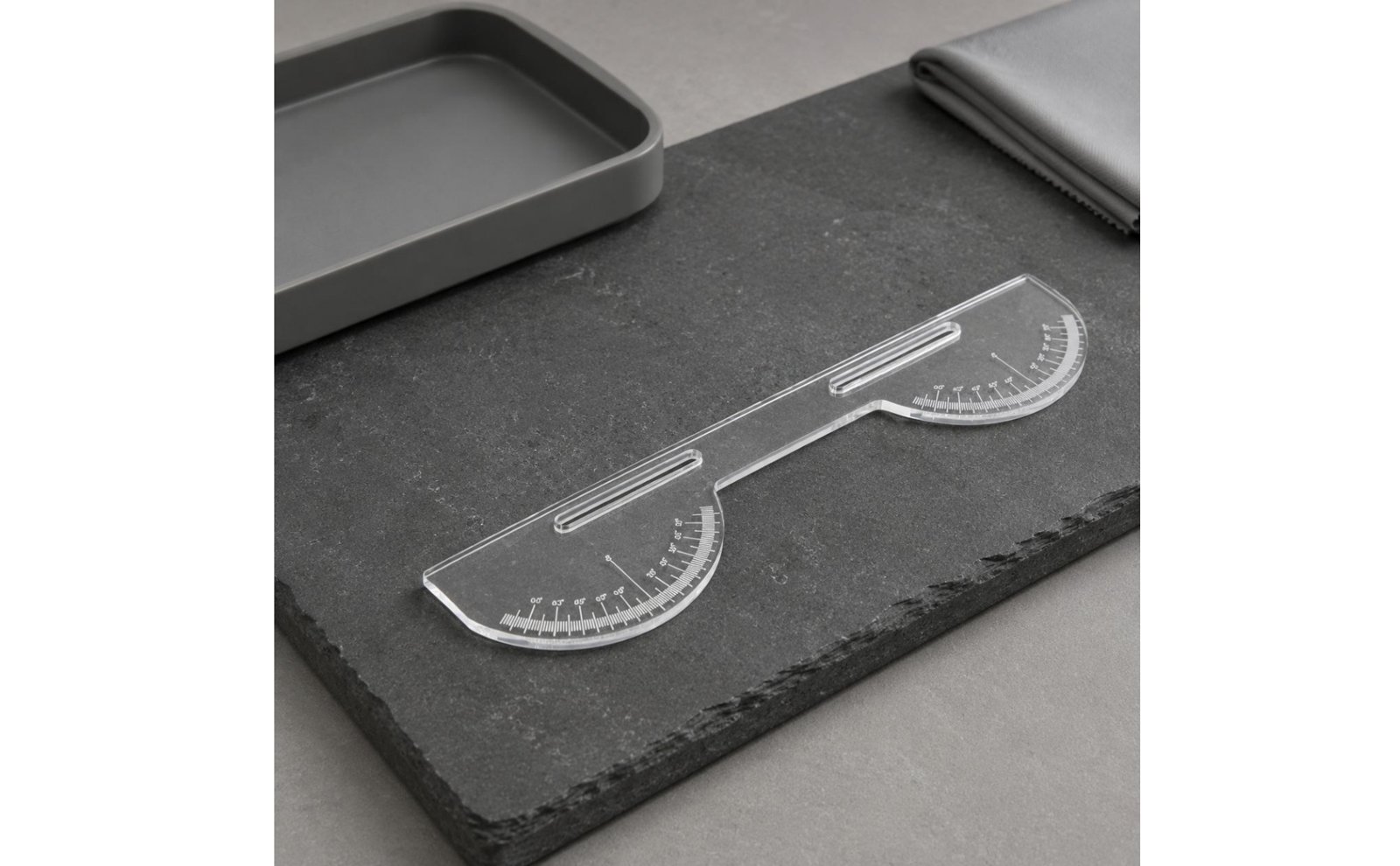

Alignment Function: As a wheel alignment tool and alignment gauge, it helps measure setup angles with two transparent semicircular plates printed with degree markings, giving a clear view of angle positions during adjustment.
Construction: Built with metal brackets and clear acrylic plates, this car setup gauge pairs engraved scale markings on the metal parts with printed degree measurement markings the plates for easy reading and repeatable positioning.
Adjustment Design: Four matching adjustment knobs support stable setup changes, while the frame structure, slot openings, and measured spans are shaped for controlled fitting and alignment checks.
Measurement Purpose: This angle-measuring gauge tool is intended to support accurate wheel setup and angle verification, with labeled dimensions including 315 mm overall length, 94.5 mm height, and 201.9 mm inner span for reference during use.

This automotive tool is a angle-measuring caster steering axis gauge built car setup and alignment tasks. Its compact mechanical frame brings together four bracket-style stands, two transparent acrylic angle plates, and four matching adjustment knobs so the tool is ready for practical wheel alignment work. As a wheel alignment tool and alignment gauge, it uses transparent semicircular plates printed with degree markings to make angle reading straightforward. The black metal parts also carry engraved scale markings, which adds another layer of visual reference when checking positions and making adjustments. Transparent acrylic plates keep the layout easy to see, while the bracket construction helps the gauge hold a defined shape during setup. That makes it well suited to workshop routines where repeated checks and small corrections are importantWith labeled dimensions such as 315 mm overall length, 94.5 mm height, and 201.9 mm inner span, this car setup gauge provides a compact format that is easy to place and reference during use. Additional measurements including the 6 mm slot width and 4.1 mm hole diameter further define the fitting points for controlled alignment handling. Used as a angle-measuring gauge tool, it supports angle verification and setup work in a way that feels direct and organized, whether the task starting positioning or adjusttuning a wheel arrangement.

Option: Red SET
