Aluminum Profile Drill Guide
Aluminum Profile Jig High Precision Countersink Drill Guide Full-Metal Extrusion End Guide for DIY Enthusiasts, Hobbyists, Prototyping
$44.29 Free shipping · tax calculated at checkout
Arrives in 12–22 days · free shipping, tracked
Total $44.29 · free shipping · sales tax calculated at checkout
In stock · leaves our partner warehouse within 4 business days
- Ships from our partner warehouse in ChinaFree to the US · arrives in 12–22 days
- 30-day returnsUnused items · see policy
- Secure checkout by StripeWe never see your card number
- Questions?Contact us · reply in 1–2 business days
- Package size
- 19.5 × 18 × 6.7 cm (7.7 × 7.1 × 2.6 in)
- Weight
- 0.65 kg (1.43 lb)
- Product size
- 10.7 × 5.2 × 7 cm (4.2 × 2.0 × 2.8 in)
- Material
- Aluminum Alloy, other
- Category
- Sewing & Crafts
- Delivery
- Free standard shipping to the US, 12–22 days from order, shipped from our partner warehouse in China
- Returns
- 30-day returns on unused items
Item DCD-10001034528
About this item

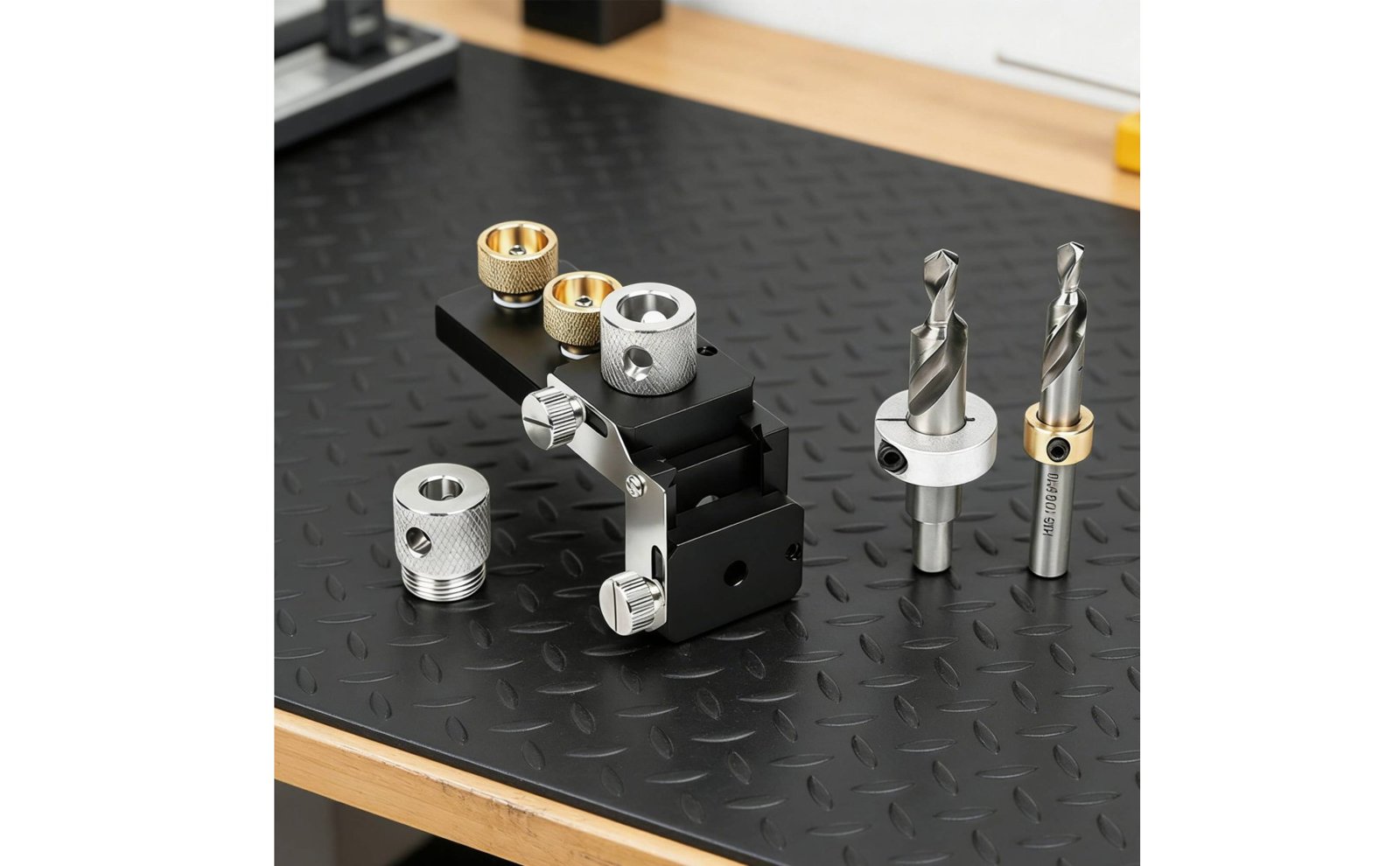

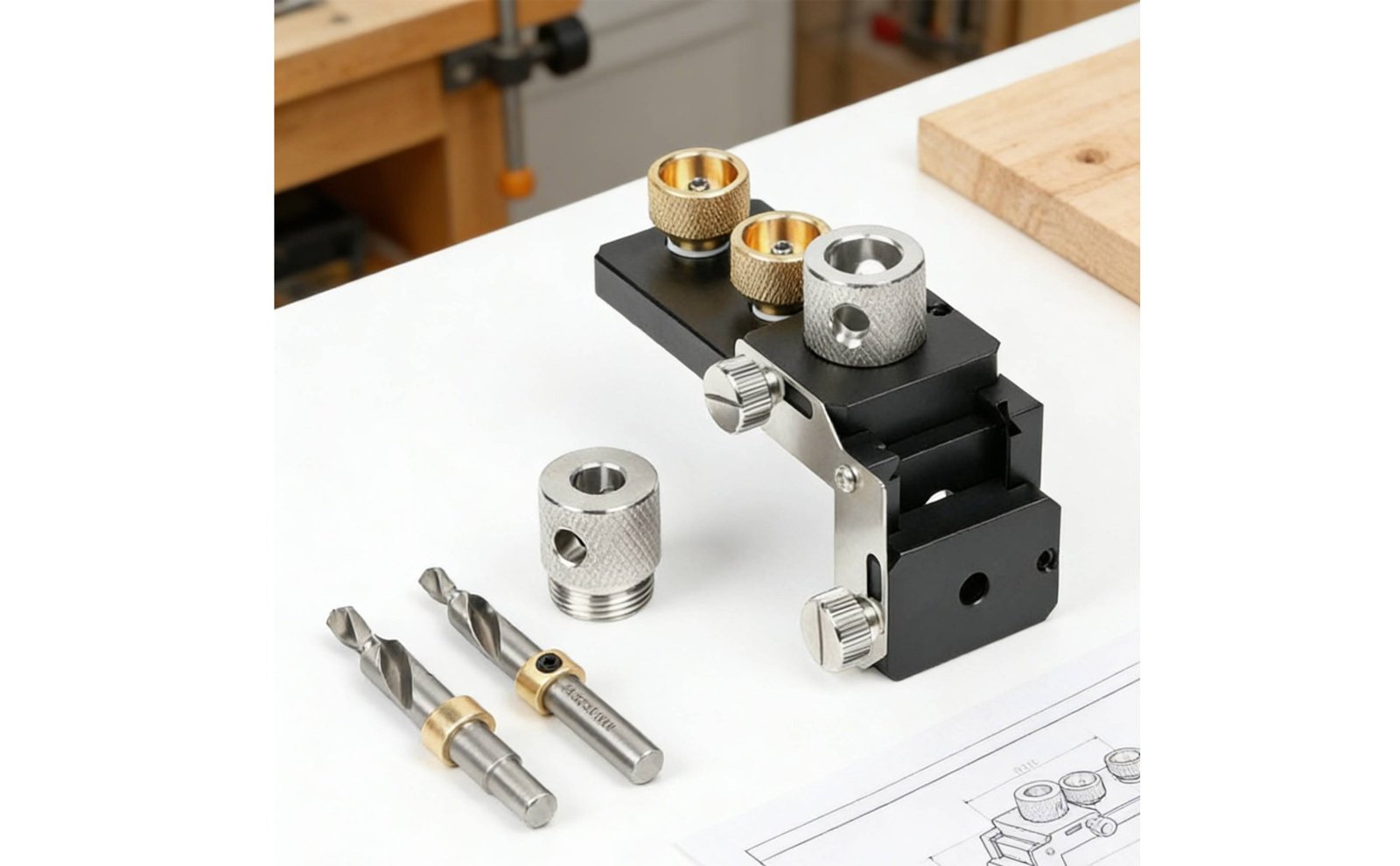

Premium Construction: This full-metal aluminum profile jig is crafted from CNC-machined aluminum alloy with an anodized finish for maximum durability in any workshop tool collection.
Precision Alignment: Designed as a high-accuracy guide, it features clear scale markings for 20, 30, and 40mm series extrusions to ensure centered holes every time.
Versatile: The built-in jig supports M6 and M8 thread sizes, making it an essential companion for creating secure threaded connections in structural
Multi-Series Compatibility: This specific aluminum profile jig is fully adjustable to fit 2020, 3030, and 4040 extrusion profiles, providing a versatile tool for L-shaped splicing.
Professional Results: Use this extrusion end guide to achieve clean countersunk holes and straight threads for high-end prototyping and DIY furniture projects.

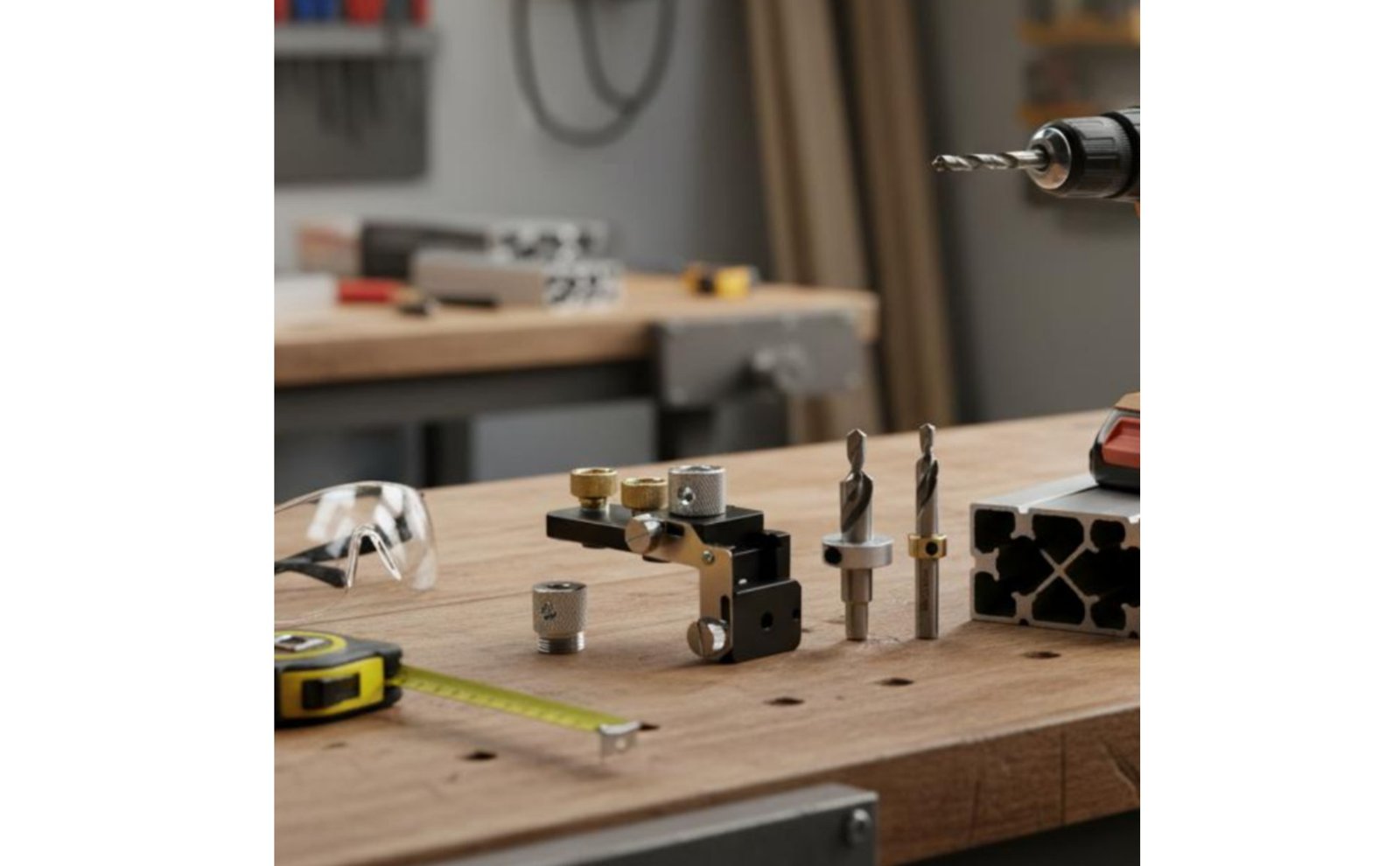

Elevate your craftsmanship with the Ganwei Aluminum Profile Jig, a professional-grade workshop tool designed for those who require precision. Whether you are building a custom 3D printer frame, sim rig, or industrial shelving, this guide eliminates the guesswork of manual alignment. Crafted from high-quality CNC aluminum alloy with a sleek black anodized finish, it provides a stable and wear-resistant base for all your metalworking needs.
Imagine the ease of assembling complex structures when every hole aligns. This aluminum profile jig features dedicated settings for 20, 30, and 40mm series extrusions, allowing you to switch between different project measurements seamlessly. The included M6 and M8 countersink ensure your fasteners sit flush against the surface for a clean, professional look. As a comprehensive jig, it aligners your straight into the end face of the extrusion slanted threads that can ruin expensive materials.

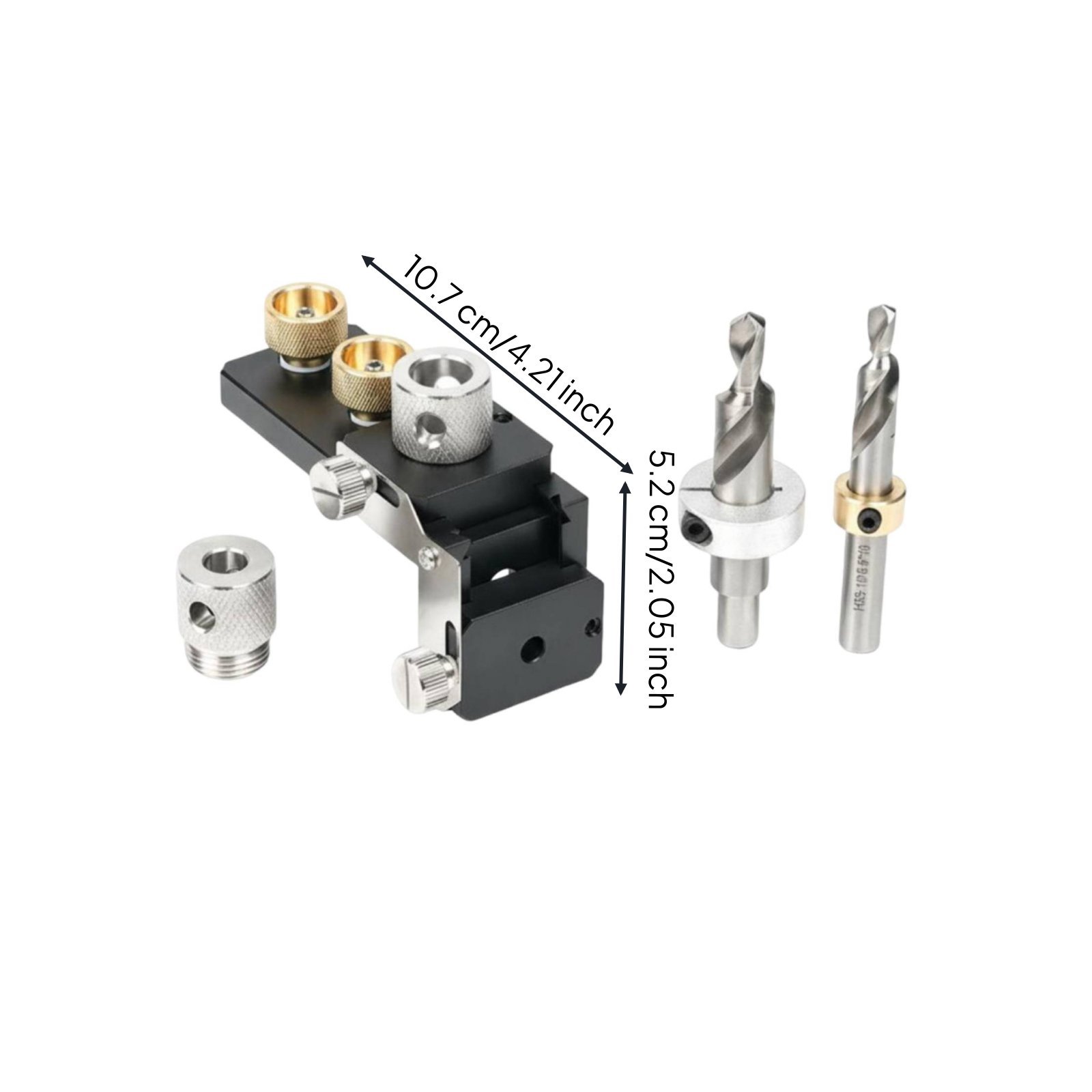

This extrusion end guide is not just about accuracy; it is about saving time and reducing waste. The compact 107x52x70mm design fits comfortably in your hand or tool chest, while the intuitive scale markings make setup a effortlessly. Simply clamp the jig to your profile, choose the appropriate guide sleeve, and drill with confidence. It is the optimal solution for DIY enthusiasts and pros alike who want to achieve factory level results in their own garage or studio.
Option: Mg0-000-0148e
